Outrigger Minimum Extension

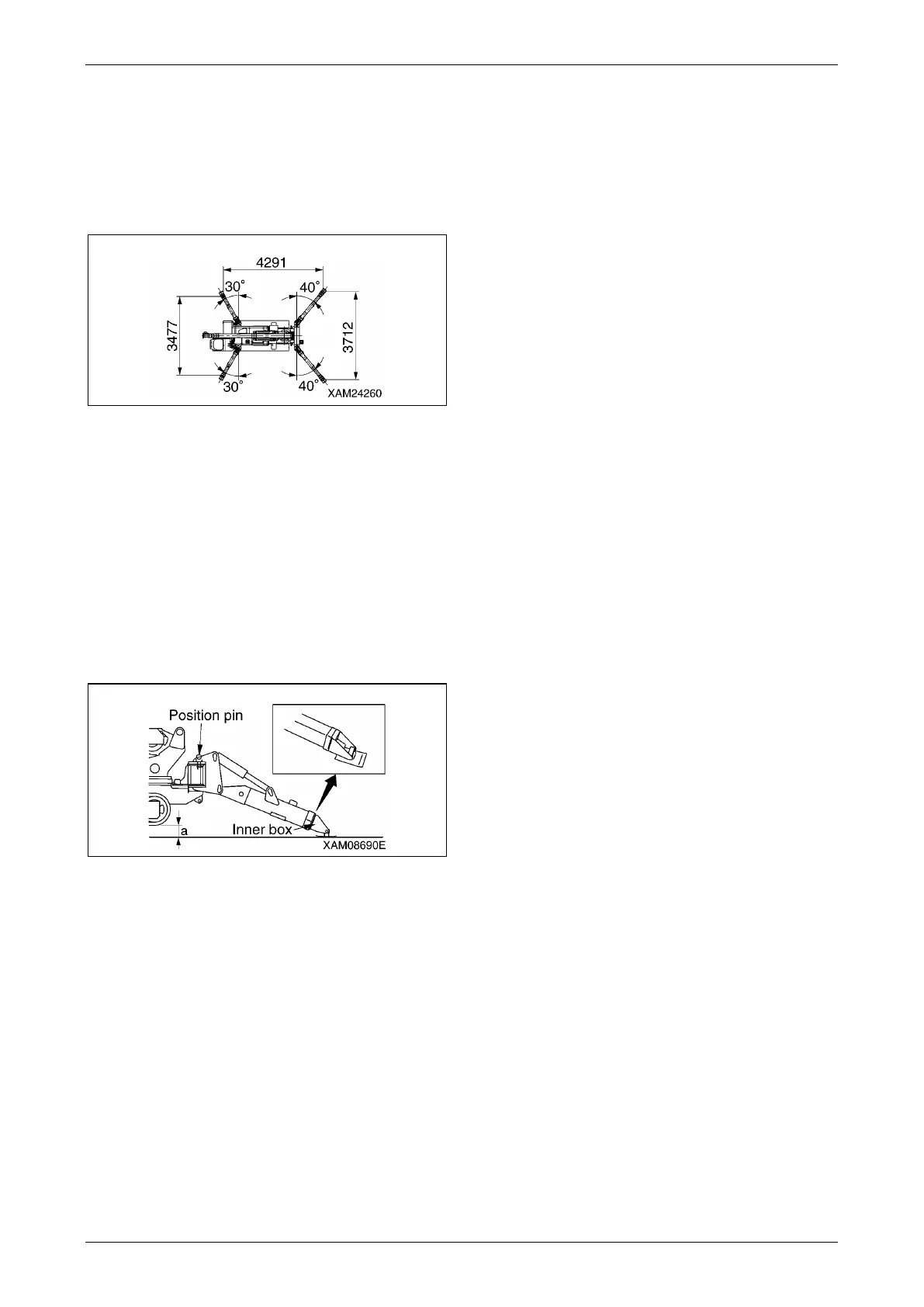

The figure shown at below represents the
condition "When the crane is used with the
outriggers extended at the minimum" in the rated
total load chart.
Fig. 4-113
NOTICE: Outrigger minimum extension is defined
as that:
1. The outrigger is set at the positioning pin
position (40° front, 30° back).
2. The inner box of all the outriggers is minimised.
3. All the outriggers are placed on a level surface.
4. Approx. 50mm is assured for clearance "a"
(between the outrigger bottom and crawler
bottom) in the figure at below.
Fig. 4-114
NOTICE: If even a group of outriggers is retracted
to the minimum point, all the outriggers are
deemed to be extended at the minimum.
