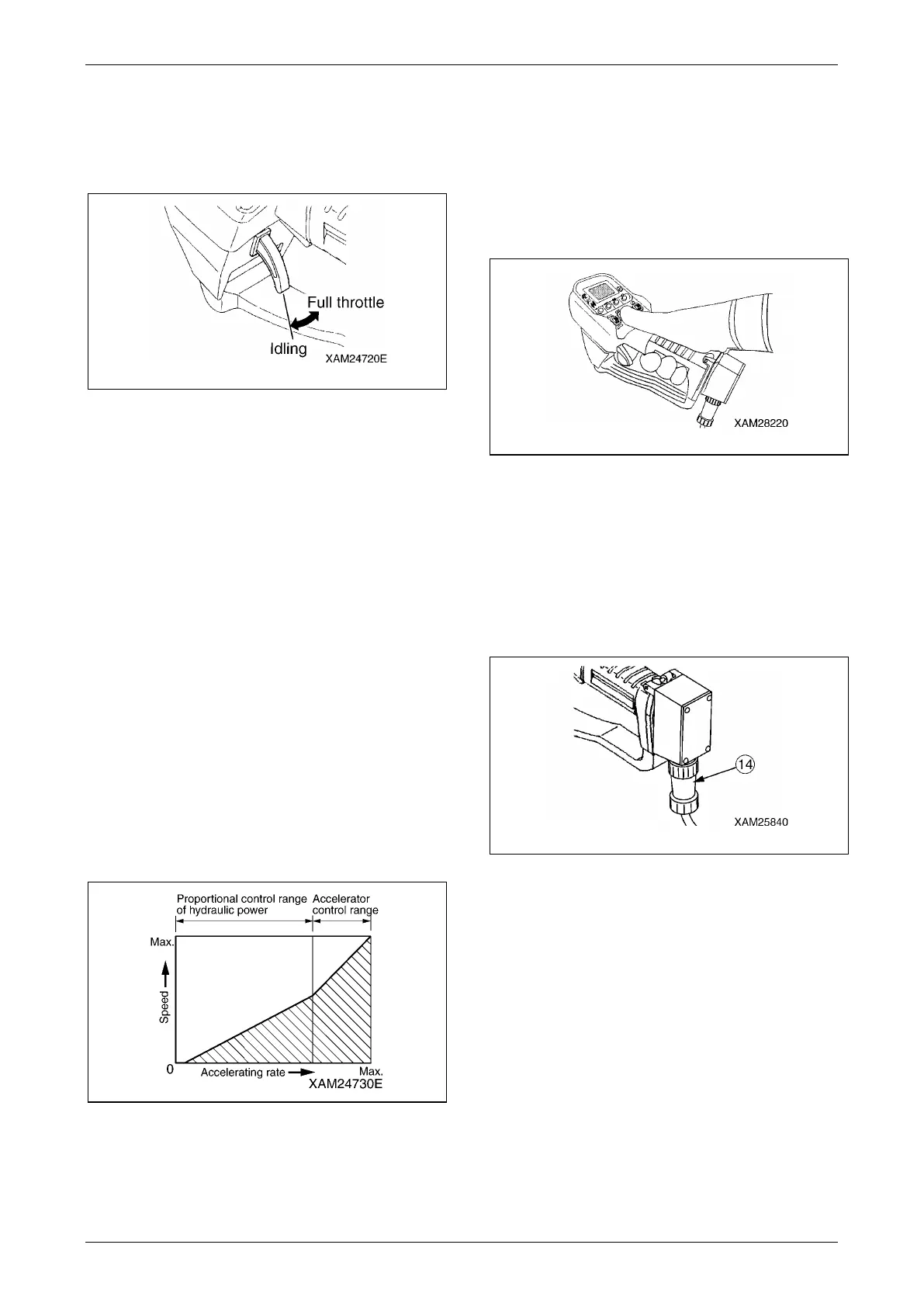

Accelerator Lever
The Accelerator lever controls the flow rate of
the control valves and the engine speed or
output.
Fig. 4-224
• Low idling: Release your finger from the
Accelerator lever.
• Full throttle: Squeeze the accelerator lever to
the full.
NOTICE:
• The Accelerator lever itself cannot control
either flow rate of the control valves or the
engine speed when it is manipulated alone.
In the condition that any of the other operation
levers are also used, the Accelerator lever
launches specified operation of the Crane in
the idling state of the engine, when it is
manipulated, then, the engine speeds up by
further manipulation of it; the crane operation
turns to be faster, accordingly.
• The Accelerator lever does not control
outriggers.
• The acceleration rate is always indicated in the
right part of the LCD screen during crane
operations. (See the figure.)
Fig. 4-225
Grip
The Transmitter is designed for one hand
controls in general. Levers and buttons can be
manipulated by your thumb, while the
accelerator lever can be triggered by your
forefinger. Other fingers should grab the grip to
hold the Transmitter.
Fig. 4-226
Connection Cable
The connection cable is a cable between the
Transmitter and Receiver.
Before and after the operation, always check this
connection cable for any crack or damage, or
bent. In addition, check the receptacle for any
damage.
Fig. 4-227
