Engine Start and Reset Procedure
Engine Start Procedure
CAUTION: For the practice of the engine
start from the Transmitter Start/Reset button,
the Starter switch of the Crane must be in the
ON position.
Otherwise, where the Starter switch is in
OFF position, the engine will not start by that
Start/Reset button.
When it is required to start the engine from the
Transmitter, push the Start/Reset button.
The engine starts.

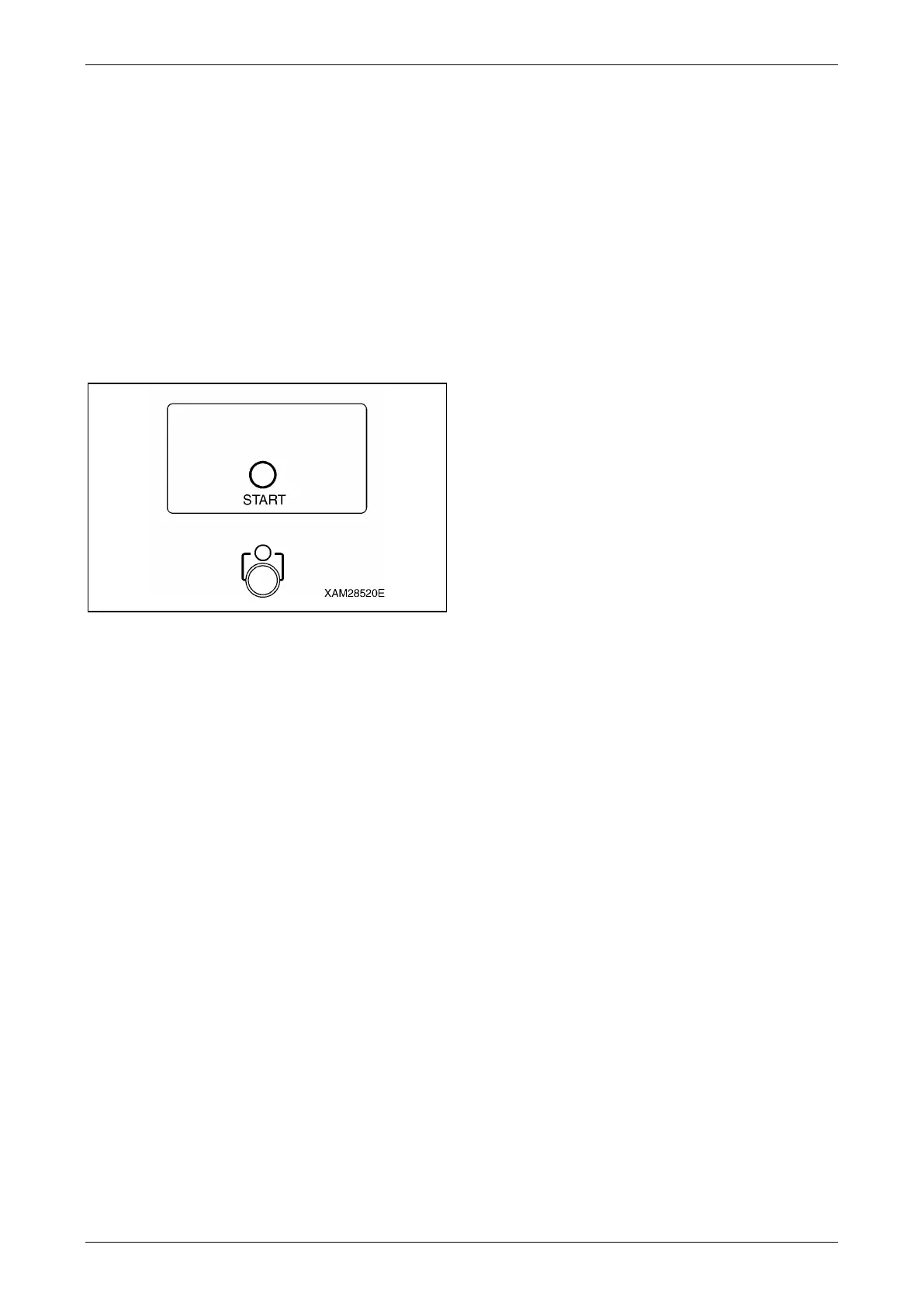

Fig. 4-349
Reset Procedure
To release the emergency stop equipment or
abnormal signal detector, push the Start/Reset
button.
Power of the Receiver will be reset.
NOTICE:
• While the engine runs, the engine starter will
not work even though the Start/Reset button is
used.
• When the Start/Reset button is used, push the
Power switch of the Transmitter to turn ON it,
beforehand.
• When the Start/Reset button is pushed, the
abnormal signal detector circuit starts working.
Wait for 3 to 4 seconds until it completes.
Checking after Crane Operation
WARNING!
• When the operation of the Crane is finished,
always turn OFF the Transmitter and
Receiver power.
• In no occasions except the Crane
operations, power of the Transmitter shall
not be turned ON.
That may cause an un-expected motion of
the Crane and result a serious hazard,
such that the Crane hit the other person or
any object, or the Crane tips.
• When it is required to turn ON the
Transmitter for the purpose of inspection
or such, ensure first that the engine is
standstill, then shut down the Receiver by
turning OFF its main switch.
1. Enter into the "CRANE MODE" of the
Transmitter operation mode.
2. Use the operation levers and retract the
boom to its shortest condition and lower it to
the base position, then stow the hook.
3. Enter into the "OUTRIGGER MODE" of the
Transmitter operation mode.
4. Use the operation levers and stow all the
outriggers so that the Crane is configured to
the travelling mode.
5. Stop the engine and turn OFF the
Transmitter power.
6. Shut down the power of the Receiver by
turning its Main switch to the OFF position.
7. Maintain the Transmitter and Receiver as
follows:
(1) Check operation levers and the
Accelerator lever for any faults.
(2) Remove oil or other soil by a clean cloth,
if any.
(3) Repair all the cracks or damages without
fail, if any.
8. Put the transmitter into the accessory
storage case and keep it in the dry and cool
place where the wind and rain or direct sun
ray is sheltered.
