Section 4 – REMOTE CONTROL SYSTEM COMPONENTS Mini-Crawler Crane M A E D A
4-82 3/2019 MC305C-3

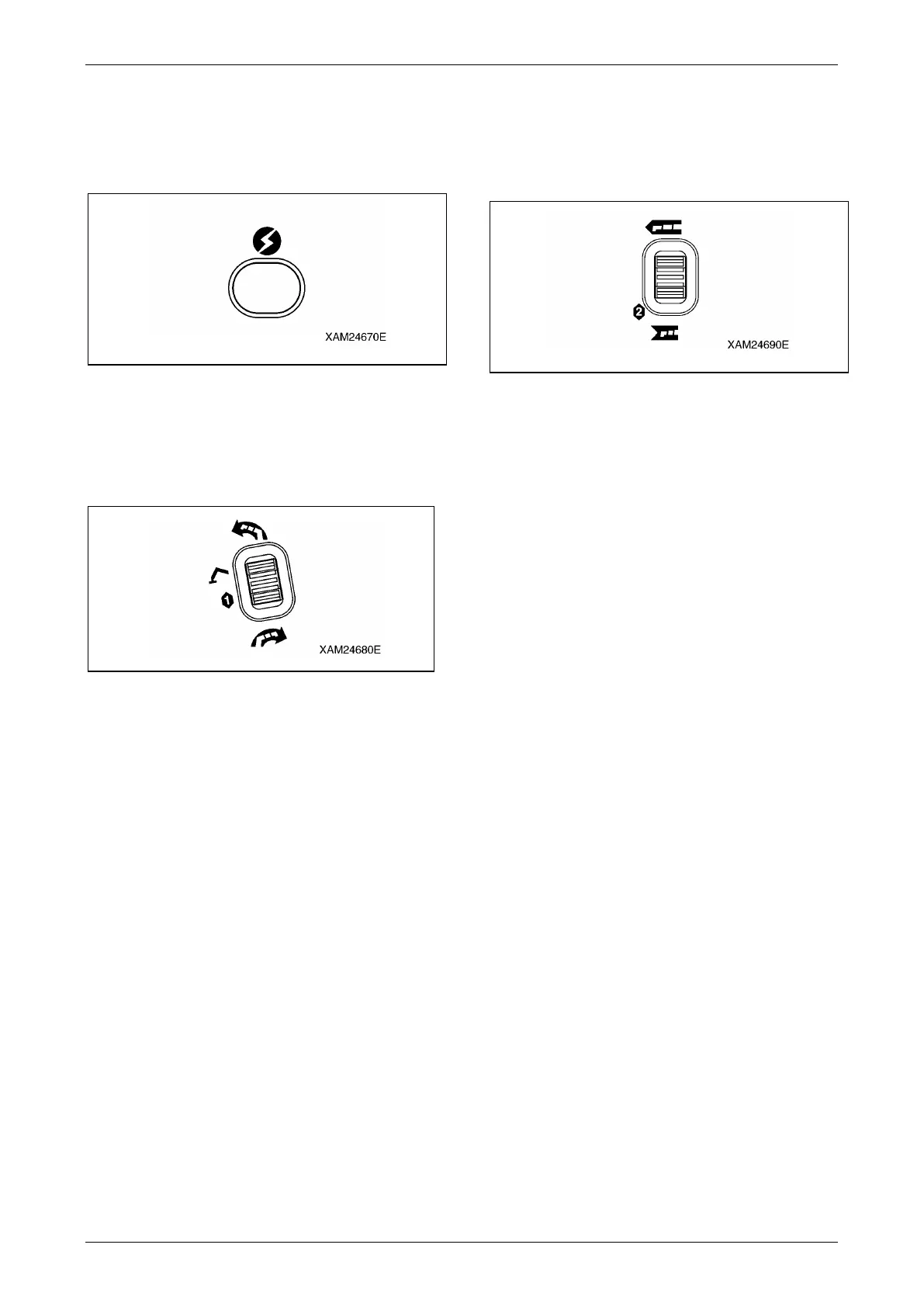

Power Switch
To push this button switches ON and OFF the
power of the Transmitter. Each push will turn ON
or OFF alternately.
Fig. 4-219
Slewing/No.1 Outrigger Operation
Lever
This operation lever functions in two ways as
below:
Fig. 4-220
1. In the CRANE MODE, this lever controls
slew of the Crane structure:
• Counterclockwise (left): Push the upper
end of the lever.
• Neutral: Release your finger
from the lever.
• Clockwise (right): Push the lower end of
the lever.
2. In the OUTRIGGER MODE, this lever
controls extension (installation) and
retraction (stowing) of either only No.1 or all
of the outriggers at once:
• Retraction (stowing): Push the upper end
of the lever.
• Neutral: Release your finger
from the lever.
• Extension (installation): Push the lower
end of the lever.
Boom Telescoping/No.2 Outrigger
Operation Lever
This operation lever functions in two ways as
below:
Fig. 4-221
1. In the CRANE MODE, this lever controls the
telescopic boom length:
• Boom extension: Push the upper end of
the lever.
• Neutral: Release your finger
from the lever.
• Boom retraction: Push the lower end of
the lever.
2. In the OUTRIGGER MODE, this lever
controls extension (installation) and
retraction (stowing) of either only No.2 or all
of the outriggers at once:
• Retraction (stowing): Push the upper end
of the lever.
• Neutral: Release your finger
from the lever.
• Extension (installation): Push the lower
end of the lever.
