OUTRIGGER COMPONENTS

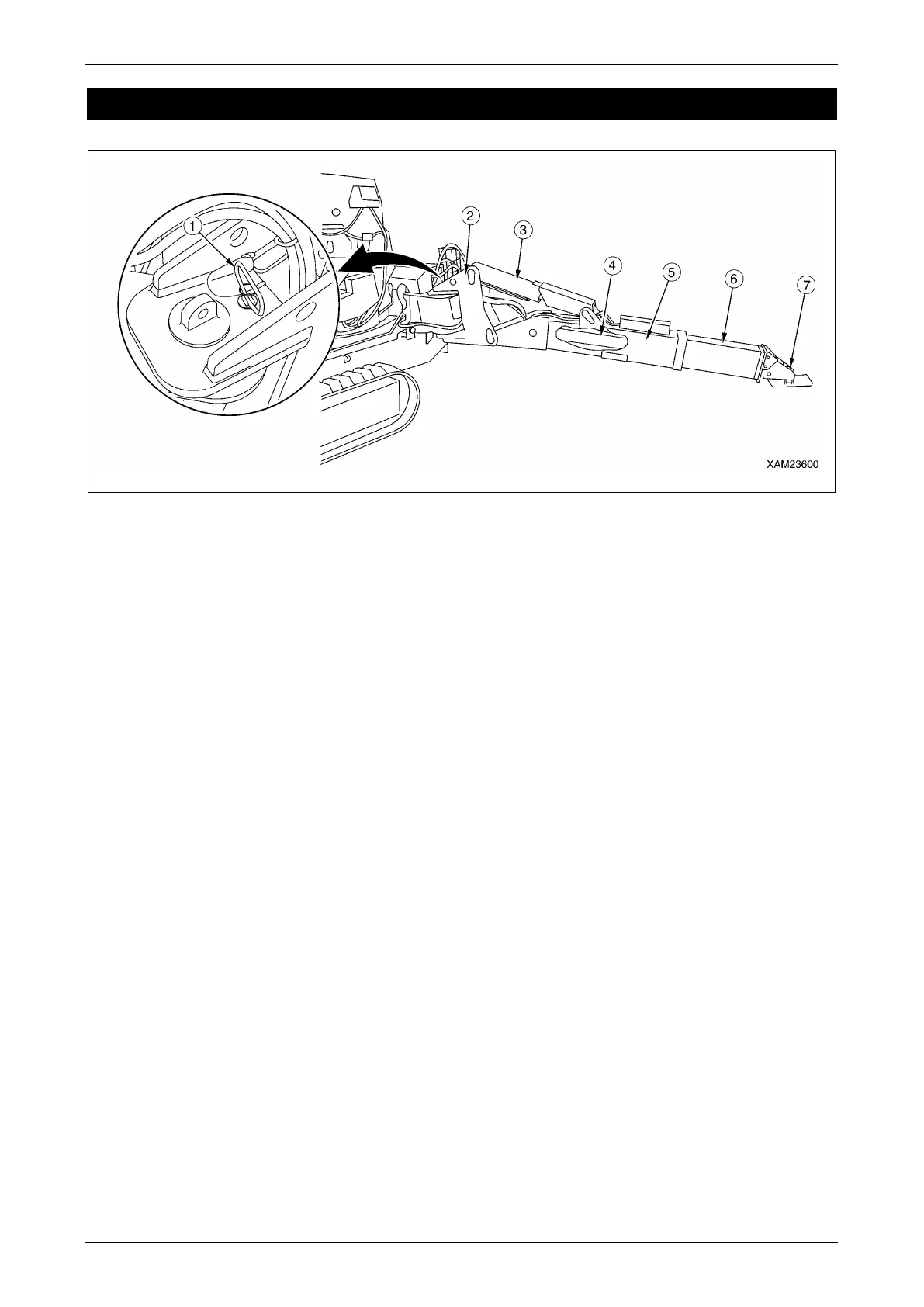

Fig. 4-67
1 - Position pin
2 - Rotary
3 - Outrigger setting cylinder
4 - Outrigger extension cylinder
5 - Outer box
6 - Inner box
7 - Rigor adapter (Tray)
