Maeda MC305C-3 - Power Unit; Power Supply Box

M A E D A Mini-Crawler Crane Section 4 – ELECTRIC MOTOR (OPTION)
3/2019 MC305C-3 4-119

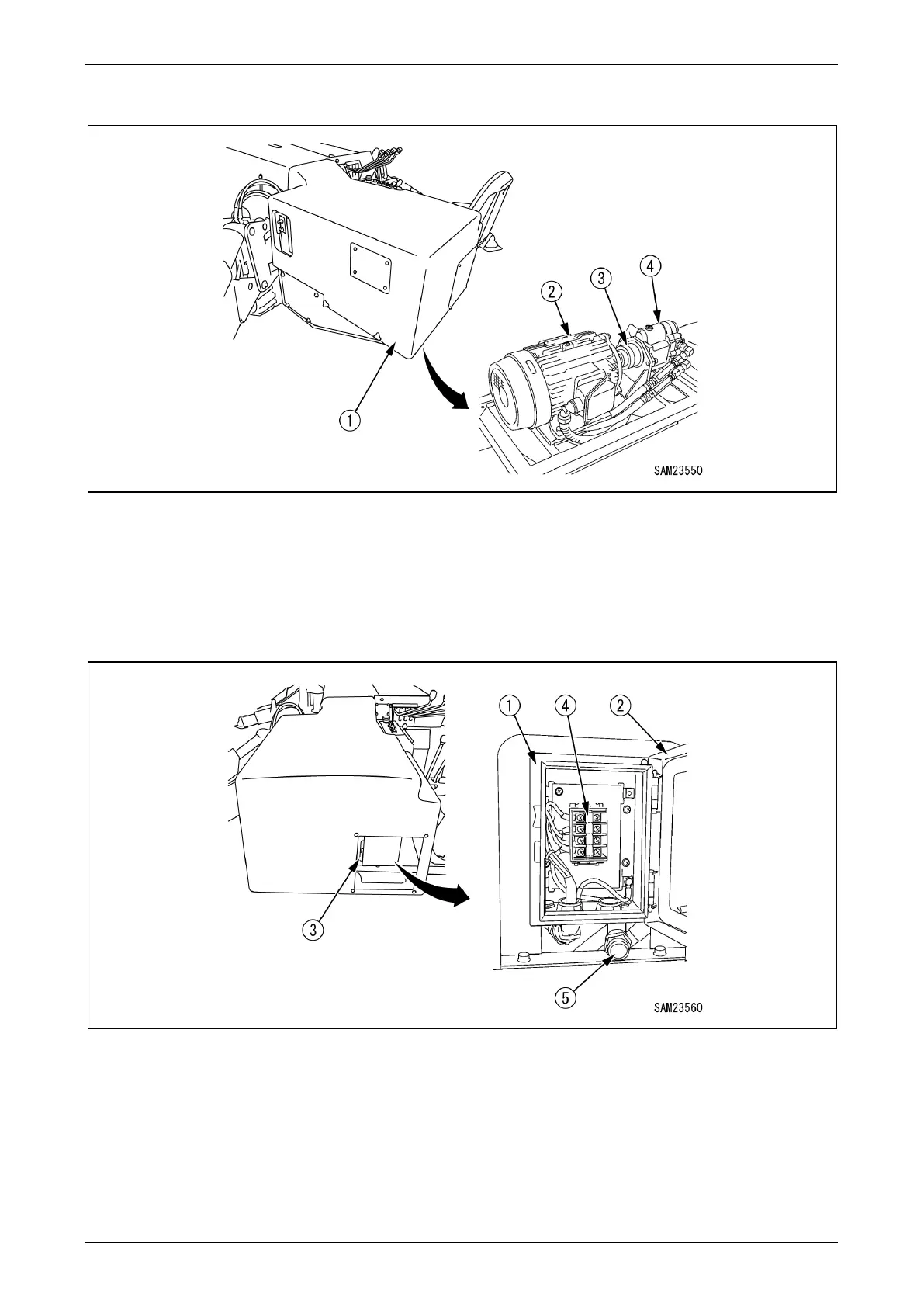

Power Unit
Fig. 4-353
1 - Power unit cover
2 - Electric motor
3 - Coupling
4 - Hydraulic pump
Power Supply Box
Fig. 4-354
1 - Power supply box
2 - Power supply box door
3 - Door handle
4 - Terminal block
5 - Cable inserting hole
