Section 3 –WORKING RADIUS/LIFTING HEIGHT Mini-Crawler Crane M A E D A
3-20 3/2019 MC305C-3
WORKING RADIUS/LIFTING HEIGHT
Standard
WARNING!

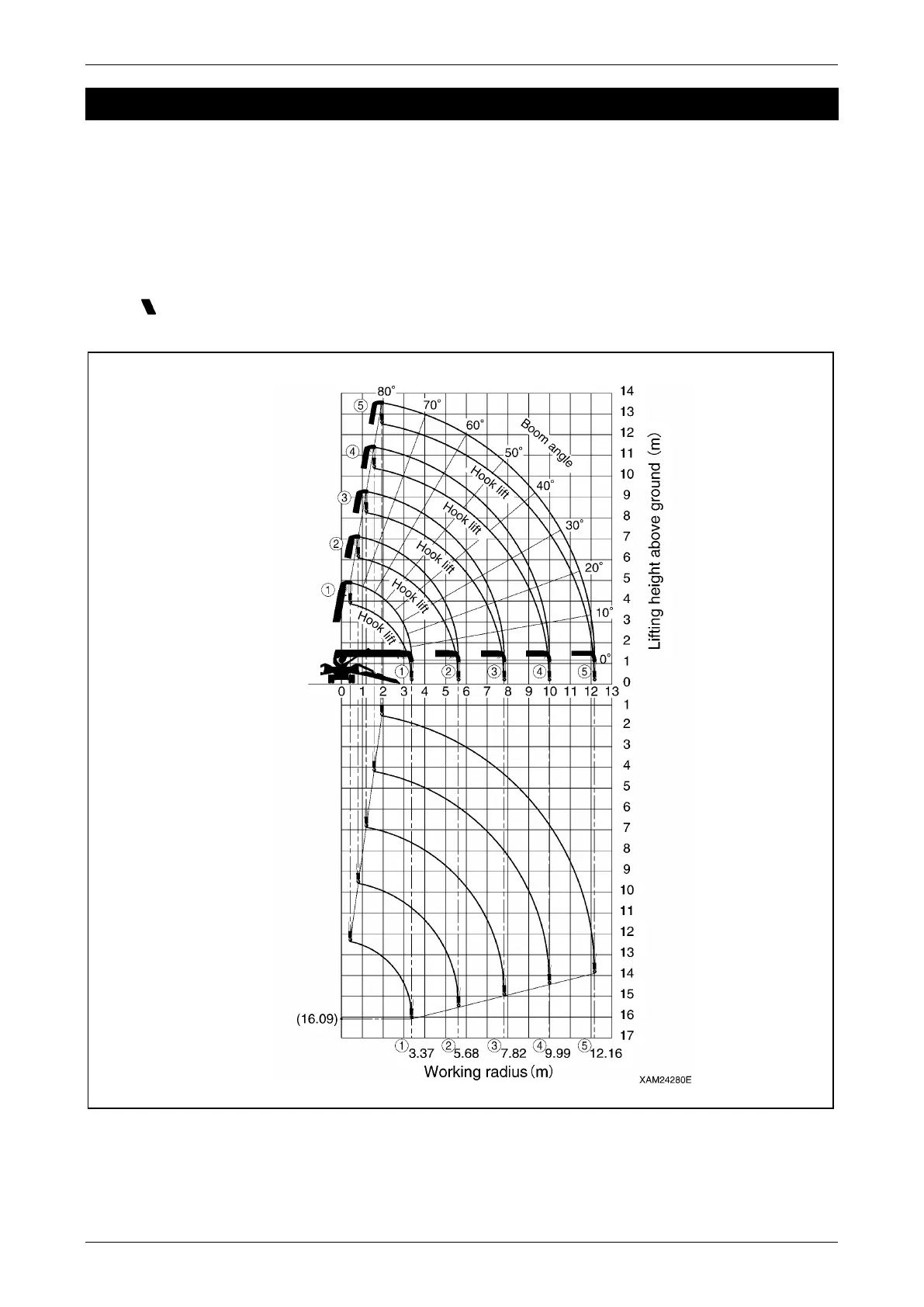

• The diagram of working radius and lifting height shows the relationships the working radius of
this machine, boom angle, and lifting height above the ground with no object hoisted. The
diagram has been made allowing for no deflection in the boom.
• The boom (4) in the diagram of working radius and lifting height represents a state that half of
the " mark" passes boom (3).
Fig. 3-15
