Section 4 – MACHINE COMPONENTS Mini-Crawler Crane M A E D A
4-2 3/2019 MC305C-3
MACHINE COMPONENTS

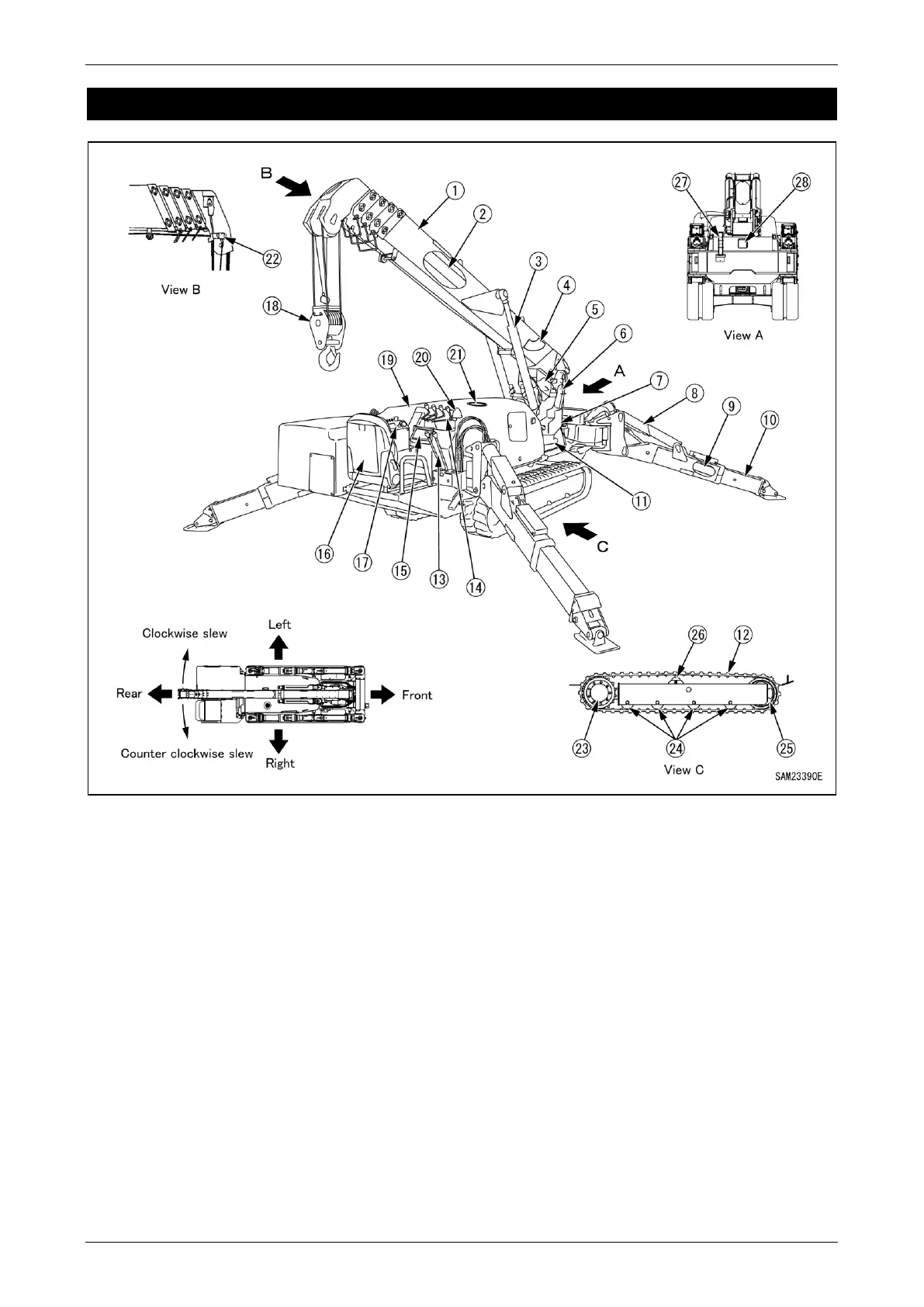

Fig. 4-1
1 - Boom
2 - Boom telescoping cylinder (Inside the boom)
3 - Boom lift cylinder
4 - Angle indicator
5 - Winch
6 - Post
7 - Moment limiter converter
8 - Outrigger setting cylinder
9 - Outrigger extension cylinder (Built in the box)
10 - Outrigger
11 - Slewing device
12 - Rubber track
13 - Travel control
14 - Crane control
15 - Moment limiter display unit
16 - Operation seat
17 - Instrument panel
18 - Hook block
19 - Hydraulic oil tank (Inside machinery cover)
20 - Outrigger un-set warning lamp
21 - Fuel tank (Inside machinery cover)
22 - Over winding detector
23 - Travelling motor and sprocket
24 - Track roller
25 - Idler
26 - Carrier roller
27 - Working status lamp
28 - Working light
