Section 3 –WORKING RADIUS/LIFTING HEIGHT Mini-Crawler Crane M A E D A
3-22 3/2019 MC305C-3
Working Radius/Lifting Height for Searcher Hook
DANGER!
• When using the searcher hook, be sure to set searcher hook mode for moment limiter.
• Fall mode and searcher hook offset position must be set as "850 kg searcher hook mode" when
850 kg searcher hook is used. Searcher hook offset position must be displayed on moment
limiter boom length window.
• Never use the searcher hook and the crane hook simultaneously.

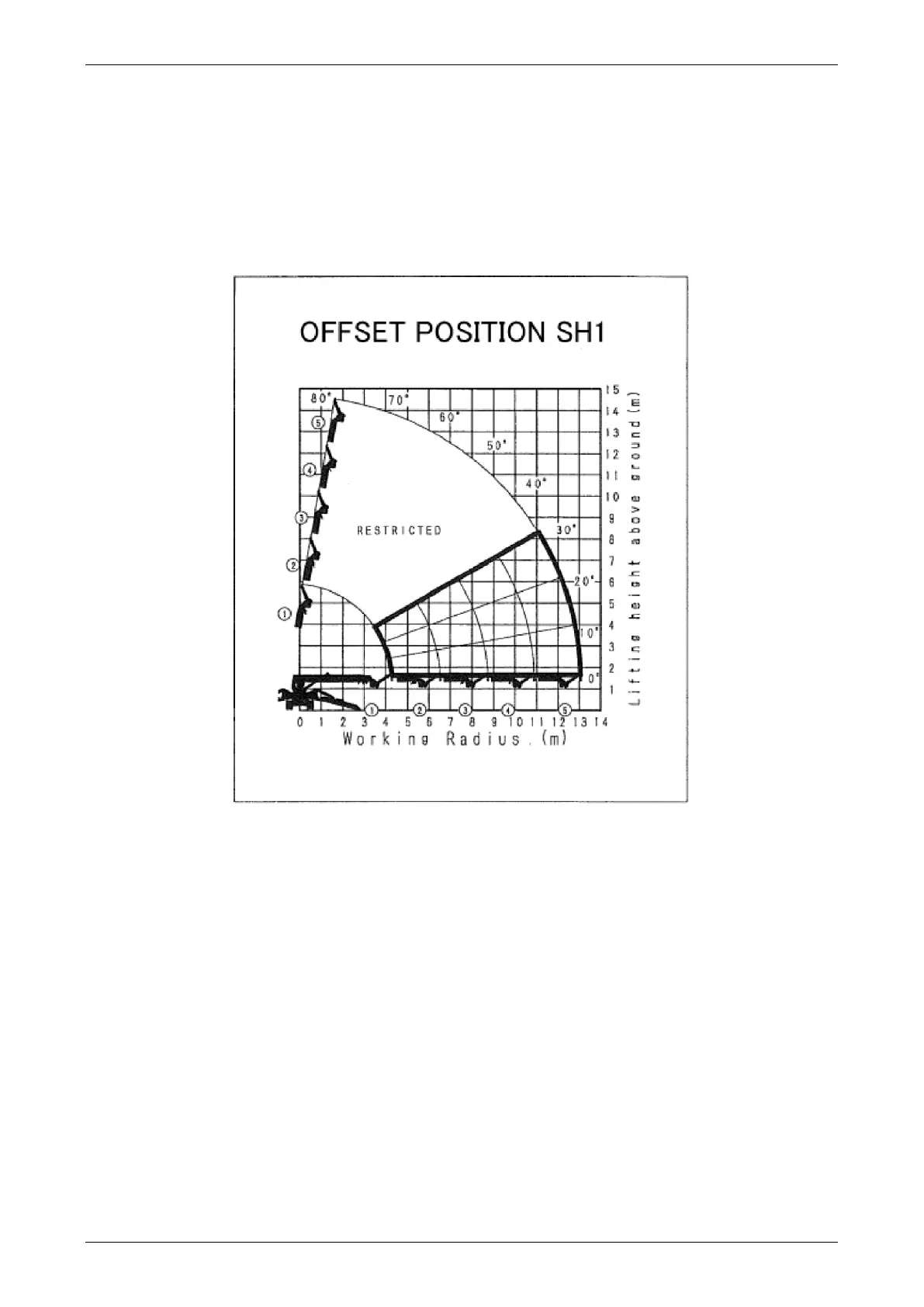

Fig. 3-18
