M A E D A Mini-Crawler Crane Section 4 – DIRECTIONAL CONTROLS
3/2019 MC305C-3 4-25
Spin Turns
Left Spin Turn
Tilt the right travelling lever forward while tilting
the left travelling lever toward you to rotate the
left and right rubber tracks in the opposite
direction for left spin turn.
Right Spin Turn
Tilt the left travelling lever forward while tilting
the right travelling lever toward you to rotate the
left and right rubber tracks in the opposite
direction for right spin turn.

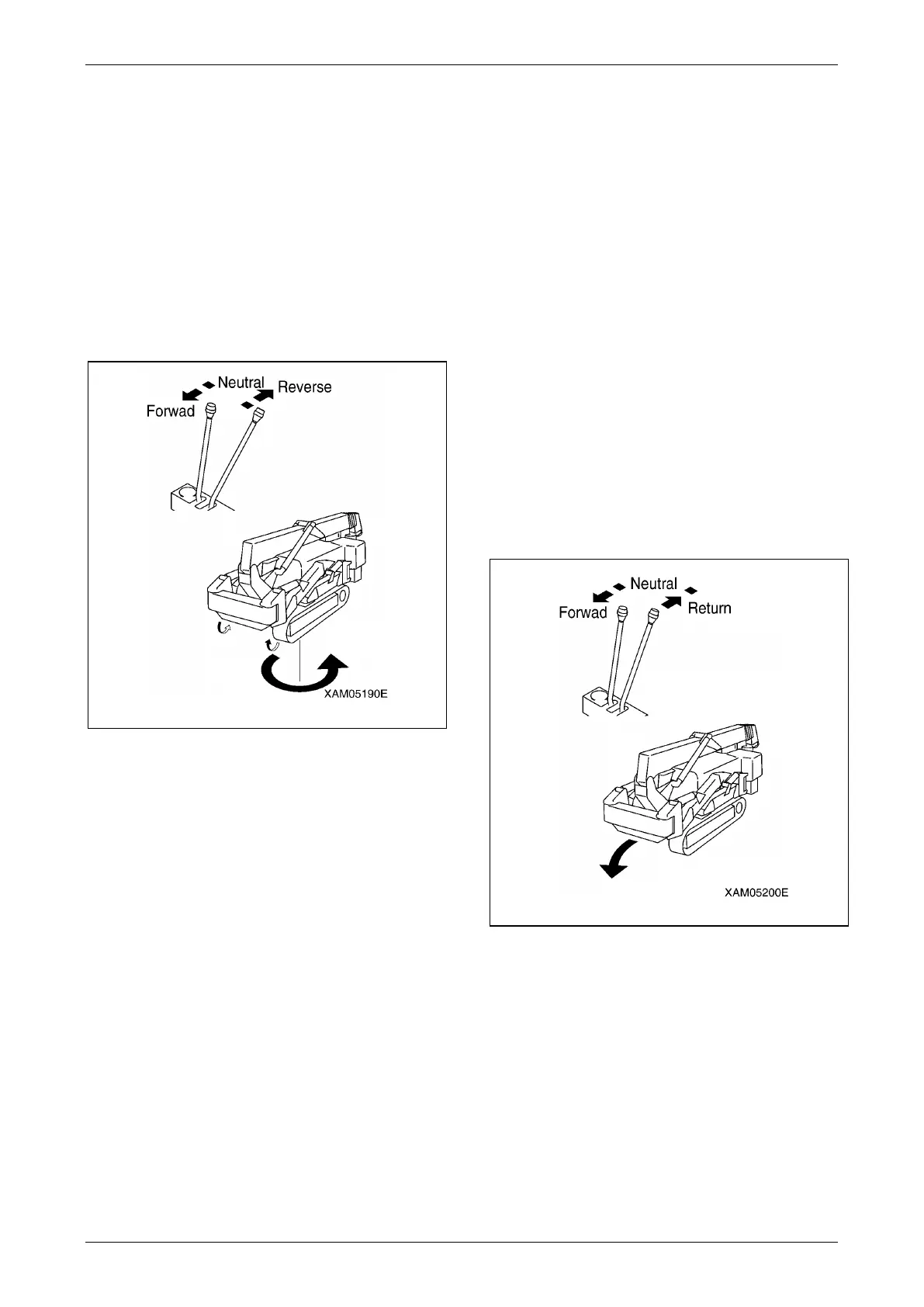

Fig. 4-62
Changing Path While Travelling
Forward/Backward
Left Turn While Travelling Forward
While tilting the right travelling lever forward,
return only the left travelling lever to the
"Neutral" position.
Left Turn While Travelling Backward
While tilting the right travelling lever toward you,
return only the left travelling lever to the
"Neutral" position.
Right Turn While Travelling Forward
While tilting the left travelling lever forward,
return only the right travelling lever to the
"Neutral" position.
Right Turn While Travelling Backward
While tilting the left travelling lever toward you,
return only the right travelling lever to the
"Neutral" position.
Fig. 4-63
