6. Turn one of the outrigger operation levers to
"Extend (lower)" and pull the Accelerator
lever slowly.

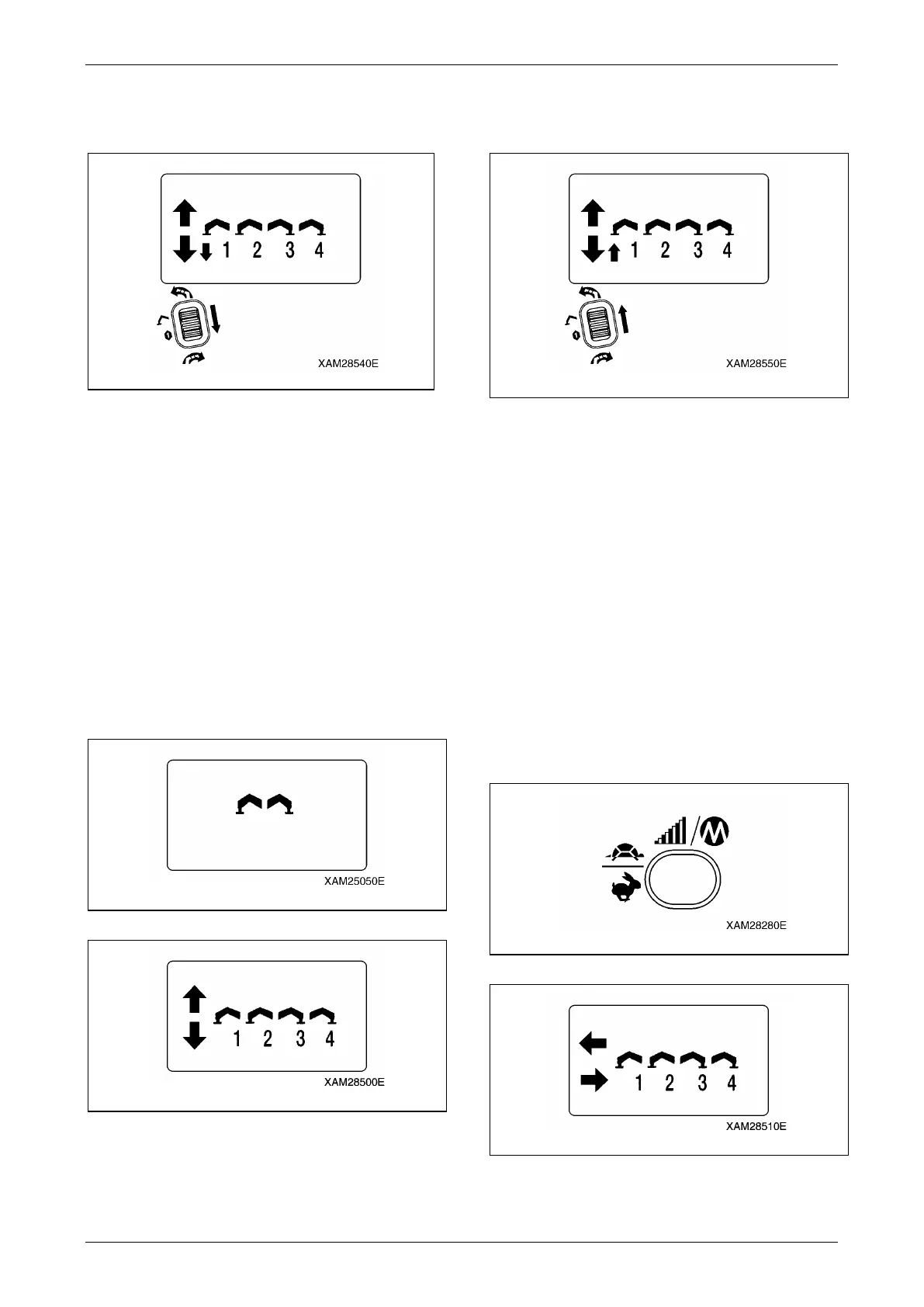

Fig. 4-325
NOTICE: Repeat the same process to the other
three outriggers and lift all the four outriggers
equally and gradually, so that the Crane is
properly elevated.
7. When the Crane is elevated "approximately
50mm", slowly release the Accelerator lever,
then release the outrigger operation lever to
return to the neutral position.
Outrigger Stowage
1. In accordance with "Procedure in the
Operation Mode" on page 4-94, enter into
the "OUTRIGGER MODE".
Fig. 4-326
Fig. 4-327
2. Turn one of the outrigger operation levers to
"Retract (upper)" and pull the Accelerator
lever slowly.
Fig. 4-328
3. When the Crane touches the ground, slowly
release the acceleration lever, then release
the outrigger operation lever to return to its
neutral position.
NOTICE:
• Repeat the same process to the other three
outriggers and lower all the four outriggers
equally and gradually, so that the Crane is
grounded.
• After the Crane is grounded, lower all the four
outriggers completely.
4. Push Speed/Mode button in the mode
condition of above 3.
The operation mode is switched to
"Outrigger Extension mode".
Fig. 4-329
Fig. 4-330
