Section 4 – INSTRUMENT PANEL SECTIONS Mini-Crawler Crane M A E D A
4-8 3/2019 MC305C-3
Switches
Working Lights Switch
Use this switch to turn on the working lights on
front of the machine. The pilot lamp at the switch
section lights up when the switch is set to the
"ON" position and extinguishes at the "OFF"
position.

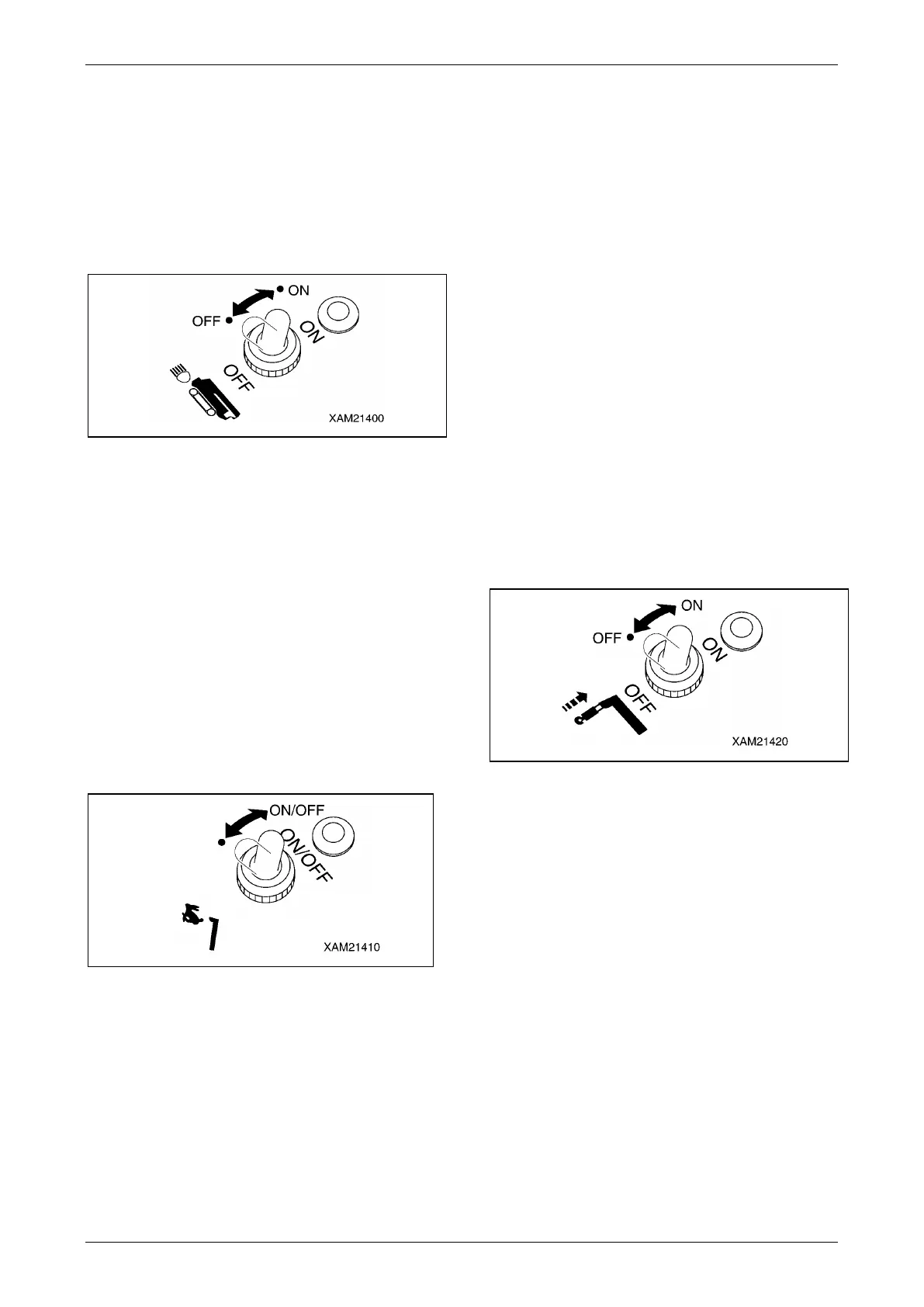

Fig. 4-11
• ON: Push the switch forward. The working
lights turn on.
• OFF: Push the switch toward you. The working
lights turn off.
NOTICE: The working lights do not light up even
if the working lights switch is operated when the
starter switch is at the "OFF" position.
Crane High-Speed Switch
Use this switch to change the operating speed of
the crane during the crane operation.
The pilot lamp at the switch section lights up
when the switch is operated to the "ON" position
and extinguishes at the "OFF" position.
Fig. 4-12
• ON: Push the switch forward, and when the
pilot lamp lights up the switch turns "ON" and
the crane operating speed increases.
• OFF: Push the switch forward again, and when
the pilot lamp goes off the switch turns "OFF"
and the crane operating speed returns to
normal.
NOTICE: Always set the work selector switch on
the outrigger operation panel to the "Crane"
position. If the work selector switch is at other
position than "Crane", the crane high-speed
switch does not work.
Hook Stowing Switch
WARNING!
• The hook stowing switch cancels the
auto-stop function of the over winding
detector.
Operate the winch lever carefully when
stowing the hook block. Pay sufficient
attention not to let the hook block collide
with the boom.
• Use this switch only when stowing the
hook block.
Use this switch to stow the hook block at the tip
of the boom. The pilot lamp at the switch section
lights up when the switch is operated to the "ON"
position and extinguishes at the "OFF" position.
Fig. 4-13
• ON: Keep pushing the switch forward and
operate the winch lever to "RAISE" side. The
hook block is raised and can be stowed in the
tip of the boom.
• OFF: Release your finger from the switch. The
switch returns to the original position and the
auto-stop function of the over winding detector
will be activated.
