Section 4 – 850 kg SEARCHER HOOK COMPONENTS (OPTION) Mini-Crawler Crane M A E D A
4-128 3/2019 MC305C-3
850 kg SEARCHER HOOK COMPONENTS (OPTION)

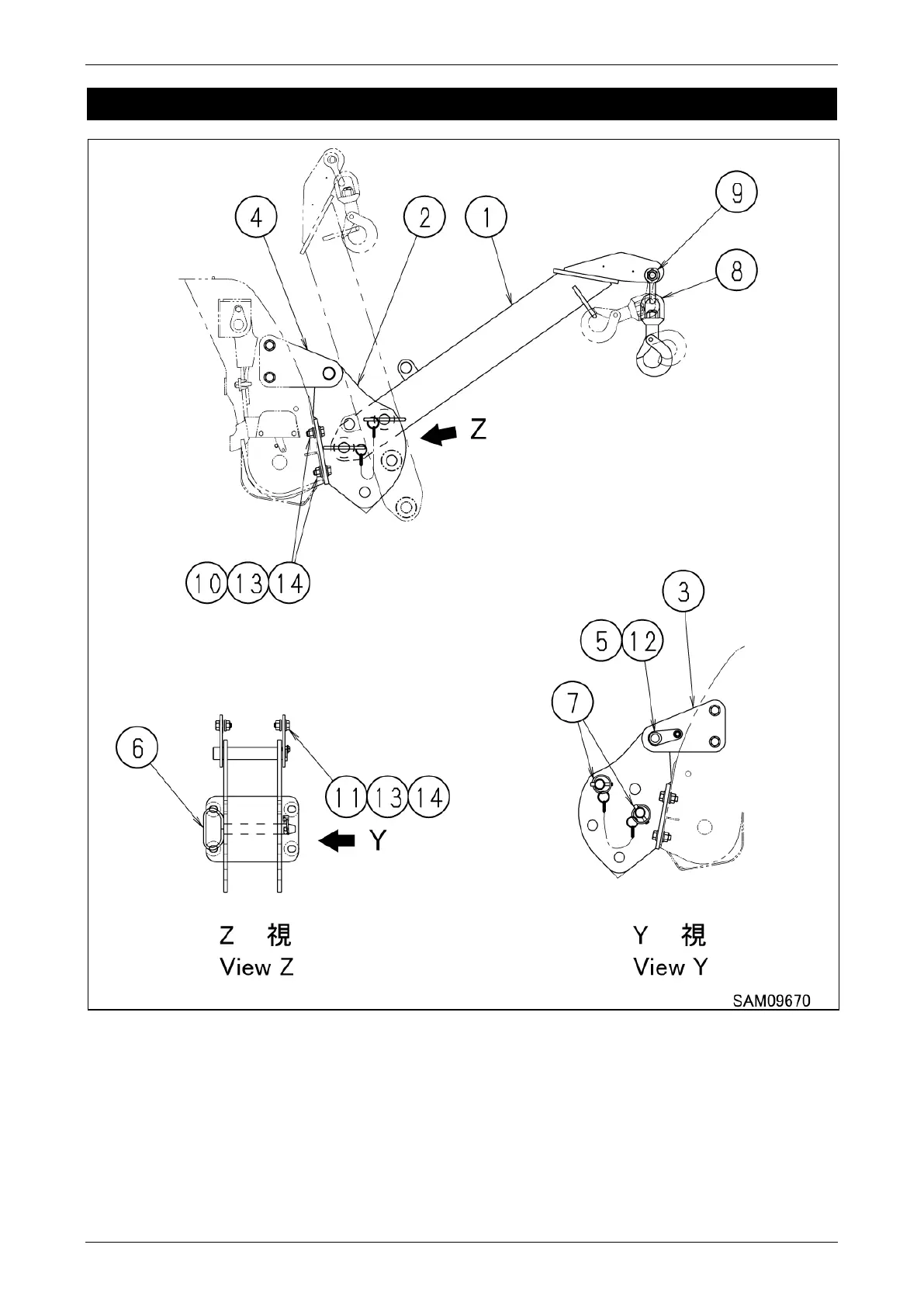

Fig. 4-374
1 E-Boom
2 Bracket
3 Bracket 1
4 Bracket 2
5 Pin
6 Position pin
7 Lynch pin
8 Hook
9 Shackle
10 Hexagonal bolt with washer
(strength 10.9)
11 Hexagonal bolt with washer
(strength 10.9)
12 Hexagonal bolt with washer
(strength 10.9)
13 Nut (strength 10)
14 High tension washer
