M A E D A Mini-Crawler Crane Section 4 – INSTRUMENT PANEL SECTIONS
3/2019 MC305C-3 4-7
INSTRUMENT PANEL SECTIONS

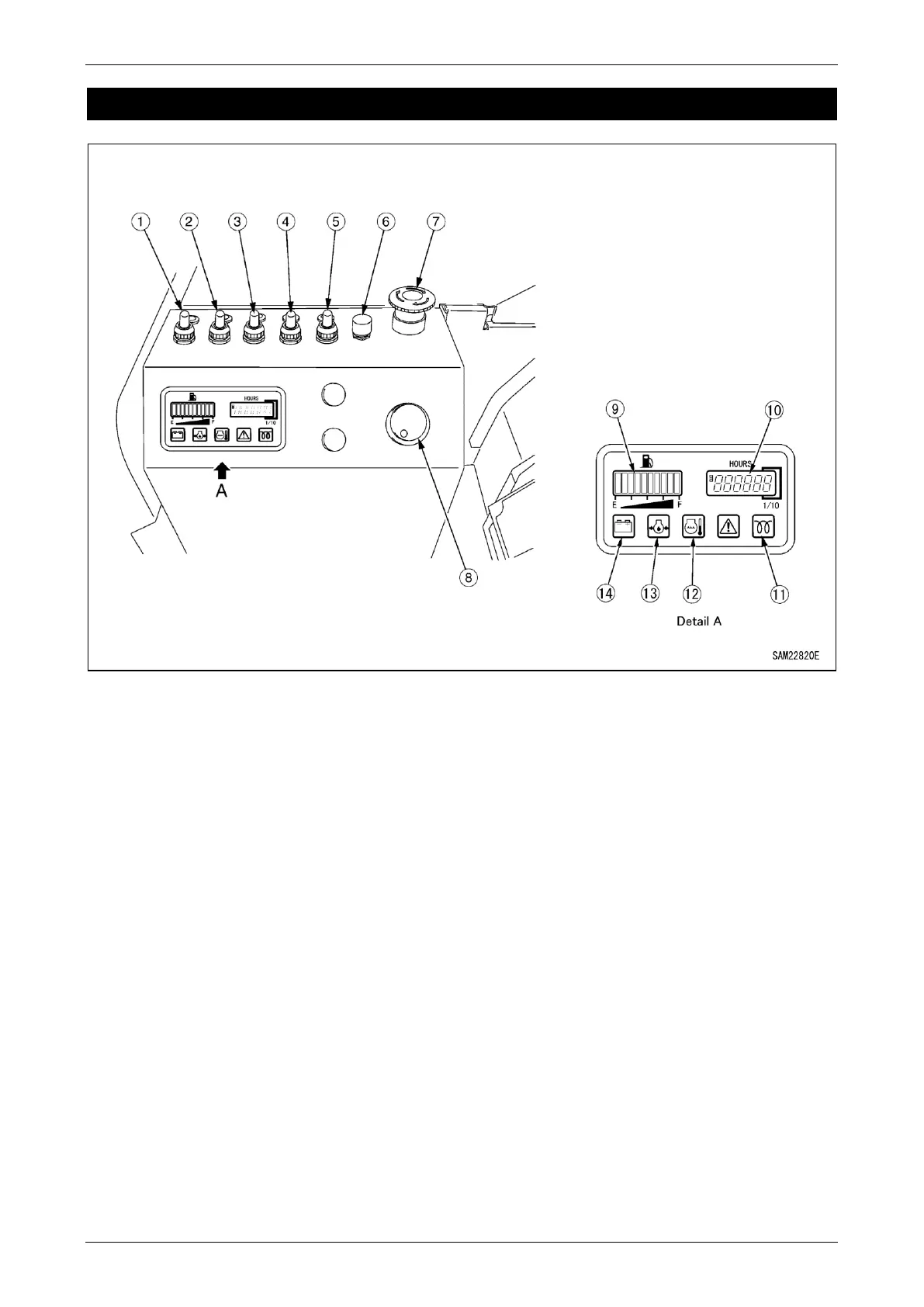

Fig. 4-10
1 – Working light switch
2 - Crane high-speed switch
3 - Hook stowing switch
4 - Travelling high-speed switch
5 - Boom stowing switch
6 - Horn switch
7 - Engine emergency stop switch (EMO)
8 - Starter switch
9 - Fuel gauge
10 - Hour meter
11 - Pre-heat monitor
12 - Engine water temperature monitor
13 - Engine oil pressure monitor
14 - Battery charge monitor
