M A E D A Mini-Crawler Crane Section 5 – GENERAL MACHINE MAINTENANSE
3/2019 MC305C-3 5-63

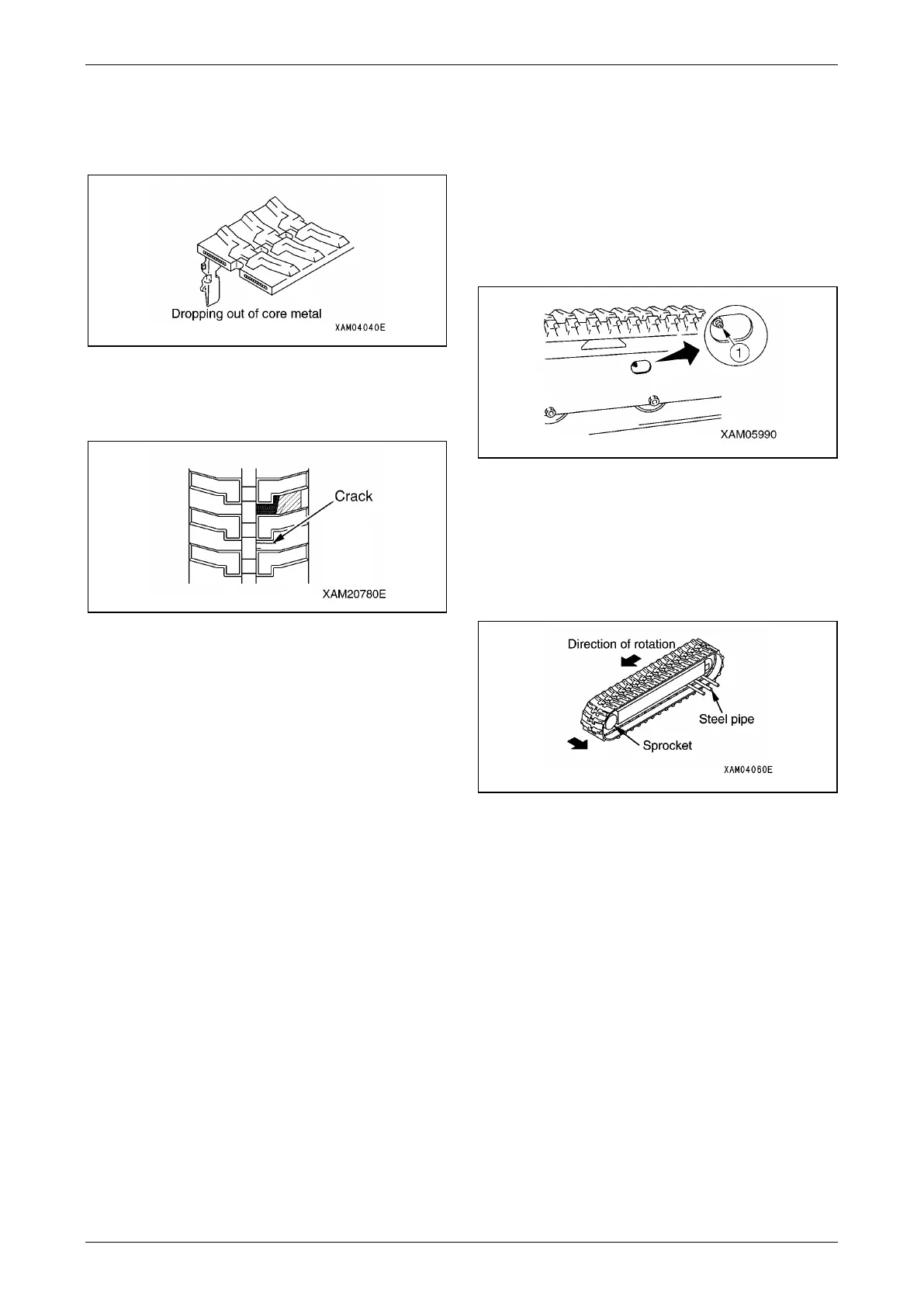

Fallen Core Metal
If the core metal of the rubber track is fallen out at
more than 1 location, change the rubber track with
a new one.
Fig. 5-124
Cracks
If there is a crack between rubber track lugs,
change the rubber track with a new one.
Fig. 5-125
Replace Rubber Track
WARNING!
• The inside of the tension adjusting device of
the rubber track is greased. Grease is under
high pressure associated with the tension of
the rubber track. Failure to follow
precautions stated below when removing
grease may lead to a serious accident due to
the grease valve being popping out.
• Only one full turn of the tension adjusting
grease valve is allowed to loosen. The
grease valve may pop out if disregarded.
• Always stand aside when conducting
tension adjustment of the grease valve to
circumvent potential dangers.
• Ensure that grease is completely removed
from the inside of the rubber track before
rotating the sprocket to remove the rubber
track.
Removal Rubber Track
Have a steel pipe available.
1. See "OUTRIGGER SETTING" on page 4-36
to set the outriggers and raise the rubber
track for about 50 mm from the ground.
2. Loosen the grease valve (1) gradually and
remove grease.
3. Provide only one full turn of the grease valve
(1).
Fig. 5-126
4. Insert the steel pipe between the idler and
rubber track, as shown in the figure. Rotate
the sprocket backward.
5. When the inserted steel pipe detaches the
rubber track from the idler, slide the crawler in
a lateral direction to remove it.
Fig. 5-127
Installation Rubber Track
• Have a grease gun available.
• Have a steel pipe available.
1. See "OUTRIGGER SETTING" on page 4-36
to set the outriggers and raise the rubber
track again for about 50 mm from the ground.
2. With the rubber track engaged with the
sprocket, put the crawler on the idler.
To Next Page
