M A E D A Mini-Crawler Crane Section 4 – MODE SETTING OF THE TRANSMITTER
3/2019 MC305C-3 4-95
2. While the "Crane mark" is shown in the LCD
screen (for approx. 2 seconds), push the
Speed/Mode button for 2 seconds.
The LCD provides the screen for selecting
"CRANE MODE" or "OUTRIGGER MODE".

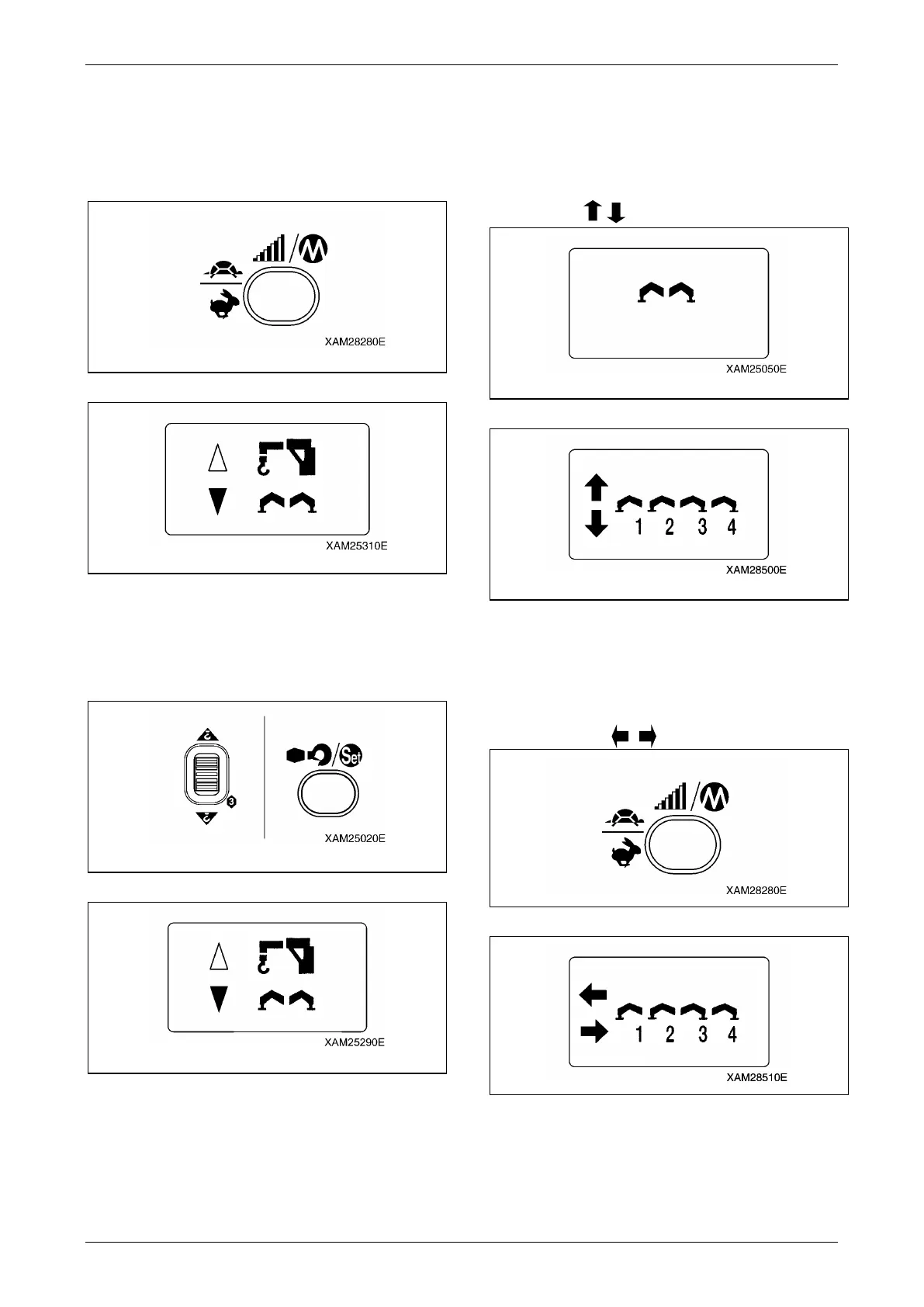

Fig. 4-258
Fig. 4-259
3. Use the Hook raising and lowering Lever
and shift the cursor (▲ or ▼), and push the
Hook stow/Setting button when the cursor
points out the "OUTRIGGER".
Fig. 4-260
Fig. 4-261
4. The operation mode is already switched to
the "OUTRIGGER MODE", thus the
"Outrigger mark" is exhibited.
Soon after, it enters into "Ground setting
mode", then the mark turns to "Ground
setting ( )".
Fig. 4-262
Fig. 4-263
5. To shift to "Extension mode", push the
Speed/Mode button, while the LCD screen
shows the "Ground setting mode". Then the
mode is switched to "n"; the mark turns to
"Extension (
)".
Fig. 4-264
Fig. 4-265
NOTICE: Switching between "Outrigger
Extension mode" and "Outrigger Ground setting
mode" is alternately by each push of the
Speed/Mode button.
