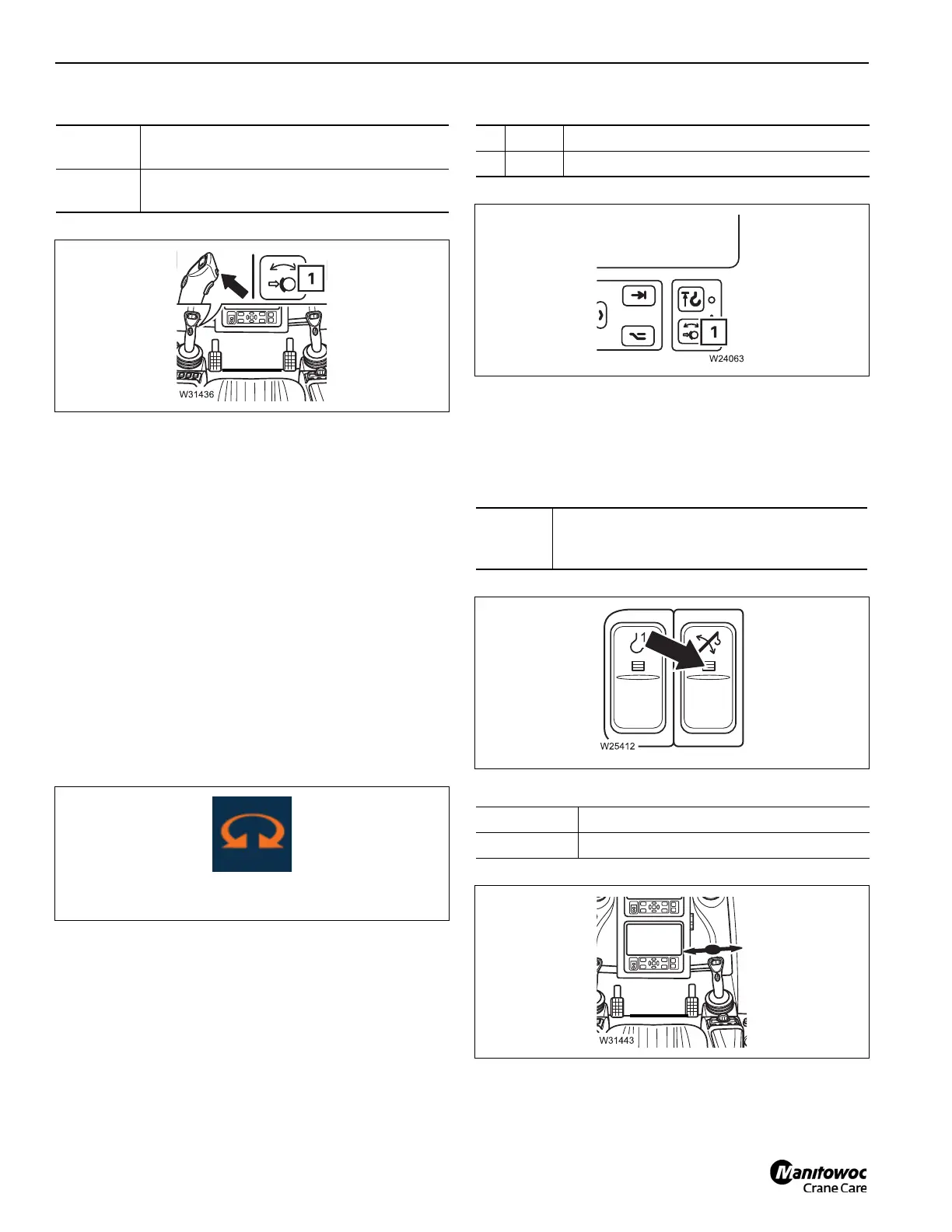

OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-100 Published 02-21-2019, Control # 611-05
Free swing button
CCS display
Swing crane function display
NOT ENABLED: Blue background, orange icon
(Figure 3-135) (this is at first key on without pushing any
buttons)
ENABLED: Green background, white icon (this is after the
enable button has been selected)
STAND BY: Yellow background, white icon (this is after the
function has been enabled, and you get out of the seat)
STANDBY FUNCTION ACTUATED: Yellow background
flashing, white icon (this occurs when a function is presently
in standby and a joystick is actuated – before sitting back in
the seat, to prevent unwanted movement)
DISABLED: Blue background, gray icon (function is disabled
– this is set by going into the ODM screen and setting the
function speed to ‘0’. While at 0, a function can not be
enabled)
Swing brake applied/released
Lifting/Lowering mechanism
Control panels
Lifting/lowering mechanism on/off
.
Right control lever
To switch
on:
Press and hold the button on the joystick
(Figure 3-134) to engage free swing.
To switch
off:
Release the button – to turn free swing OFF.
FIGURE 3-134
8854-143
FIGURE 3-135
8854-144a
1 On: Swing brake applied (Figure 3-136)
1 Off: Swing brake released
Press
once:
Lifting/lowering mechanism ON
(Figure 3-137), press the switch again to turn
OFF.
To the left: Raise – lift main boom (Figure 3-138)
To the right: Lower – lower main boom
FIGURE 3-136
8854-145
8854-148
FIGURE 3-137
8854-148
FIGURE 3-138
8854-149
