Manitowoc Grove TMS9000-2 Series User Manual

OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-30 Published 02-21-2019, Control # 611-05

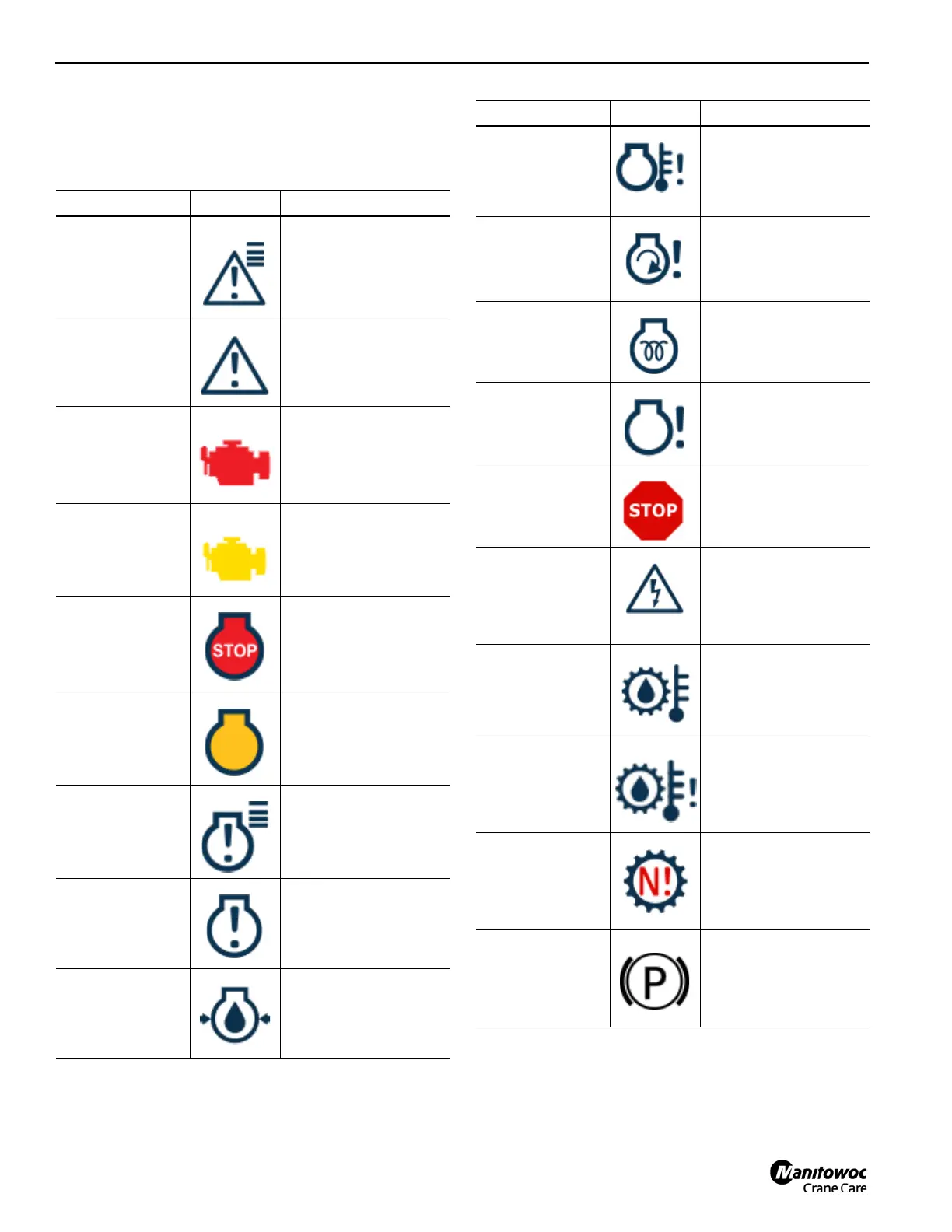

Alert Icons
The alert icons appear on the left side of the Home Screen
when an error is present during the operation of the crane.
Name Icon Description
New fault
A new fault was added
to the list.
Fault
There is at least one
fault on the list.
Malfunction
indicator lamp-
critical
Engine critical alarm
lamp. This is
commanded by the
engine.
Malfunction
indicator lamp-
warning
Engine warning alarm
lamp. This is
commanded by the
engine
Engine stop
Engine Stop lamp
(red). This is
commanded by the
engine.
Engine warning
Engine Warning lamp
(amber). This is
commanded by the
engine.
New engine
fault
A new engine fault was
added to the list.
Engine fault
There is at least one
engine fault on the list.
Engine oil
pressure low
The engine oil
pressure is low. This is
commanded by the
engine.
Engine
temperature
high
The engine coolant
temperature is high.
This is commanded by
the engine.
Engine
overspeed
The engine speed
(rpm) is above the max
expected value.
Engine wait to
start
The engine is warming
up before starting. This
is commanded by the
engine.
Engine data
invalid
The engine RPM data
is not valid.
Emergency stop
One of the emergency
stop switches is
pressed.
System voltage
The supply voltage
measured at the main
control module is less
than 22V or more than
30V.
Transmission
temperature
The transmission oil
temp is heated up to
the warning level.
Transmission
temperature
invalid
The transmission oil
temp is invalid.
Transmission
not in neutral
The transmission is not
in neutral when it is
required to be (starting
engine, running
outriggers, etc).
Parking brake
The park brake is
required to be secured
but is not. This could
be engine start,
running outriggers, etc.
Name Icon Description
