TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
Brake Pedal
The brake pedal (17) is located on the right side of the cab
floor and is used to apply the service brakes.
Clutch Pedal
The clutch pedal (18), manual transmission only, is located
on the left side of the cab floor and is used to disengage and
engage the engine with the transmission.
Steering Wheel

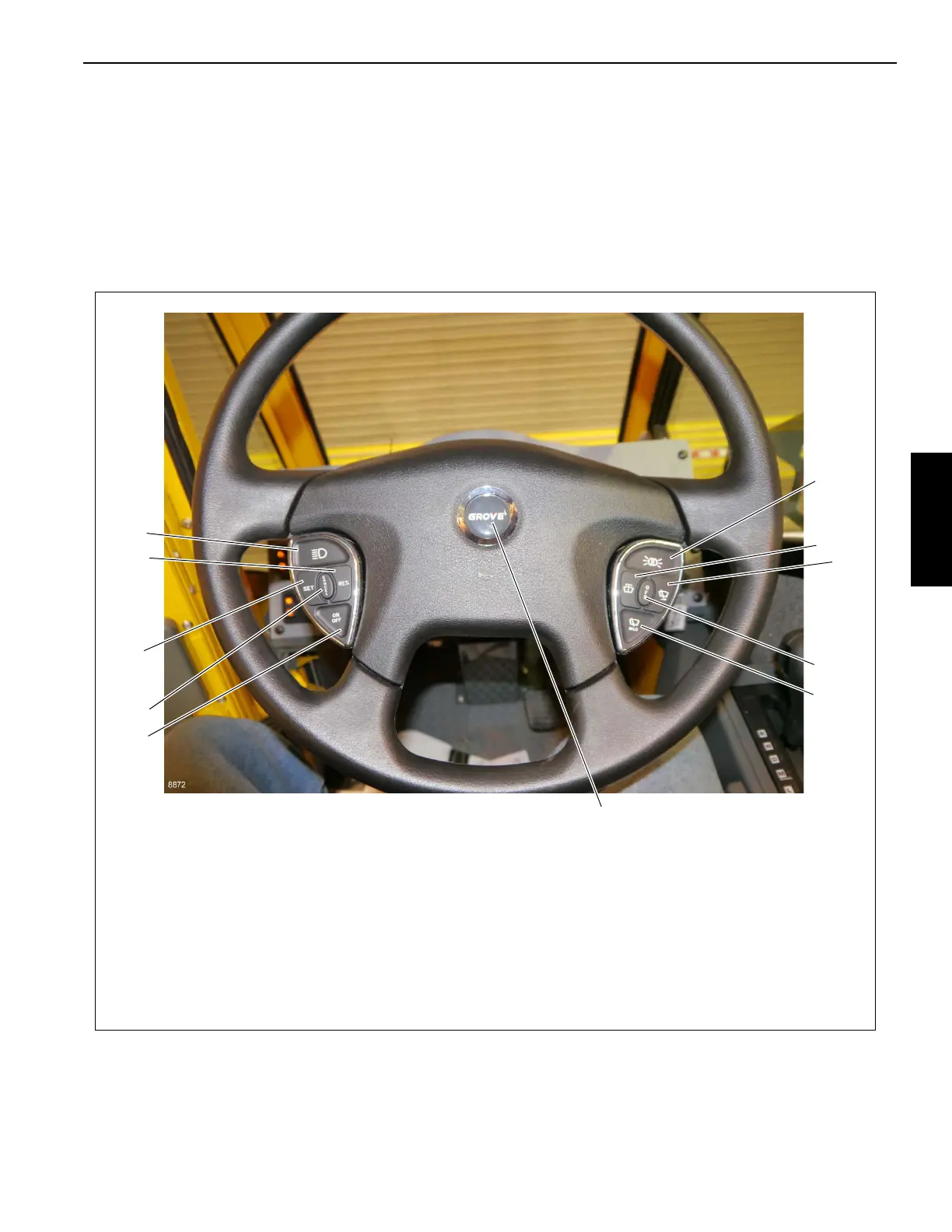

The steering wheel (Figure 3-3) includes cruise control
buttons, the flash headlights switch, windshield wiper switch,
windshield wiper speed control switch, windshield washer
switch and the flash marker lights switch. To sound the horn
press the center of the steering wheel.
8
10
FIGURE 3-3
1
2
3
4
5
6
7
9
11
1. Flash Marker Lights
2. Windshield Washer
3. Windshield Wiper
4. Windshield Wiper Off
5. Windshield Wiper Speed
6. Horn
7. Cruise Control On/Off
8. Cancel Set Speed
9. Set Speed/Coast
10. Resume Set Speed/Accelerate
11. Flash Headlights
