OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-4 Published 02-21-2019, Control # 611-05
Transmission Shift Lever
The transmission shift lever (1, (Figure 3-1)) is located on the
right side of the cab. It is used to select the transmission
gears. Refer to Shifting Gears, page 4-25 of this Operator
Manual.
Spare Switch/Indicator
The spare switch/indicators (2, 3, 4) may be populated with
future options.
USB Ports
The USB ports (5) are used to download system information
from the data logger.
12 Volt Outlet
The 12 volt outlet (6) provides a place to plug in a 12 volt
accessory with a maximum current draw of 3 amps.
Fire Extinguisher
The fire extinguisher (7) is mounted on the left inside rear of
the cab.
Horn Button
The horn button (8) is located in the center of the steering
wheel. Depressing the horn button energizes the circuit
sounding the horn.
Turn Signal/Headlight High Beam Low Beam
Lever
The turn signal lever (9) is located on the steering column.
Positioning the lever down causes the indicator light on the
console and the left front and left rear signals to flash.
Positioning the lever up causes the indicator light on the
console and the right front and right rear signals to flash. Pull
back for high beam and push forward for low beam.
Steering Column Tilt/Telescope Lever
The steering column tilt/telescope lever (10) is located on the
steering column behind the turn signal lever. Pulling back on
the lever allows the steering column to be tilted to seven
positions. Pushing the lever allows the steering column to be
telescoped.
Cab Circulating Fan
The cab circulating fan (11) is mounted on the left front of the
cab and is controlled by a two speed rocker switch on the
base of the fan.
Windshield Wiper and Washer
The windshield wiper (12) removes moisture from the
windshield. The washer applys a liquid to the windshield so
the wiper can clean it.
Carrier Camera Display
The carrier camera display (13) can be configured to display
either the back up camera or the right turn camera or both,
see Carrier Camera Display Setup, page 4-86.
Dome Light
The dome light (14) with integral switch is used to illuminate
the cab.
Air Horn
Pull down on the air horn control to sound the air horn.
Throttle Pedal
The throttle pedal (16) is located on the right side of the cab
floor. It is used to increase the engine RPM.

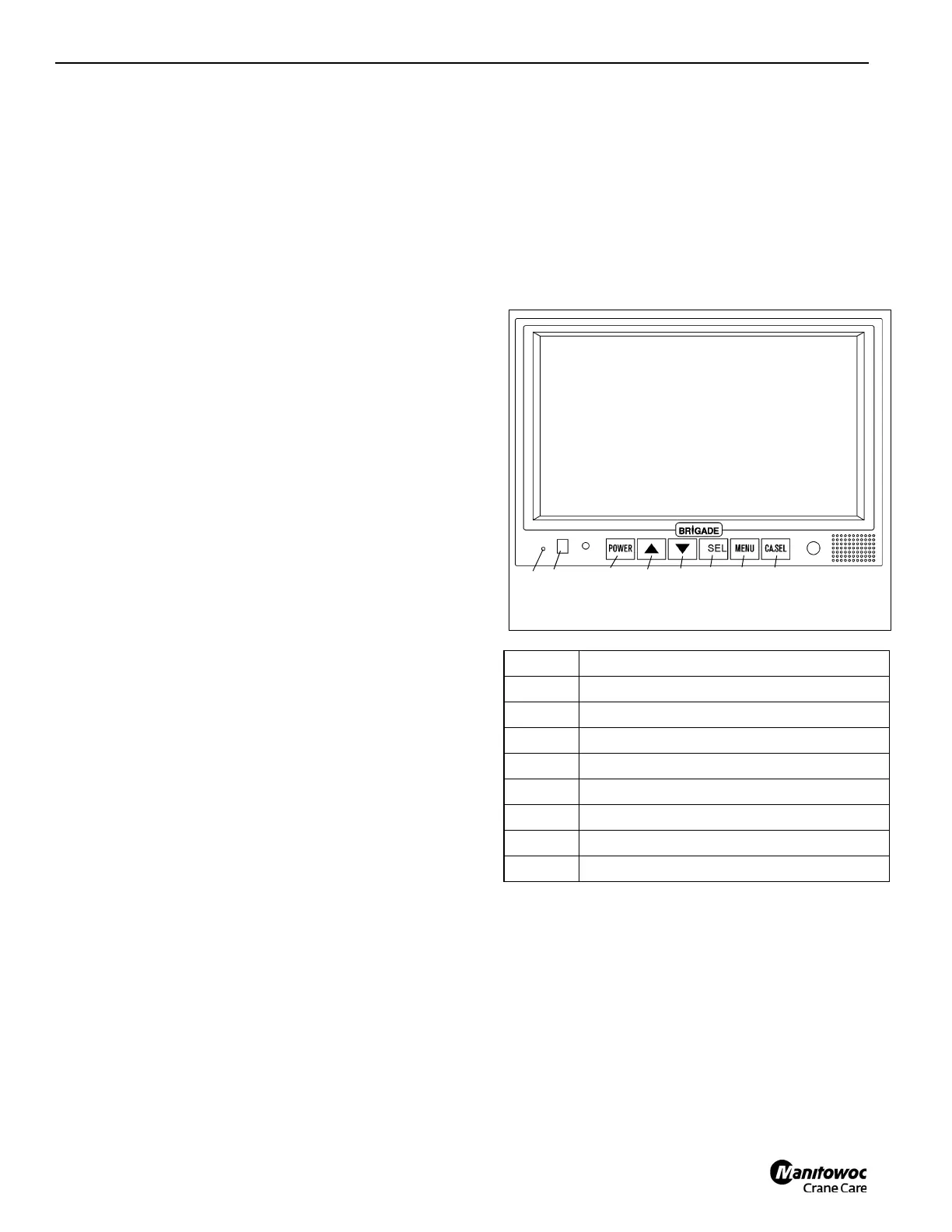

Item Description
1 Automatic low light sensor
2 Remote control receiver
3 Power switch
4 Scroll up/left
5 Scroll down/right
6 Select
7 Menu
8 Camera select
