Manitowoc Grove TMS9000-2 Series User Manual

Grove Published 02-21-2019, Control # 611-05 3-99

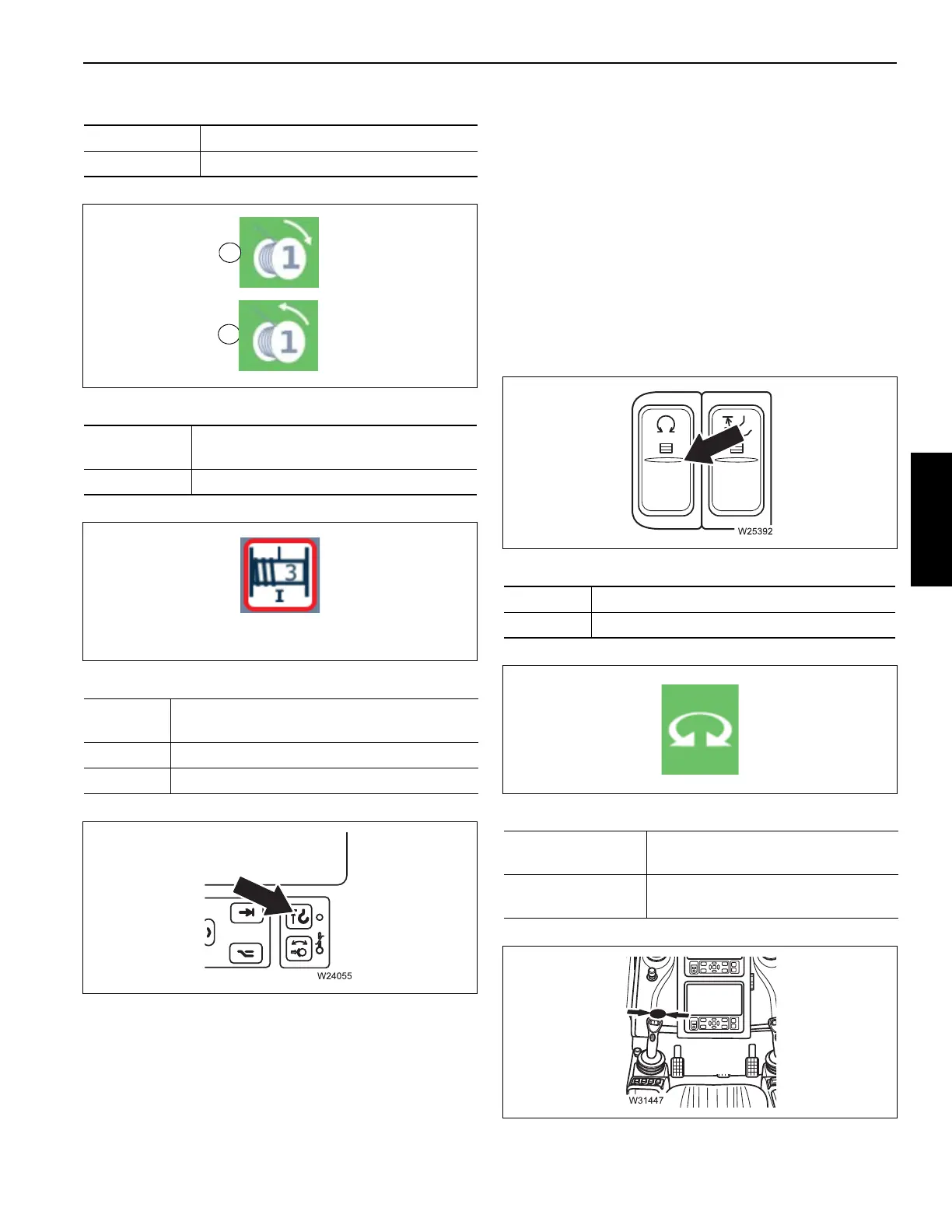

TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
Lift/lower the hoist
Warning for lowering limit switch lockout
Hoist Limit Lockout Indication
Auxiliary hoist
Auxiliary hoist, page 4-57.
The auxiliary hoist uses the same icons except they are
labeled “2” instead of “1” and the left control lever actuates
the auxiliary hoist.
Swing
Control panels
Swing enable
Swing is enabled with a switch (Figure 3-131) on the left
hand control panel.
There is an icon on the right side of the display.
Left control lever
Symbol (1): Lift
Symbol (2): Lower
Icon shown:
Lowering limit switch triggered – main
hoist stop (Figure 3-129)
No icon: Lowering limit switch not triggered
On:
Hoisting is locked out due to Anti-two Block
or minimum wrap condition (Figure 3-130)
Flashing: Hoist Limit Lockout Override Active
Off: Anti-two block switch not triggered
FIGURE 3-128
8854-130a&d
1
2
FIGURE 3-129
8854-131a
FIGURE 3-130
8854-132
Green: Swing on (Figure 3-132)
Red: Swing off
Push the control
lever to the left:
Swing the superstructure to the left
(Figure 3-133)
Push the control
lever to the right:
Swing the superstructure to the right
FIGURE 3-131
8854-141
FIGURE 3-132
8854-144b
FIGURE 3-133
8854-142
