OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-110 Published 02-21-2019, Control # 611-05
Remote Control Components
Table 3-3 Remote Control Components

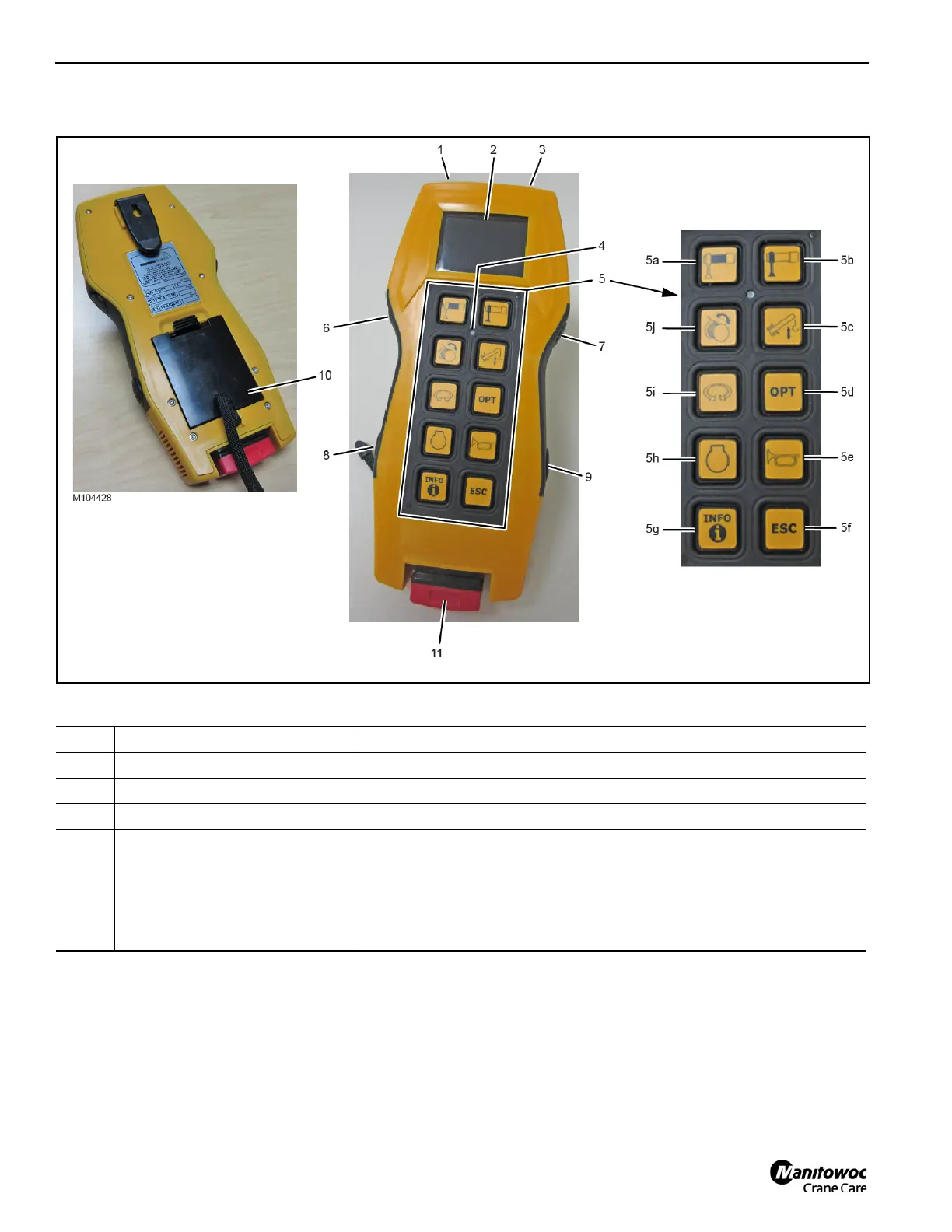

Item Component (Figure 3-168) Description
1 Programming Port For Grove factory authorized use only.
2 Color Display Displays information for the selected function.
3 Power Button ON/OFF switch which activates and deactivates the remote control.
4 Indicator LED
Amber, solid = remote control in bootloader mode (ready to be programmed)
Green, slow blink = wireless communication OK
Red, slow blink = E-stop relay open or wireless communication stopped
Red, fast blink = battery low
Red, solid = remote controlling error
