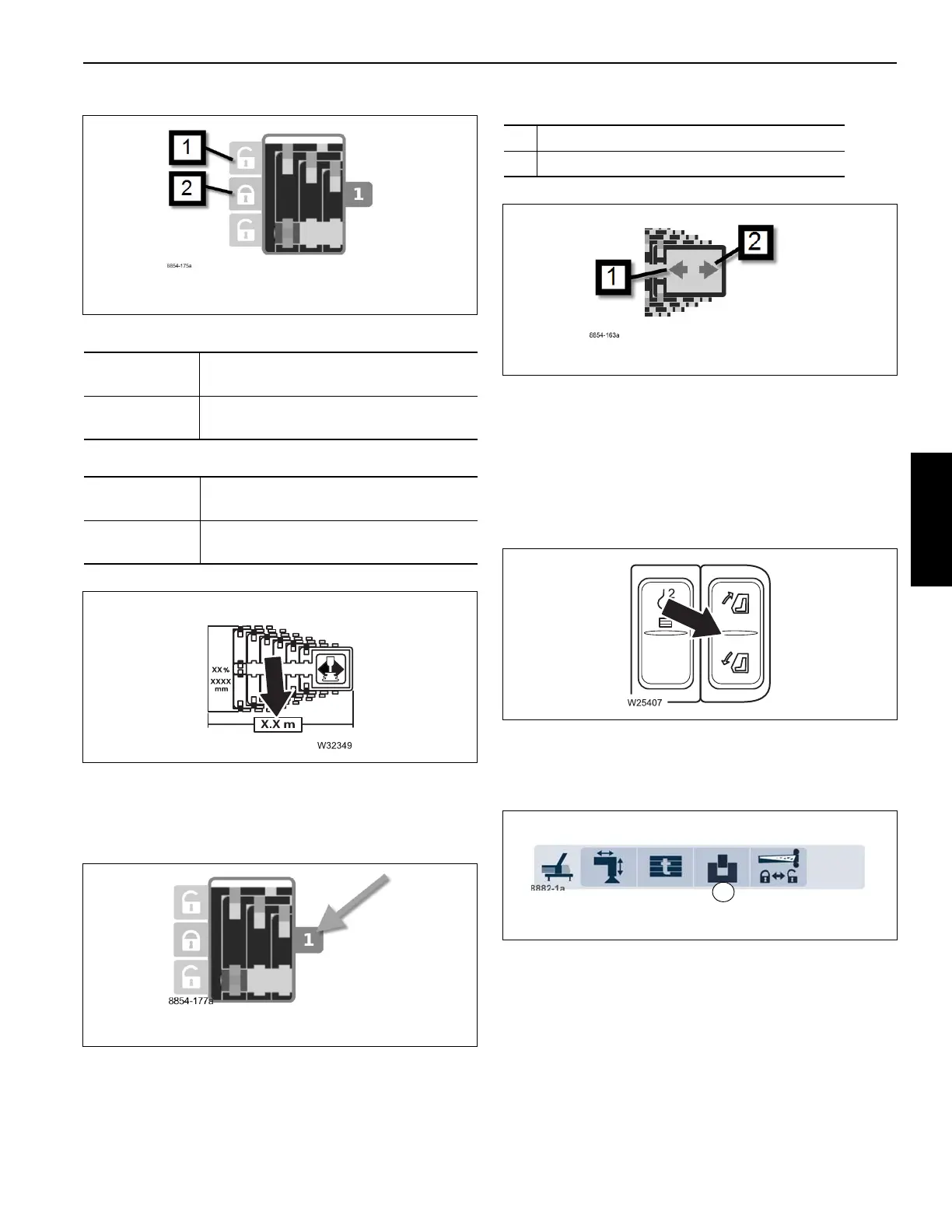

TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
Telescoping cylinder length display
Main boom length display
Telescoping section in the telescopic section display
Displayed telescopic section, e.g. telescopic section 1
(Figure 3-159)
Telescoping direction display
Hydraulic system
Cab tilt
This switch is located in the left hand armrest control panel.
Press top of switch to raise the cab.
Press the bottom of the switch to lower the cab.
Superstructure house lock menu
To open: Select symbol (1, (Figure 3-162)) and confirm.
Display:
Current extended length of the
telescoping cylinder (Figure 3-147)
Unit of
measurement:
Displayed depending on setting, mm
(millimeters) or ft (feet) and percent (%)
Display:
Current extended length of the main
boom (Figure 3-148)
Unit of
measurement:
Displayed depending on setting, m
(meters) or ft (feet)
FIGURE 3-157
8854-175a
FIGURE 3-158
8854-161
FIGURE 3-159
8854-177a
1 Start with Retract (Figure 3-160)
2 Start with Extend
FIGURE 3-160
8854-163a
FIGURE 3-161
8854-182
FIGURE 3-162
8882-1a
