TMS9000-2 OPERATOR MANUAL LUBRICATION
5
Published 02-21-2019, Control # 611-05
Grove
Turntable Central Lubrication
ITEM
NUMBER
LOCATION NAME
APPROX.
CAPACITY
LUBE SPEC NOTES
SERVICE
POINTS
SERVICE SERVICE HOURS
HOIST
49
TURNTABLE
(swing) BEARING -
INNER RACE
--------------- 6829003477 37 4 LUBE (AUTO) 50 HRS/1 WEEK
UPPER ANS
LOWER LIFT
CYLINDER PINS
--------------- 6829003477 37 2 LUBE (AUTO) 50 HRS/1 WEEK
BOOM PIVOT PIN --------------- 6829003477 37 4 LUBE (AUTO) 50 HRS/1 WEEK
MAIN HOIST -
BEARING
--------------- 6829003477 37 1 LUBE (AUTO) 50 HRS/1 WEEK
AUX HOIST -
BEARING
--------------- 6829003477 37 1 LUBE (AUTO) 50 HRS/1 WEEK
50
HOIST LOWER
LIMIT SWITCH
--------------- 2 LUBE
250 HRS/
3 MONTHS
8885-14

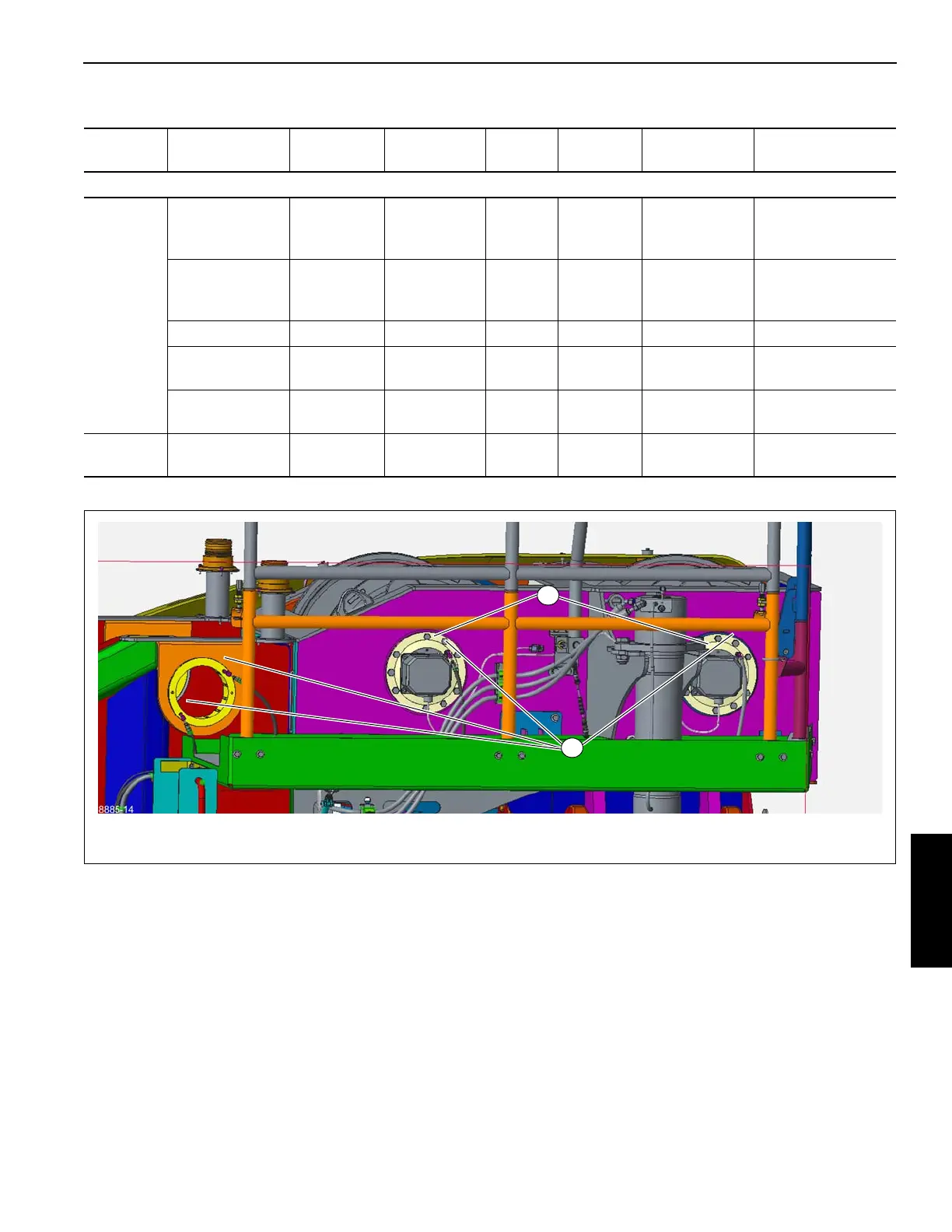

FIGURE 5-16
