TMS9000-2 OPERATOR MANUAL OPERATING PROCEDURES
4
Published 02-21-2019, Control # 611-05
GROVE
Warnings in the start menu
When CCS detects a fault then the display area (1,
Figure 4-186) shows an error or warning symbol.
Meaning of the symbols
Perform the following checks if a symbol is displayed.
Voltage monitoring
The voltage in the electrical system is too high or too low
(Figure 4-187).
Engine oil pressure too low
• Switch off the crane operation as soon as possible and
switch off the engine (Figure 4-188).
• Check the oil level; refer to the Service Manual.
• If the oil level is correct then start the engine and check
the warning messages that are present.
Engine malfunction
• Switch off the engine immediately and open the Engine
error menu, (Figure 4-189).
• If necessary, note the error messages and contact your
local distributor or Manitowoc Crane Care.
Fuel level in the tank too low
The fuel tank is filled only to a level of approx. 5%
(Figure 4-190).
If the fuel tank is almost empty, air will be sucked in and you
will have to bleed the fuel system, refer to the Service
Manual.
Emergency stop switch actuated
To reset the switch, rotate and pull (Figure 4-191).
MECHANICAL EMERGENCY UNLOCKING
AND LOCKING OF THE TELESCOPIC
SECTIONS
The mechanical emergency operation must be used
whenever the telescoping cylinder can no longer be moved.
For manual unlocking and locking of the telescopic sections,
a screw is inserted into each side in the locking pins. When
screwed in, the screw collapses the spring internal to the
locking pin, thus pulling the locking pin which pulls the
8849-191

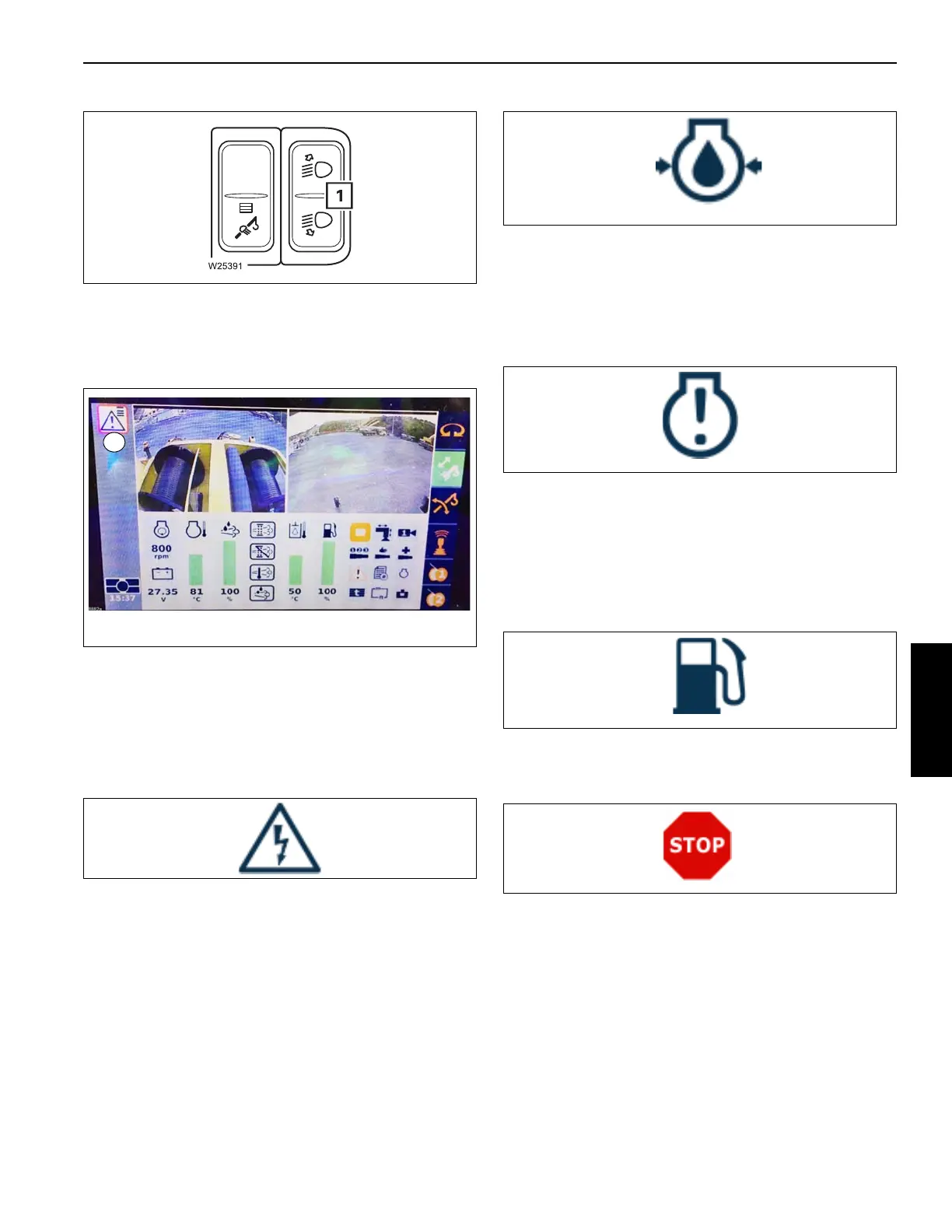

FIGURE 4-185
8882a
FIGURE 4-186
1
9122-19
FIGURE 4-187
9122-12
FIGURE 4-188
9122-11
FIGURE 4-189
9122-30
FIGURE 4-190
9122-18
FIGURE 4-191
