TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
Control levers
1)
Optional equipment

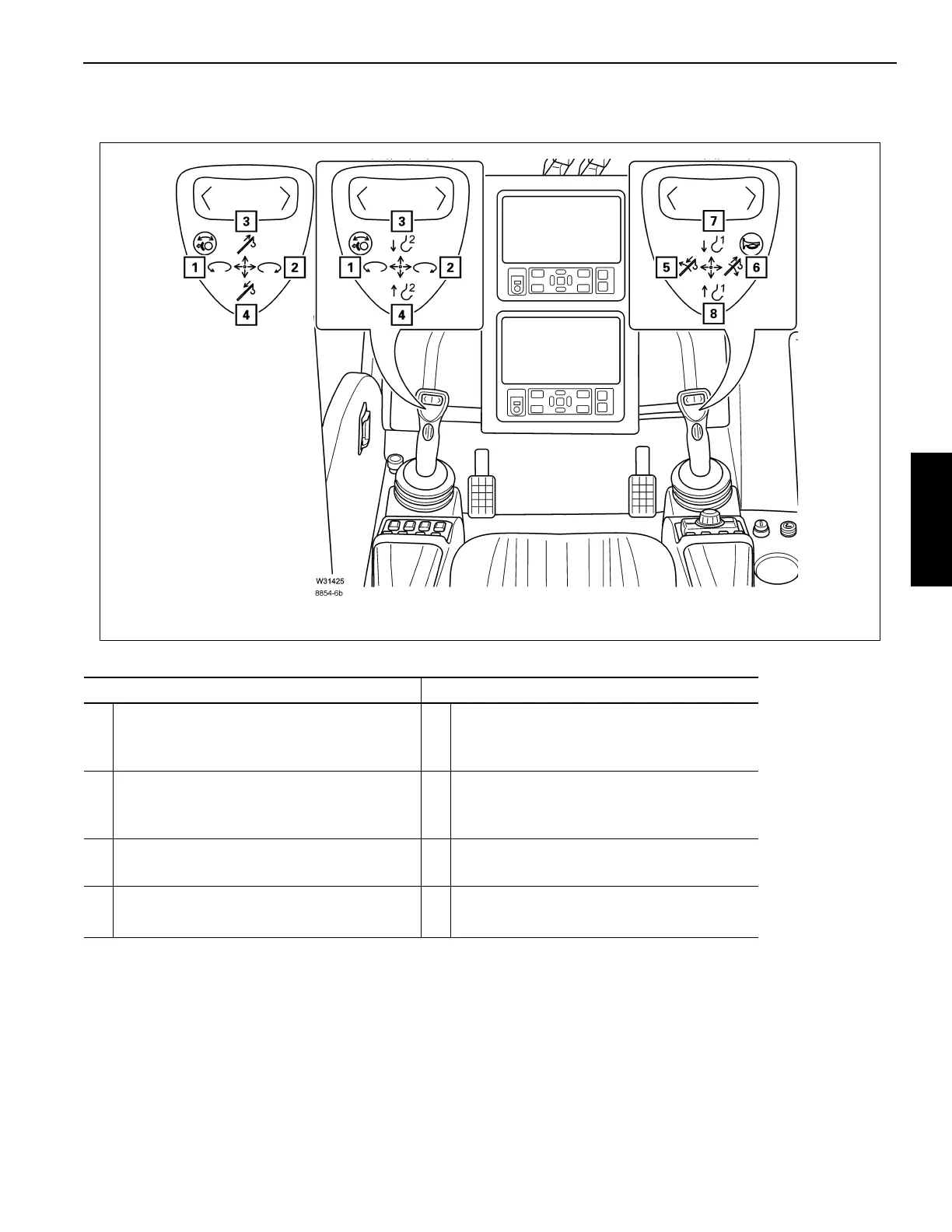

FIGURE 3-13
8854-6b
Without Optional
Aux Hoist
Left control lever Right control lever
1 Swing left 5
Boom raise (If boom function is enabled)
Telescope retract (If Telescope is enabled
and aux hoist is installed)
2 Swing right 6
Boom lower (If boom function is enabled)
Telescope extend (If Telescope is enabled
and aux hoist is installed)
3
Auxiliary hoist lower (if aux hoist is
installed)
1)
or Telescope extend
7 Main hoist lower
4
Auxiliary hoist raise (if aux hoist is installed)
1)
or Telescope retract
8 Main hoist raise
