OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-22 Published 02-21-2019, Control # 611-05
Right Hand Armrest Controls
1)
Optional equipment
2)
Setting an Angle between 0° and 45°

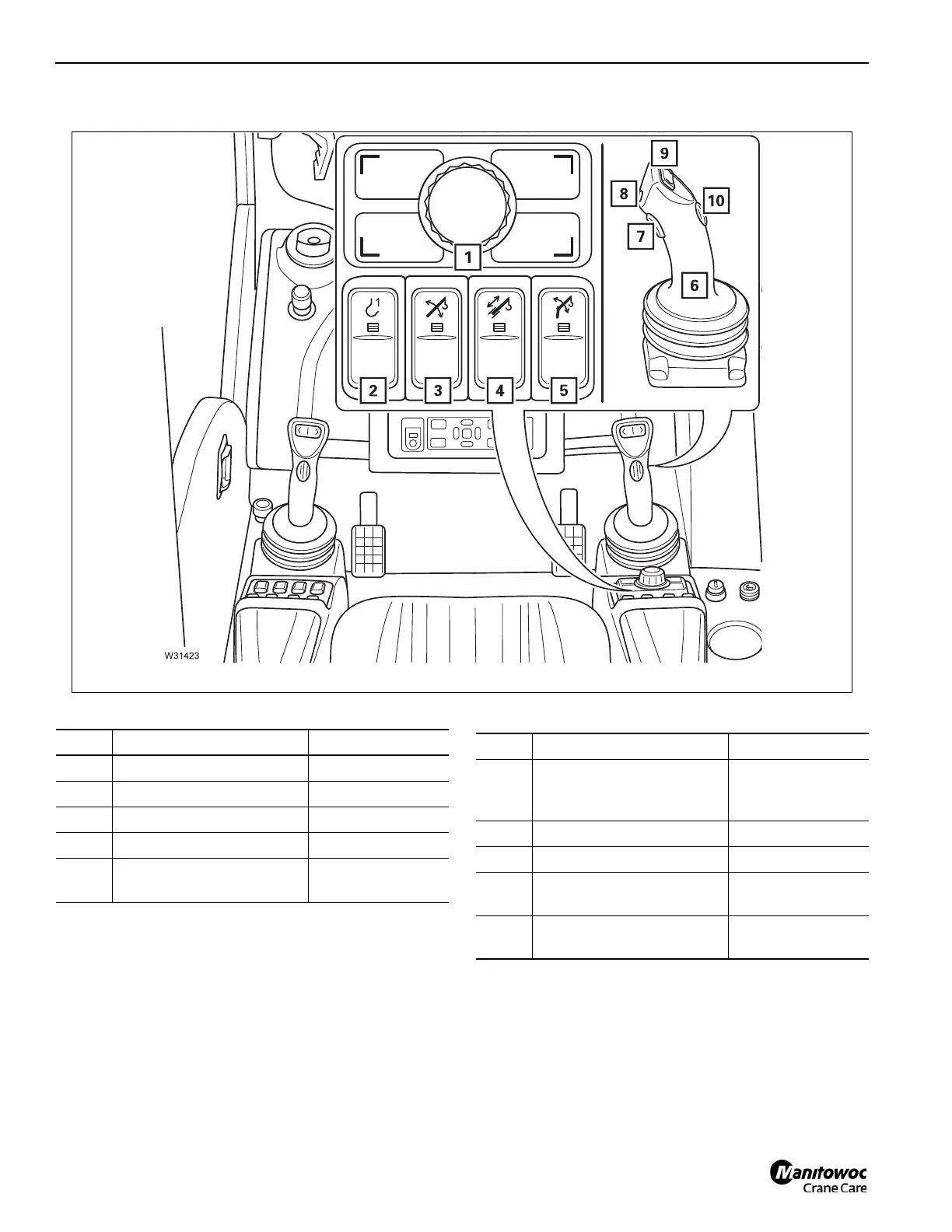

FIGURE 3-12
8854-4
Item Description Refer to
1 Jog dial page 3-34
2 Main hoist enable page 3-98
3 Boom up/down enable page 3-100
4 Telescoping enable page 3-101
5
Boom extension enable
1),
2)
Item Description Refer to
6
Right-hand control lever
(configuration depends on
version)
See below.
7 Dead man's switch page 3-92
8 Horn button
9
Main hoist high-speed
mode on/off
page 3-98
10
Main hoist rotation
indicator
page 3-98
