Manitowoc Grove TMS9000-2 Series User Manual

OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-16 Published 02-21-2019, Control # 611-05
SUPERSTRUCTURE CAB
This section shows the position and designations of the
operating elements for crane operation. This also includes
display elements such as lights or displays.
NOTE: Operating elements available only with optional
equipment are designated accordingly. These
designations are made in this section only and are
not repeated in the following sections.

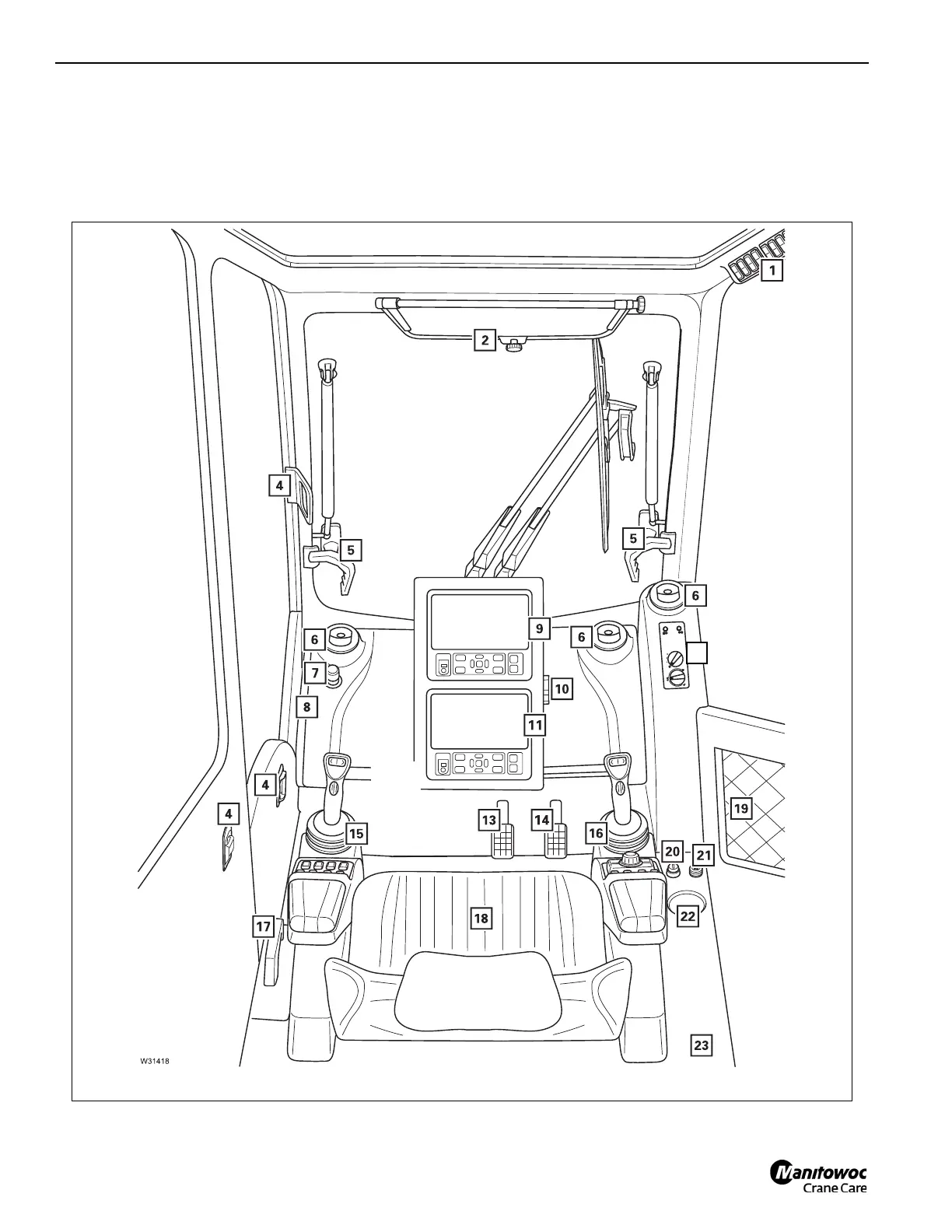

Superstructure cab
8854
24
FIGURE 3-8
8854
