Manitowoc Grove TMS9000-2 Series User Manual

4-89
TMS9000-2 OPERATOR MANUAL OPERATING PROCEDURES
4
Published 02-21-2019, Control # 611-05
GROVE
4. Unlock the other side of the telescopic section using the
same procedure.
Once the pins are retracted, use your external means
(second crane, forklift, etc.) to retract that section and then
remove the bolts to pin that section in a retracted state. Move
to the next section to be retracted (as necessary).
Locking Telescopic Sections
1. Retract the telescopic section until the locking pin (1,
Figure 4-193) is in the middle of the opening.
2. Remove the screw from the bore hole (4).
The locking pin (1) is then pushed out of the opening due to
spring tension.
3. Install the grease fitting into the bore hole.
4. Retract the telescopic section until the recesses (2) have
been set down on the telescopic section (3) above it.
WORK BREAK
In case of short work breaks
• Switch off the swing gear.

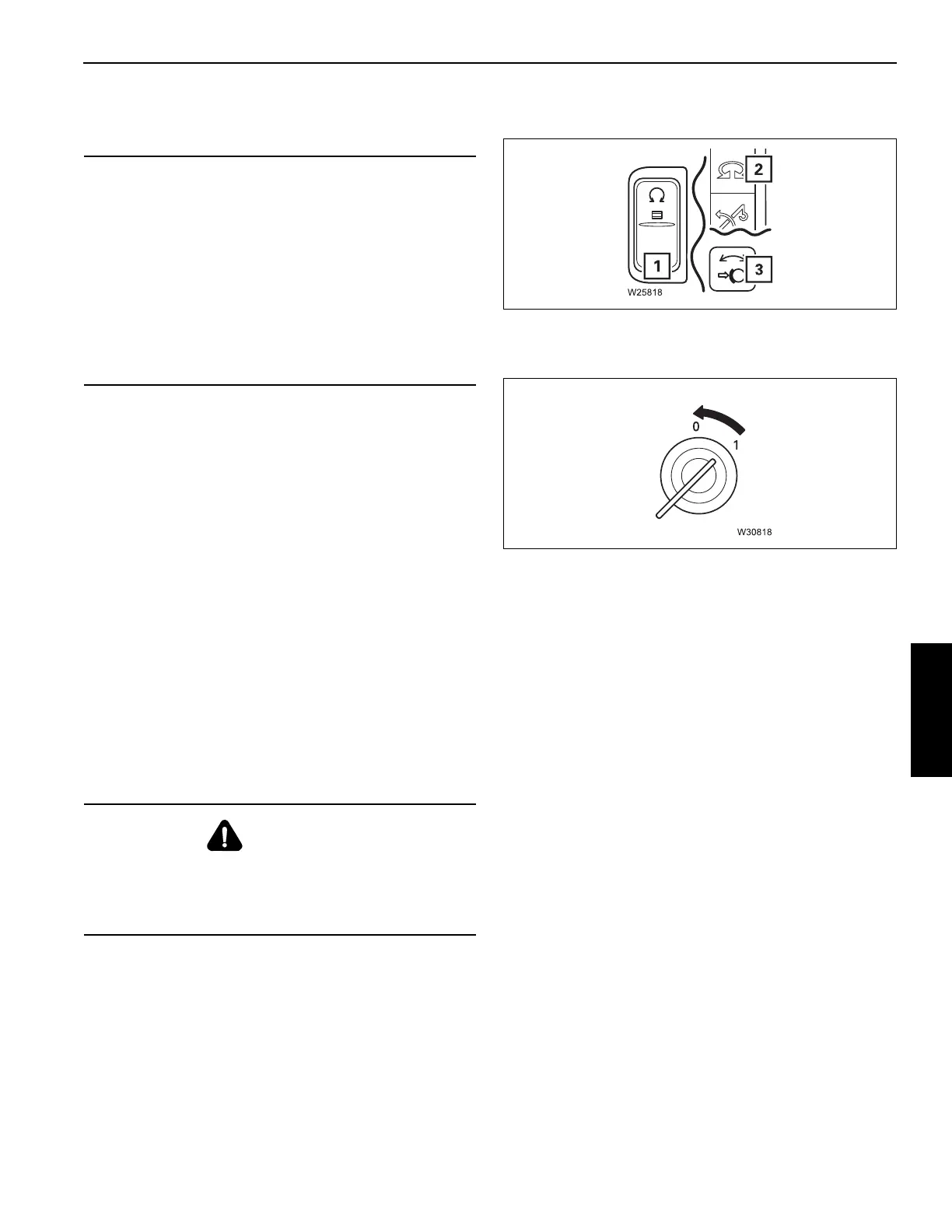

- The lamp in the switch (1, Figure 4-194) must be
dimly lit.
- Then symbol (2) turns red – swing gear switched off.
- Lamp (3) must light up – swing gear brake applied.
Switch the engine off, turn the ignition key to position 0 and
remove it (Figure 4-195).
Ensure that no unauthorized persons can operate the truck
crane, refer to To secure the truck crane, page 4-89.
In case of work breaks of more than 8 hours
• Retract all telescopic sections.
• Lower the main boom.
• Switch off the swing gear.
- The lamp in the switch (1, Figure 4-194) must be
dimly lit.
- Then symbol (2) turns red – swing gear switched off.
- Lamp (3) must light up – swing gear brake applied.
Switch the engine off, turn the ignition key to position 0 and
remove it (Figure 4-195).
Switch off all current devices.
To secure the truck crane
• Secure the truck crane against unauthorized use by:
- stowing away the hand-held control in the crane
cab,
- removing the ignition key and
- locking both cabs.
CAUTION
Risk of damage in the event of a mechanically
released lock!
Under no circumstances may you operate the telescoping
cylinder as long as the lock is mechanically released.
Therefore unscrew all screws out of the bore holes
immediately after finishing the repair work.
In this way, you prevent the telescoping cylinder from
hitting the locking system and consequently damaging it.
Do not unlock a section and then boom up until it slides in.
Damage to equipment will result.
WARNING
Never leave the crane with a load suspended. Should it
become necessary to leave the crane, lower the load to
the ground and stop the engine before leaving the
operator’s station.
8849-236
FIGURE 4-194
8849-237
FIGURE 4-195
