TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
• Turn both handles down – pegs (2) located behind the
holder (3).
Rear window
Opening
• Raise the handle (1, (Figure 3-230)).
• Push window outwards.
Closing
• Pull in window.
• Push down handle (1).
Superstructure cab door
From outside
Unlock
• Turn the key in direction A (Figure 3-231).
Lock
• Turn the key in direction B.
Open/close
• Pull the handle (1).
• Slide the door.

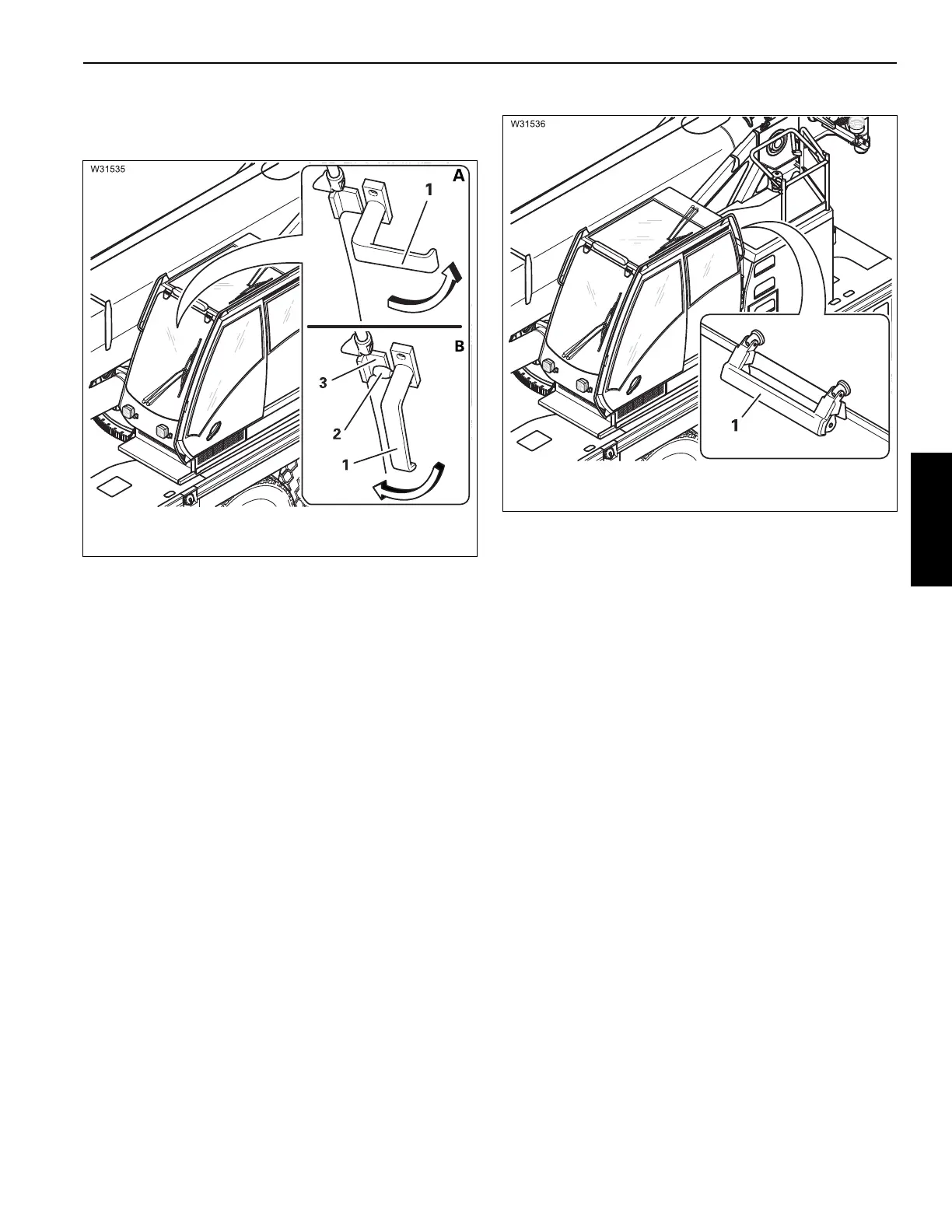

FIGURE 3-229
8854-249
FIGURE 3-230
8854-250
