Switching the boom position indicator light on and
off
Removing
You must remove the rod with the anemometer/boom
position indicator light before driving on the road.
• Switch off the boom position indicator light.
• Remove the plug and close the sockets (4, Figure 6-69)
and (5) with the protective caps.
• Wind the cables on to the holders (2).
• Remove the rod (1) from the holder (3).
• For transportation, fasten the retaining pins to the rod
(1).
OTHER RIGGING WORK
Cameras for crane operation
Camera on the hoists
A camera transmits an image of the main and auxiliary hoists
to the display in the crane cab.
Operating the camera
Switching on
• Switch on the ignition.
•
The image appears on the display after a few seconds.
Switching the cameras
• Select and confirm a symbol (Figure 6-70) to switch over
between the cameras.
To switch on:
Select symbol (1, Figure 6-68) and
confirm – symbol ON is displayed
To switch off:
Select symbol (2) and confirm – symbol
OFF is displayed

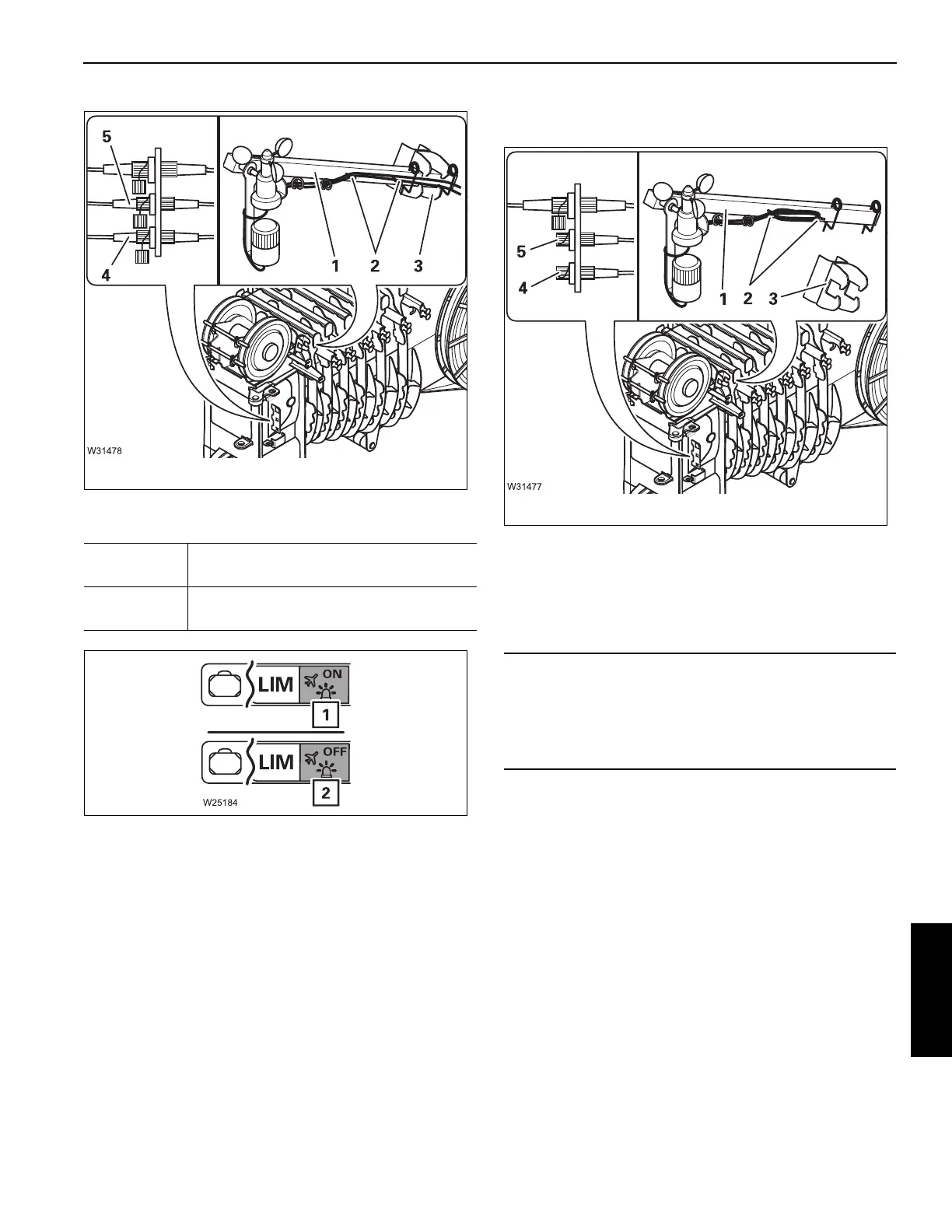

FIGURE 6-67
8851-44
FIGURE 6-68
8851-45
CAUTION
Machine Damage!
Always retract the camera before driving. When the
camera is extended, the overall height specified for on-
road driving is exceeded.
FIGURE 6-69
8851-46
