OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-14 Published 02-21-2019, Control # 611-05
OUTRIGGER CONTROLS AND INDICATORS
The following paragraphs describe the additional controls
and indicators located on the carrier to operate the
outriggers. The numbers in parentheses ( ) represent the
index number from the outrigger panel illustration.
Outrigger Control Summary
NOTE: Outrigger controls are only active when the engine
is turned on and the park brake is set.
There is an outrigger control panel located on each side of
the crane carrier. Each control panel contains switches for
extending and retracting the outrigger beams on that side of
the crane, and for raising and lowering the outrigger jack
cylinders on both sides of the crane. Each control panel also
contains a control switch for raising and lowering the center
front jack.
A push button emergency stop switch (6, (Figure 3-7)) is
installed on the panel.
A bubble level is installed at the bottom of the outrigger
panel.
NOTE: Outrigger functions on controller are de-activated
when the emergency stop switch is activated,
which also turns off the engine and all hydraulic
functions.
Outrigger Control Panel
There is one outrigger control panel (1) on each side of the
crane’s frame. The panel on the right side operates the
outrigger beams for that side only. The panel on the left side
operates the outrigger beams for that side only. The jacks
may be operated from the left or right side of the crane.
Outrigger Beam Selector Switch
The outrigger beam selector switch (2) is used to select the
desired operation of the front or rear outrigger beam for the
side of the unit the control panel is on.
Extend Switch
The extend switch (3) will operate both the outrigger beams
or the jacks. After pushing the desired selector switch,
pushing the extend switch will move the selected component
in the extend direction.

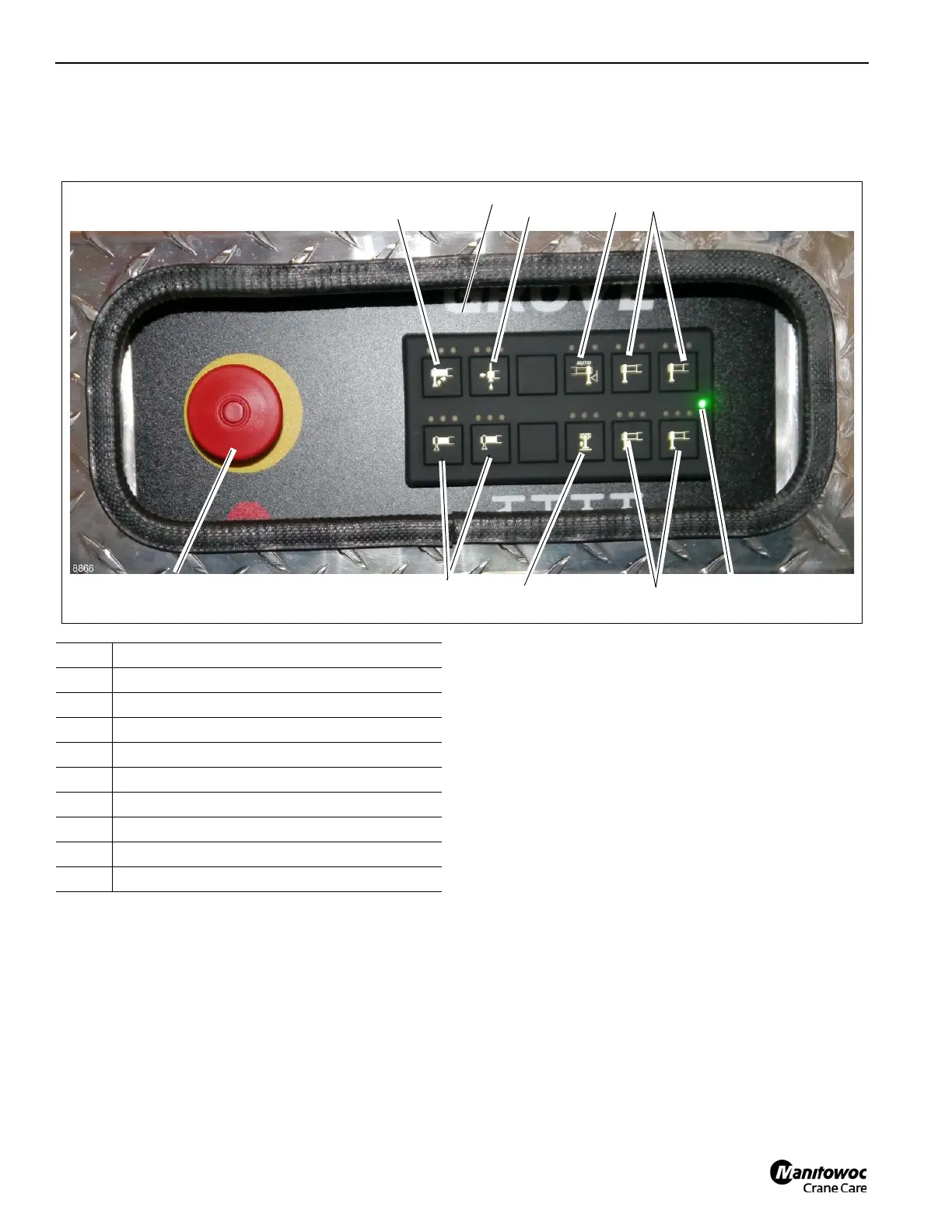

Item Description
1 Outrigger Control Panel
2 Outrigger Beam Selector Switch
3 Extend Switch
4 Center Front Jack Switch
5 Jack Selector Switch
6 Emergency Stop Switch
7 Retract Switch
8 Power Indicator
9 Auto Switch
