LUBRICATION TMS9000-2 OPERATOR MANUAL
5-16
Published 02-21-2019, Control # 611-05
ITEM
NUMBER
LOCATION NAME
APPROX.
CAPACITY
LUBE SPEC NOTES
SERVICE
POINTS
SERVICE SERVICE HOURS
REAR AXLES
17
REAR WHEEL
PILOTS
--------------- 6829003689 17 8 BRUSH ON SEE NOTE 18
18
FRONT REAR
AXLE BOWL
--------------- 6829012964 2 1 CHECK & FILL 250 HRS
20.5 QTS 6829012964 2, 3, 13, 14 1 DRAIN & FILL 2 YRS/50000 MI
18b
DIFFERENTIAL
FILTER
--------------- --------------- 22 1
CHANGE
FILTER
2 YRS/50000 MI
19
REAR REAR AXLE
BOWL
--------------- 6829012964 2 1 CHECK & FILL 250 HRS
19.5 QTS 6829012964 2, 13, 14 1 DRAIN & FILL 2YRS/50000 MI
20
REAR AXLE
BRAKE SLACK
ADJUSTERS
--------------- 6829003477 8 4 LUBE 1000 HRS
8885-7

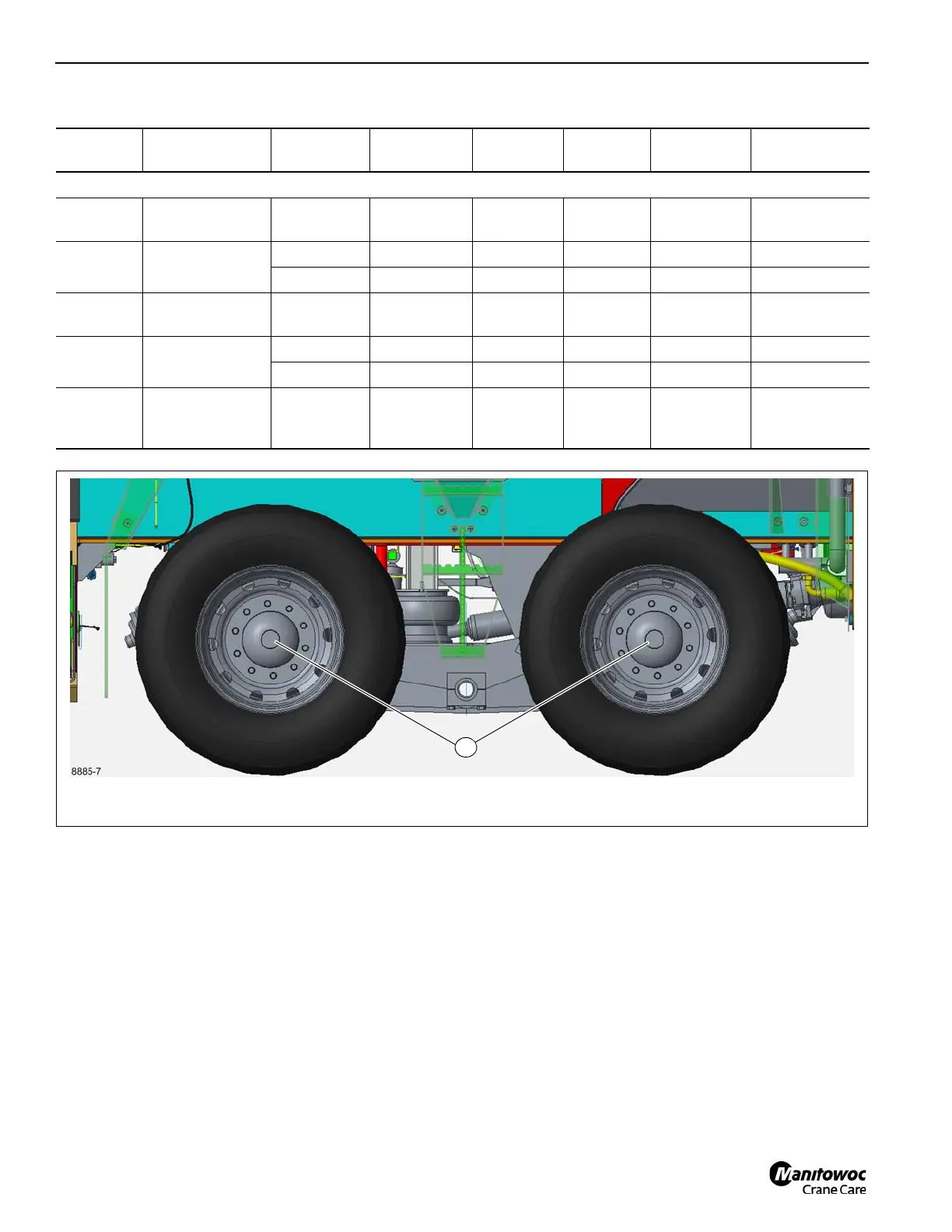

FIGURE 5-9
17
