GROVE 6-57
TMS9000-2 OPERATOR MANUAL SET-UP AND INSTALLATION
Published 02-21-2019, Control # 611-05
made in order to connect the 59 ft extension wiring and to
connect to an anti-two block switch.

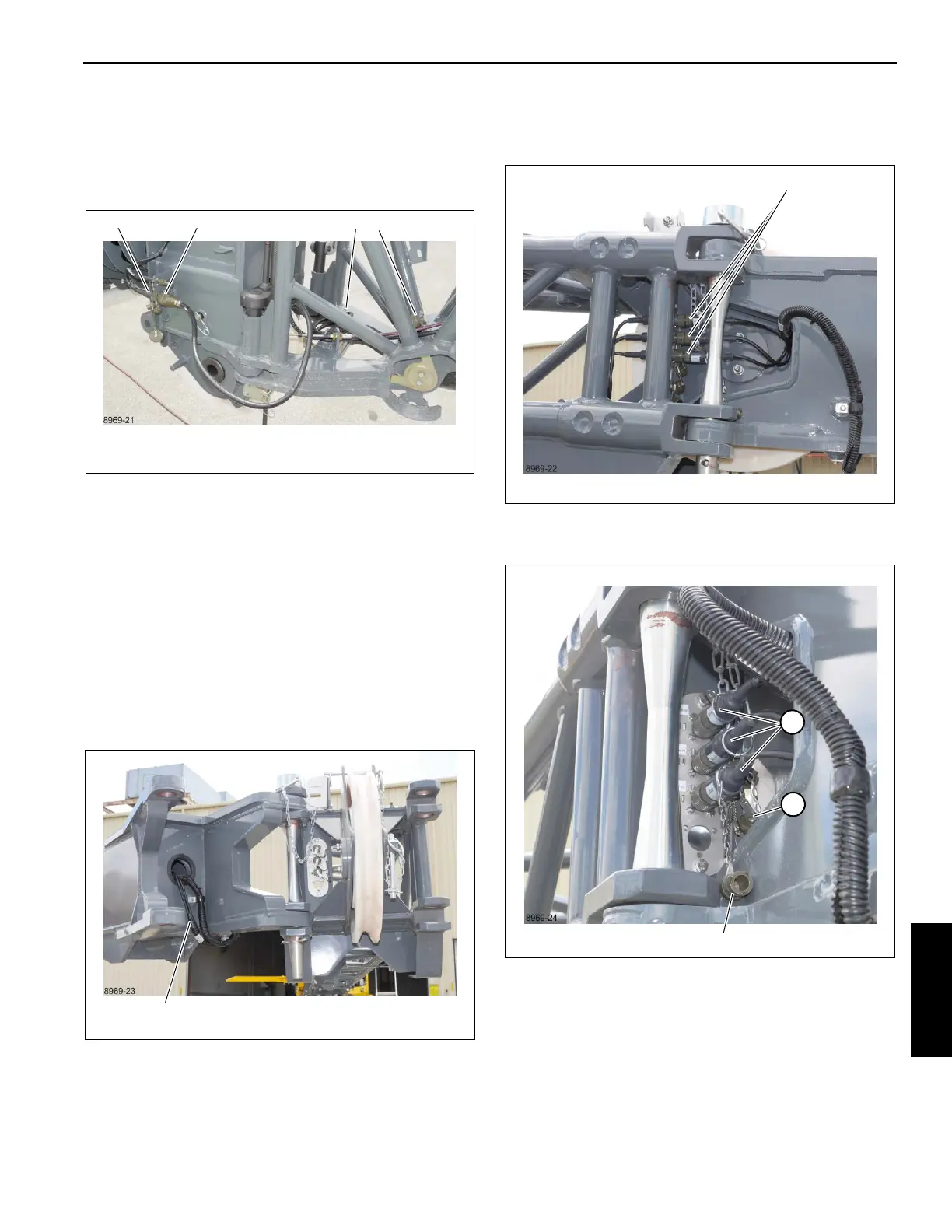

1. Remove the plug (1, Figure 6-110) from the storage
socket (2) and unwind the cable from the storage
location (3). Connect the plug (1) to the socket (4).
This connects the extension to the main boom circuit.
2. Wind the cable around the storage location (3) such that
it will not be damaged during crane operation.
58 ft (17.7 m) Extension Electrical Connections
The following procedure connects the 23 ft (7 m) extension
wiring to the 35 ft (10.5 m) extension wiring for operation of
the 58 ft (17.7 m) extension. This connection must be made
in order to connect any electrical devices and an anti-two
block switch.
1. Before swinging the fly extension in front of the base
extension, remove the wires (1, Figure 6-111) from their
stowed location.
2. Connect the plugs (1, Figure 6-112) to the sockets
making sure the plug wire number corresponds to the
socket number.
Disconnect Electrical Connections to the 58 ft (17.7
m) Base Extension
1. Remove the plugs (1) (Figure 6-113) from the sockets
and seal the plugs with their caps (2). Seal the sockets
with their caps (3).
2. Remove the bridging plug from the dummy socket and
plug it into the socket.
