GROVE 6-65
TMS9000-2 OPERATOR MANUAL SET-UP AND INSTALLATION
Published 02-21-2019, Control # 611-05
3. Install the pin (1) into the holder (2) and secure with
retaining clip.
4. Using the tag line to control movement of the extension,
swing it into the stowed position on the side of the 35 ft
(10.5 m) base extension.

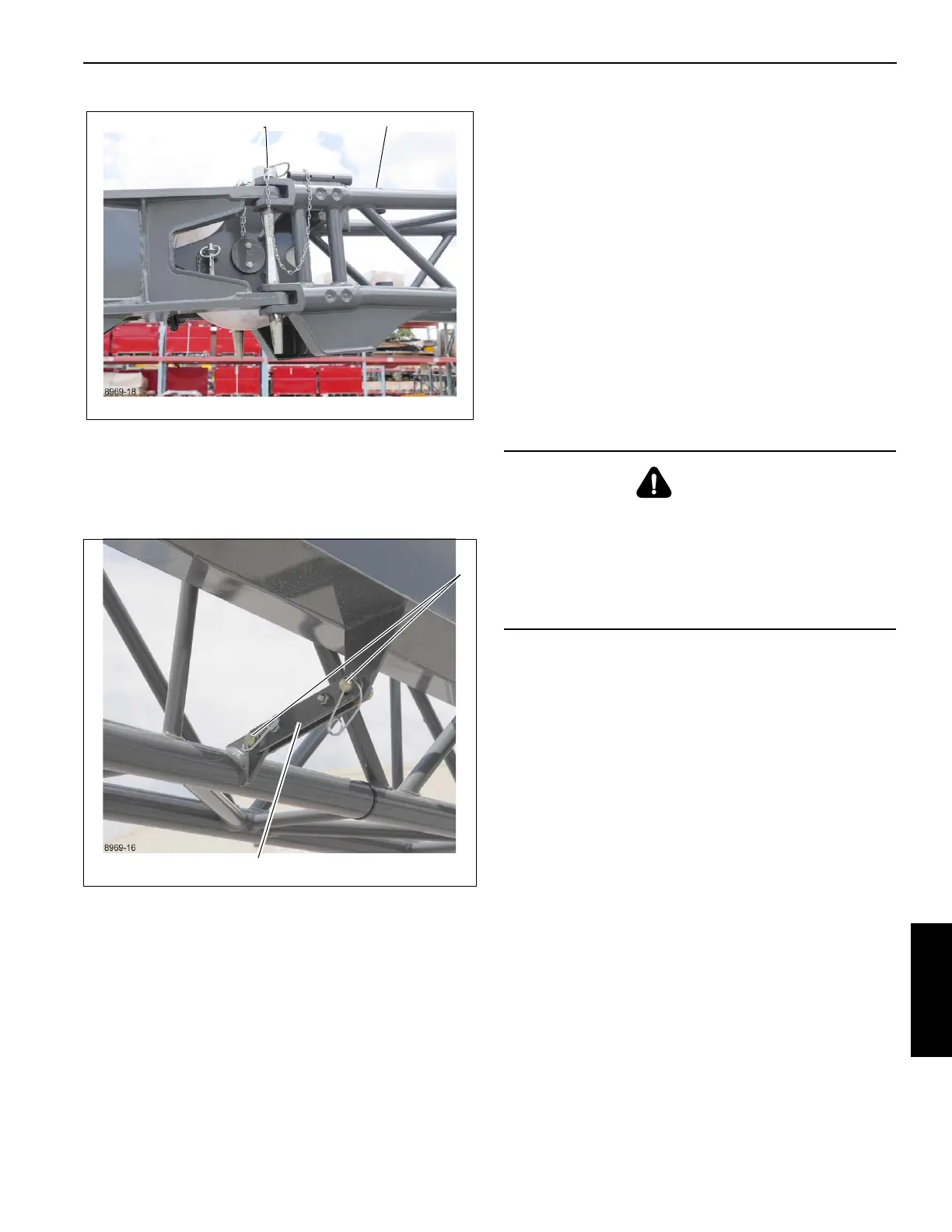

5. Secure the 23 ft (7 m) fly extension to the 35 ft (10.5 m)
base extension with the locking bar (1) (Figure 6-126)
and pins (2).
6. Secure the pins with the retaining clips.
NOTE: If the 23 ft (7 m) fly extension is being stowed on
the main boom and the 35 ft (10.5 m) base
extension will continue to be used, follow the next
procedure for stowing the 58 ft (17.7 m) base
extension in order to attach the 23 ft (7 m) fly
extension onto the main boom. Then refer to
Erecting Procedure: 35 ft (10.5 m) Base Extension,
page 6-45 to deploy the 35 ft base extension.
Stowing Procedure: 58 ft (17.7 m) Extension
In order to stow the 58 ft extension first perform the previous
procedure to stow the 23 ft (7 m) fly extension onto the 35 ft
(10.5 m) base extension.
Before stowing the extension ensure all electrical and
hydraulic lines are disconnected.
1. Lower the boom and attach a tag line to the front of the
35 ft (10.5 m) section. Have a helper hold the tag line to
prevent the extension from moving.
2. Release the retaining pin (1) (Figure 6-127) and fold out
the run-up ramp (2) until the locking pin (3)
(Figure 6-128) engages in the lug (4).
DANGER
Crushing Hazard!
Ensure the extension is pinned to the front of the main
boom or is secured against swinging around.
This will prevent the extension from swinging
inadvertently to the side of the main boom, causing
severe injury or death.
