SET-UP AND INSTALLATION TMS9000-2 OPERATOR MANUAL
6-80
Published 02-21-2019, Control # 611-05

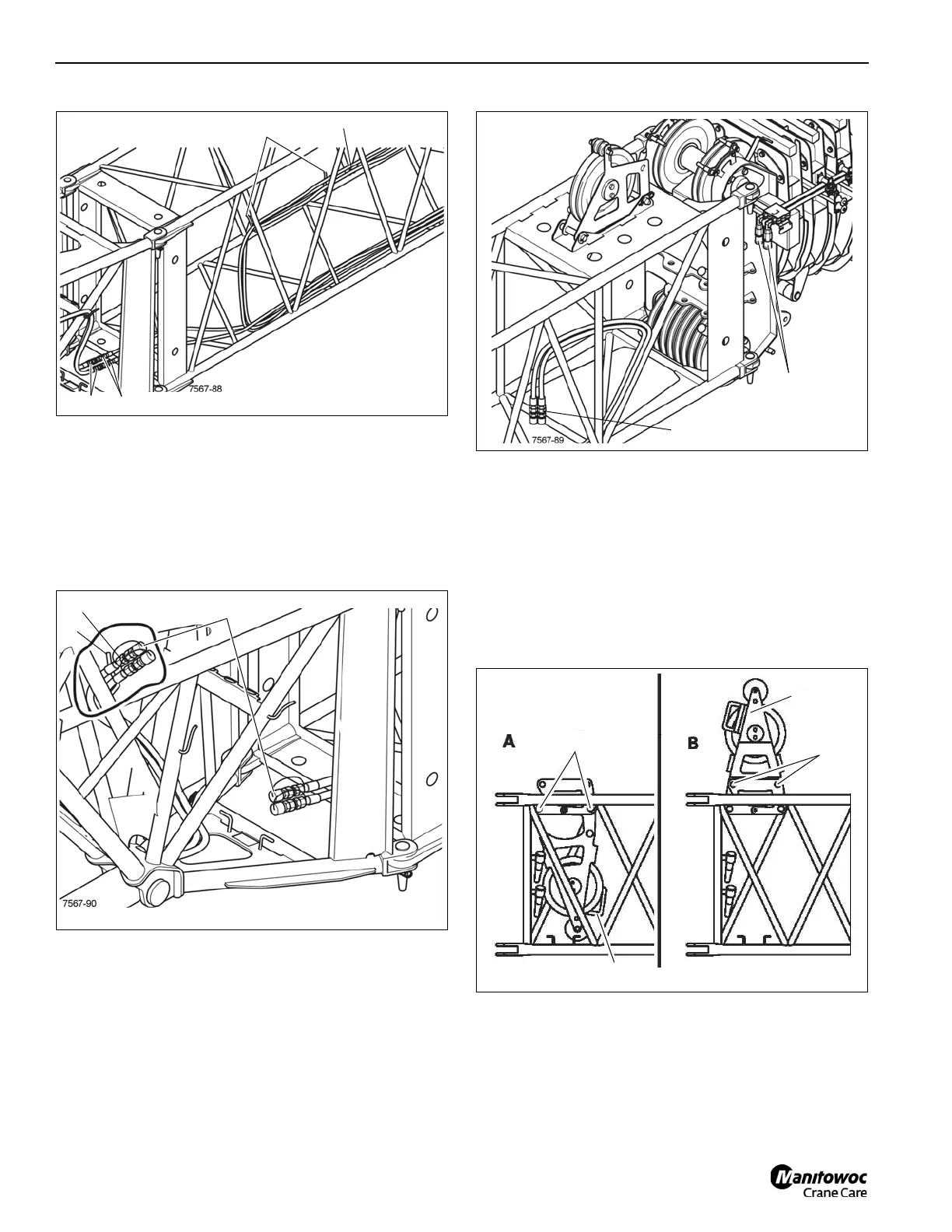

4. Secure the hoses (1) (Figure 6-164) to the holders (2) to
ensure the hoses are not damaged during operation.
Disconnecting the Folding Extension Hydraulics
1. Disconnect the hoses (3) from the long hose ends (4)
(Figure 6-166).
2. Install protective caps (1) (Figure 6-165) on the hose
ends.
3. Secure the hoses (2) to the holder (3) in the 35 ft (10.5
m) section.
4. Stow the long hoses (1) (Figure 6-164) on the holders
(2) provided.
5. Disconnect the short end hoses (1) (Figure 6-166) from
the 26 ft (8 m) extension from the boom nose connectors
(2).
6. Install protective caps on the hose ends.
Folding the Deflection Sheave on the 26 ft (8 m)
Extension
NOTE: For folding and unfolding the deflection sheaves on
the 36 ft section refer to Folding Deflection
Sheaves, page 6-61.
Folding Out the Deflection Sheave
1. Remove the retaining clips from the pins (3)
(Figure 6-167).
2. Hold the deflection sheave by the handle (1) and pull out
the pins (3).
