6-12

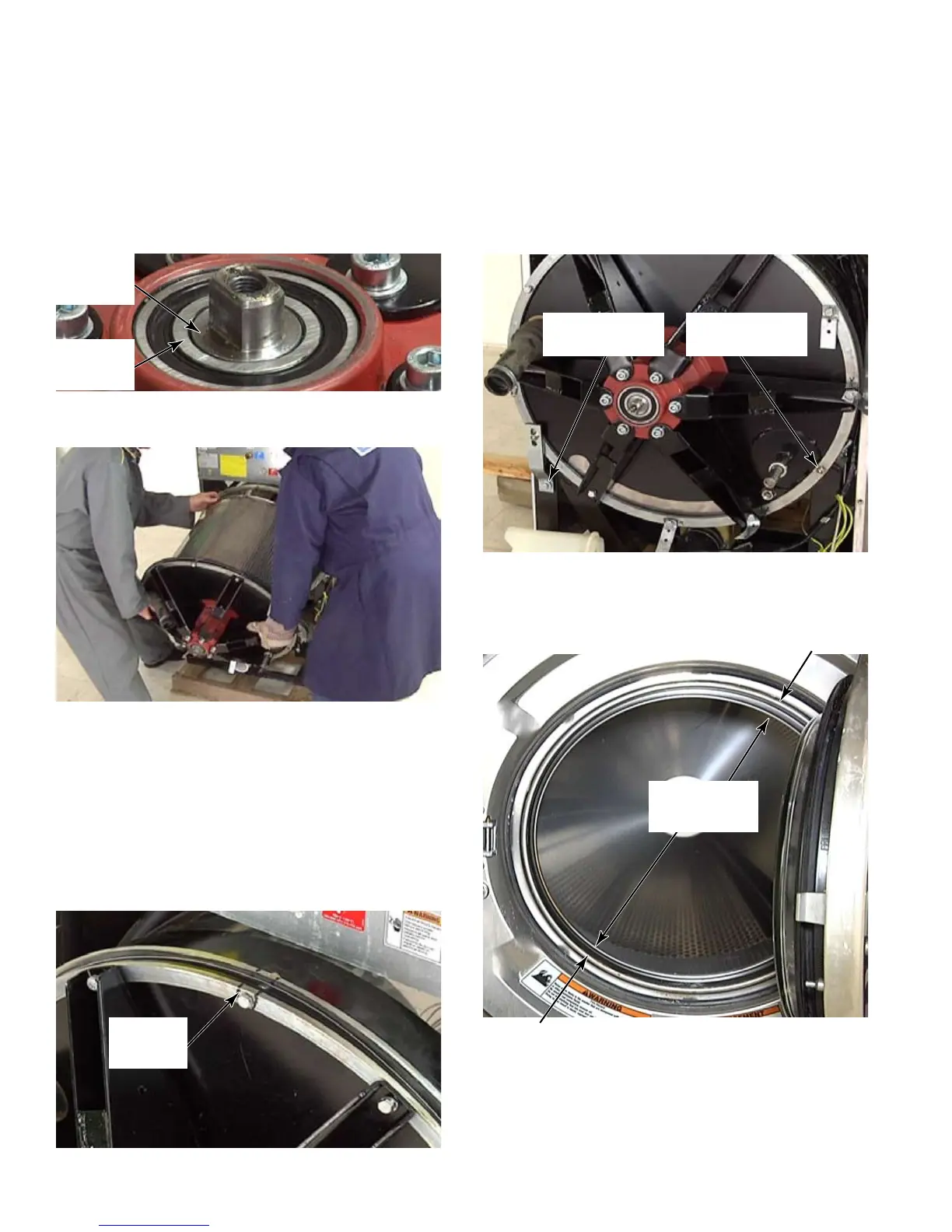

Reinstall the anti-rotation bracket and
reinstall a flat washer and nut on the bolt
coming through the frame and tub ring from
the inside out.
Look at the basket in the front of the
washer with the door open. Verify that the
basket is centered in the drum and that
there is an even gap around the opening.
26.
27.
Verify that the front shoulder of the basket
shaft is almost equal with the inner race of
the rear bearing, between 0 and .02 inch
(0 and 0.5mm)
Use two people to lift trunnion and basket
assembly and reinstall it in the washer.
Move the trunnion and basket assembly
forward into the drum. Make sure the mark
on the tub ring, indicating top, is oriented to
the top. Reinstall the nut on the top center
bolt in the tub ring.
Align all the bolts around the tub ring and
start a nut on each one when it is installed
correctly.
22.
23.
24.
25.
Mark
At Top
Anti-Rotation
Bracket Bolt
Bolt Through
Frame
Not
Centered
Basket
Shaft
Inner
Race
To Next Page
