MPC4 card
SETTING UP A MODBUS CONNECTION (CPUM SW VERSION 067 OR EARLIER)
8.6.2 Definition of outputs
The outputs listed in the third column of the configuration file (see Figure 8-7) can have
eleven possible values for MPC4 cards, as defined in Table 8-5.

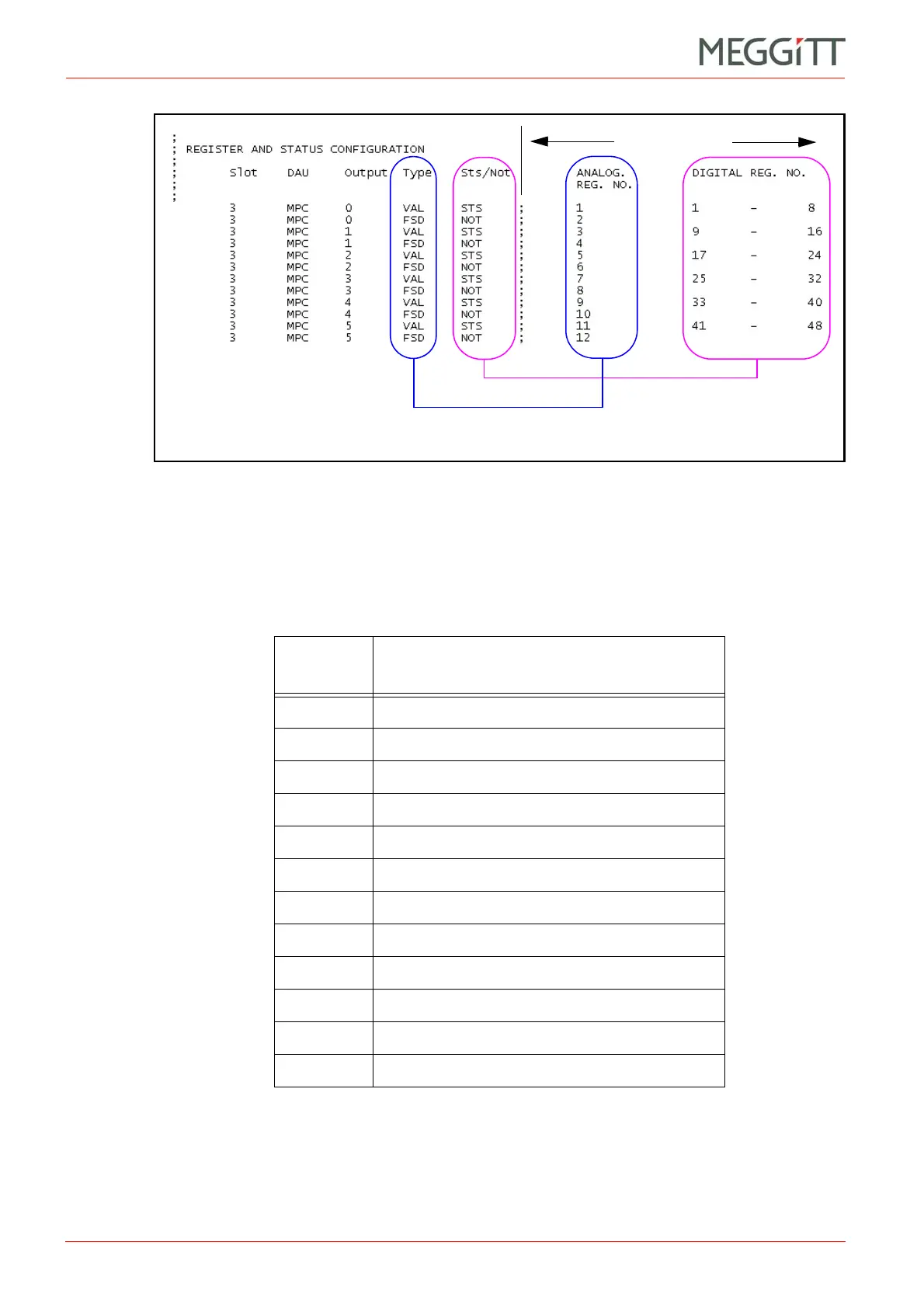

Figure 8-7: Extract from a typical configuration file
Analog values
Discrete values
Current number
Table 8-5: Output channel coding for the MPC4
Output
number
Definition
0 Measurement Channel 1, Output 1
1 Measurement Channel 1, Output 2
2 Measurement Channel 2, Output 1
3 Measurement Channel 2, Output 2
4 Measurement Channel 3, Output 1
5 Measurement Channel 3, Output 2
6 Measurement Channel 4, Output 1
7 Measurement Channel 4, Output 2
8 Dual-channel 1 and 2, Output 1
9 Dual-channel 3 and 4, Output 1
10 Speed Channel 1, Output 1
11 Speed Channel 2, Output 1
