VM600 networking manual MAVM600-NET/E 3 - 3
Edition 9 - February 2018
Identifying the firmware version of a CPUM card
SERIAL COMMUNICATIONS WITH A VM600 RACK
3- Configure the PuTTY serial session options, as shown in Figure 3-3.
4- Click Open to start the PuTTY session, then press the ENTER key.
5- When prompted for a login, type user (the default login), then press ENTER to continue.
For example:
login: user
When prompted for a password, type config (the default password), then press ENTER
to continue. For example:
password: config
6- After the login and password are accepted and the user is logged in, the command
prompt is displayed. For example:
/usr/user #
3.3 Identifying the firmware version of a CPUM card
It is important to know the version of the firmware running on a CPUM card as the networking
features, software compatibility, and configuration files and structure can be different,
depending on the firmware version (see 2 CPUM card directory structure and configuration
files).
However, the firmware version is given in the version.txt file for all CPUM cards.
1- Establish serial communications with a CPUM card as described in 3.2 Establishing
serial communications with a CPUM card.

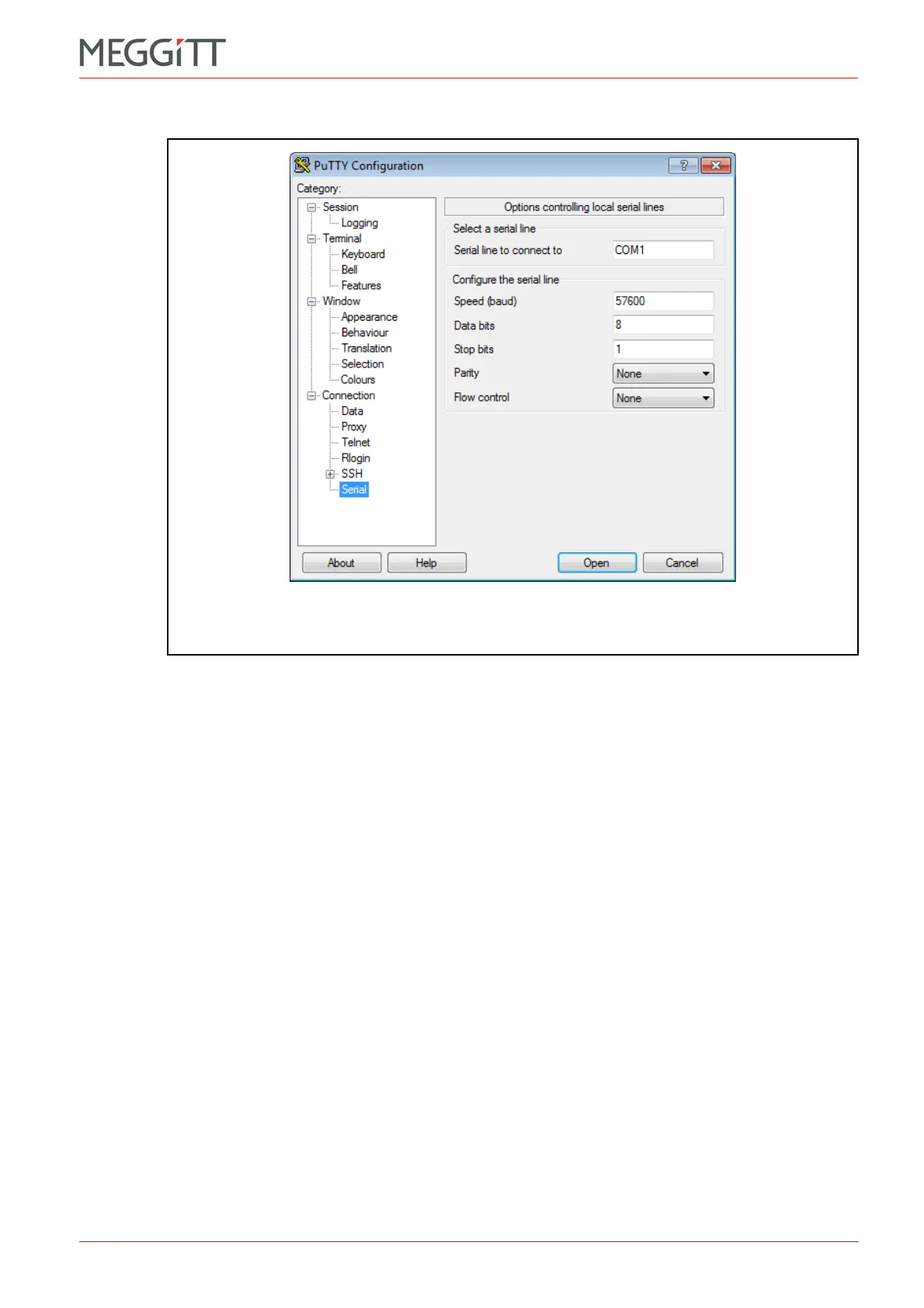

Figure 3-3: Using PuTTY terminal emulation software –
configuring a serial connection
