10 - 24 VM600 networking manual MAVM600-NET/E
Edition 9 - February 2018
Configuring a VM600 system for operation as a PROFINET IO-Device
SETTING UP A PROFINET CONNECTION (CPUM SW VERSION 081 OR LATER)
3- To change the name of a device that is already started, click on the device in the list of
Available Devices to select it and click the Assign Name button. (Alternatively, click
PLC > Ethernet > Assign Device Name.)
The Assign device name window appears.
4- Click on the device in the list of Available devices to select it, type the new device name
in the Device name column and click the Update button.
The device name will be updated.

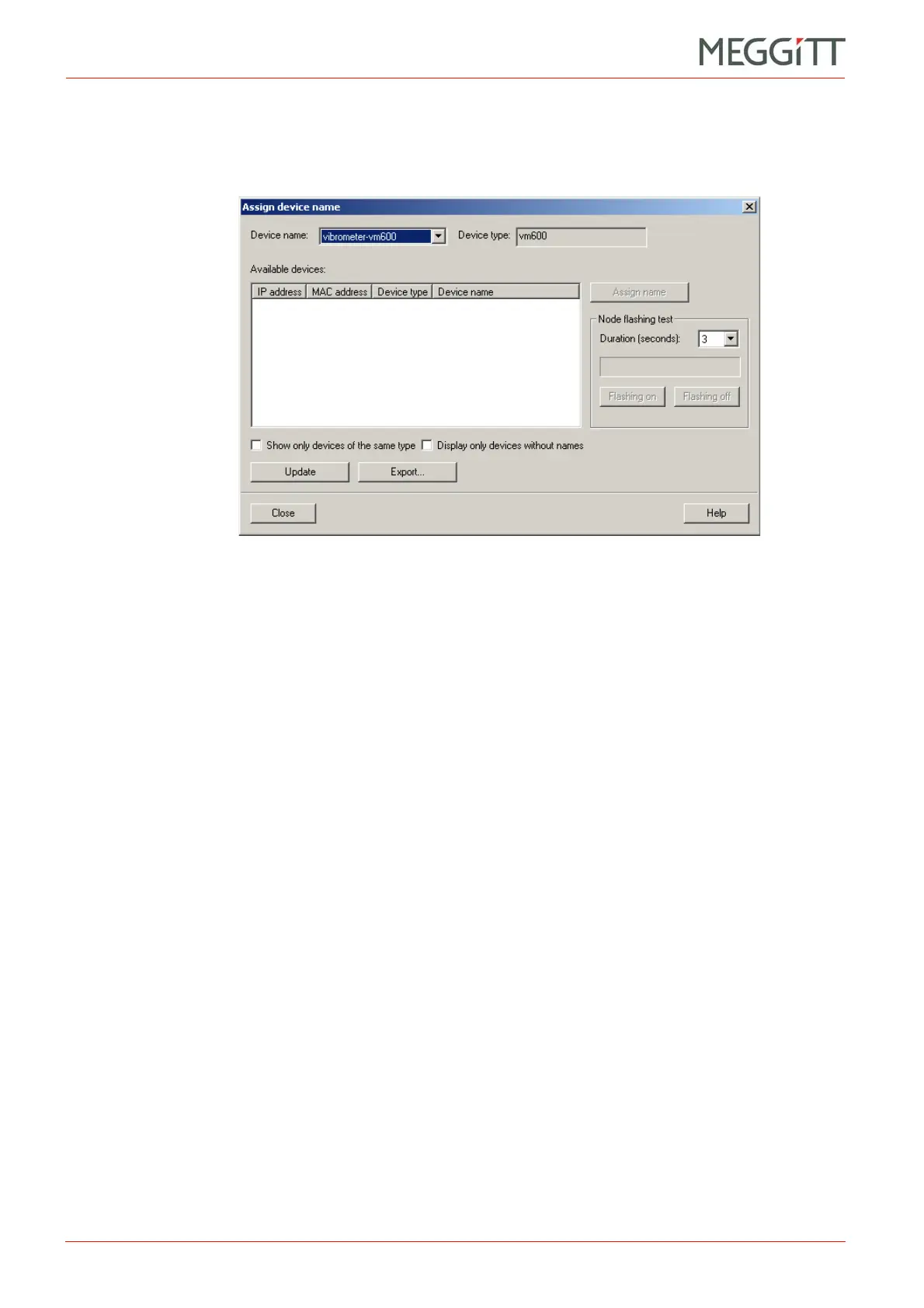

Figure 10-23: HW Config – the Assign device name window
