Meggitt VM600 User Manual

VM600 networking manual MAVM600-NET/E 1 - 3
Edition 9 - February 2018
Communication possibilities
VM600 NETWORKING INTRODUCTION AND OVERVIEW
Ethernet / TCP/IP (Rack configuration using VM600 software packages, for example, VM600 MPSx or VM600 CMS) Ethernet / Modbus TCP (Read discrete inputs and registers)
RS-232, RS-485/422 / Modbus RTU (Read discrete inputs and registers) Ethernet / TCP/IP (Rack configuration using VM600 software packages, for example, VM600 MPSx or VM600 CMS) RS-232 / Terminal emulation (Configure network adapters (IP addressing) and modify configurations such as Modbus, NTP and/or XMx16)
Distributed control system (DCS)
(1a)
(2)
(4)
(1b)
(5)
VM600 rack
RS-232 / Proprietary protocol (Rack configuration using VM600 MPS1 configuration software)
(6)
Ethernet network

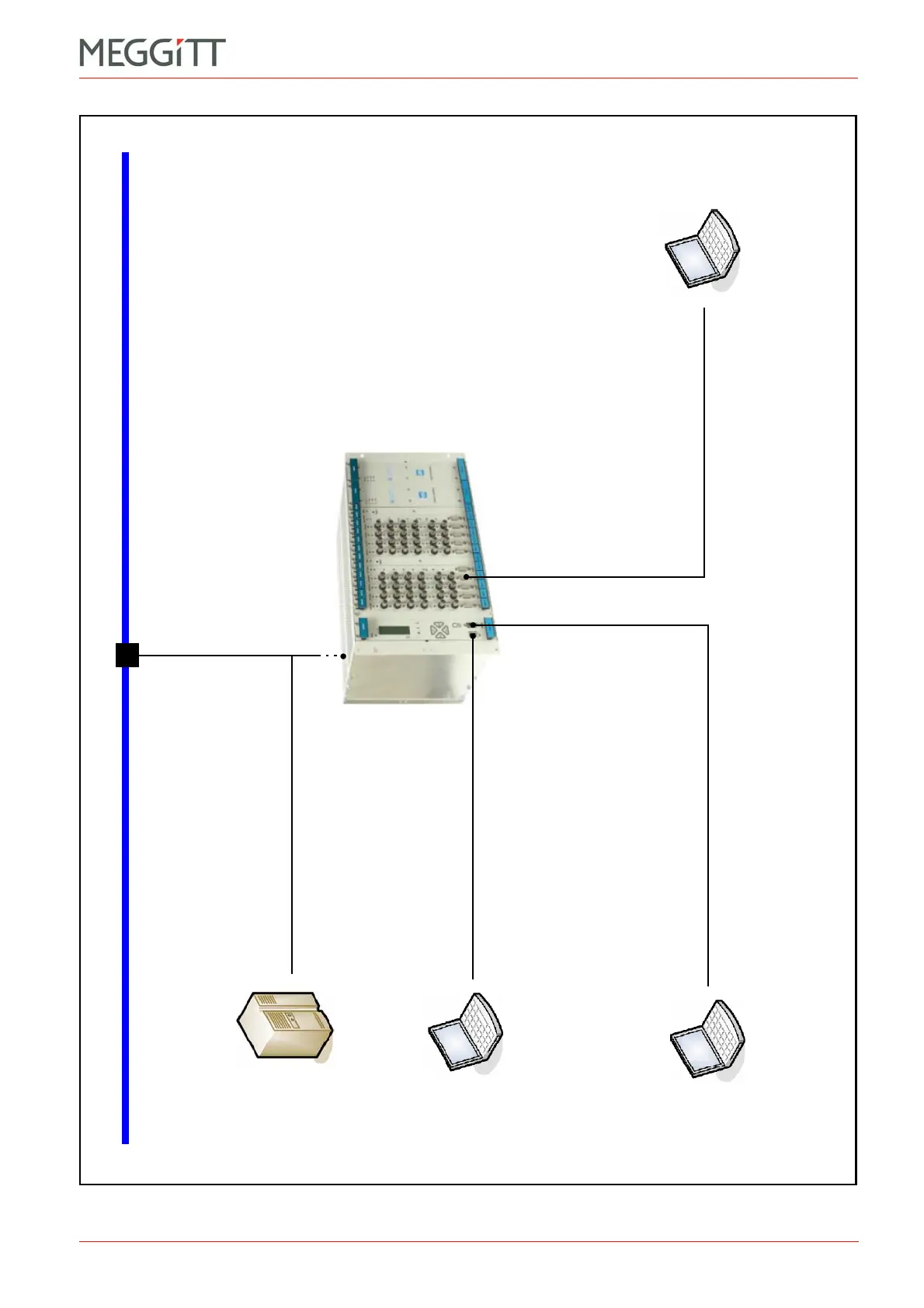

Figure 1-1: Overview of communications possibilities
Industrial Ethernet / PROFINET (Read discrete inputs and registers)
(3)
Ethernet / CPUM Configurator
(1c)
Ethernet / Terminal emulation (Configure network adapters (IP addressing) and modify configurations such as Modbus, NTP, XMx16)
(1d)
