MICRO-EPSILON CS02 User Manual

Page 28
Installation and Assembly
capaNCDT 6200

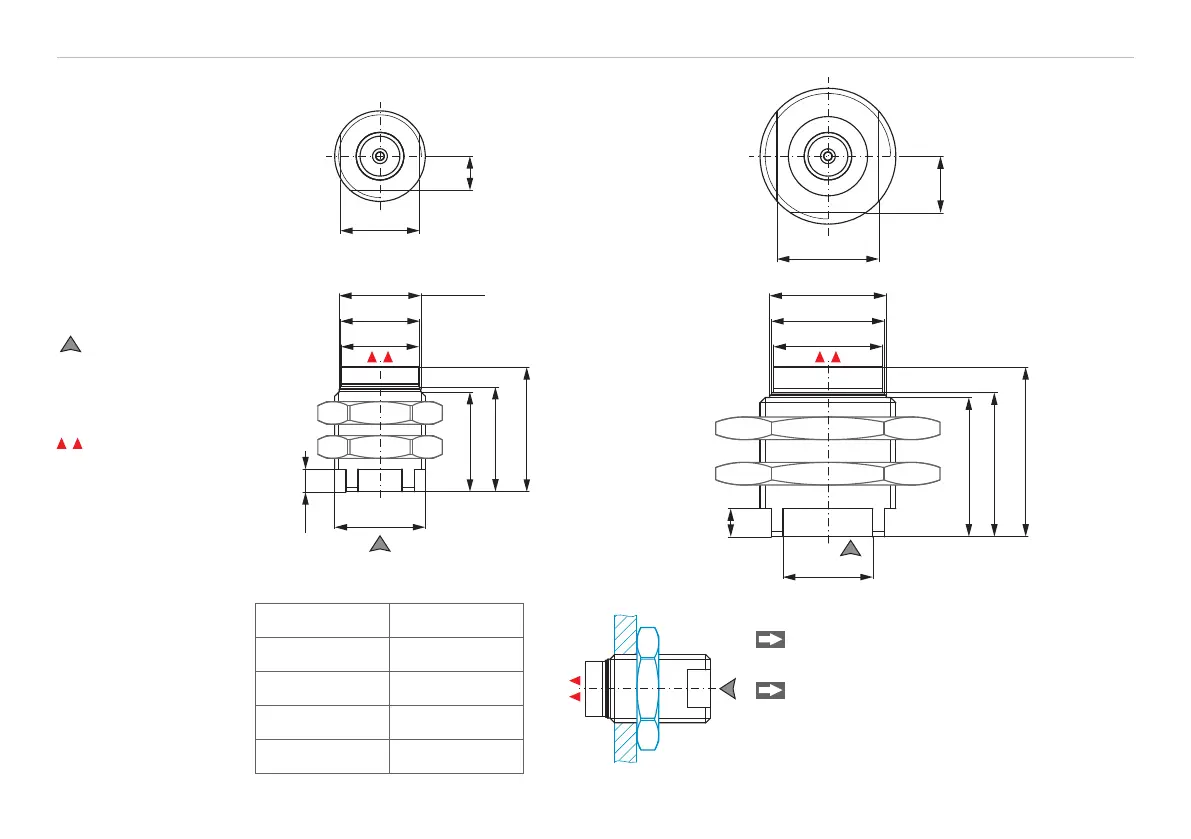

CSE2/M16 CSE3/M24
18.5
22.0 (.87)
17.6
25.5
30.0 (1.18)
24.6
M16x1
M24x1.5
4.0
(.16)
5.0
(.20)
ø13.7
ø14.0
ø14.4 (.57 dia.)
ø19.2
ø20.0
ø20.6 (.81 dia.)
6.0
(.24)
10.0
(.39)
WS14
WS18
Sensor Torque
Preferred mounting:
Screw the sensor into the sen-
sor holder.
Turn the mounting nut on. Do
not exceed torques.
CSE05/M8 2.5 Nm max.
CSE1,5/M12 10 Nm max.
CSE2/M16 20 Nm max.
CSE3/M24 70 Nm max.
Connector side
Dimensions in mm
(inches)
Active measuring
surface sensor
Dimensional drawings
of other sensors are
available on request.
