MICRO-EPSILON CS02 User Manual

Page 29
Installation and Assembly

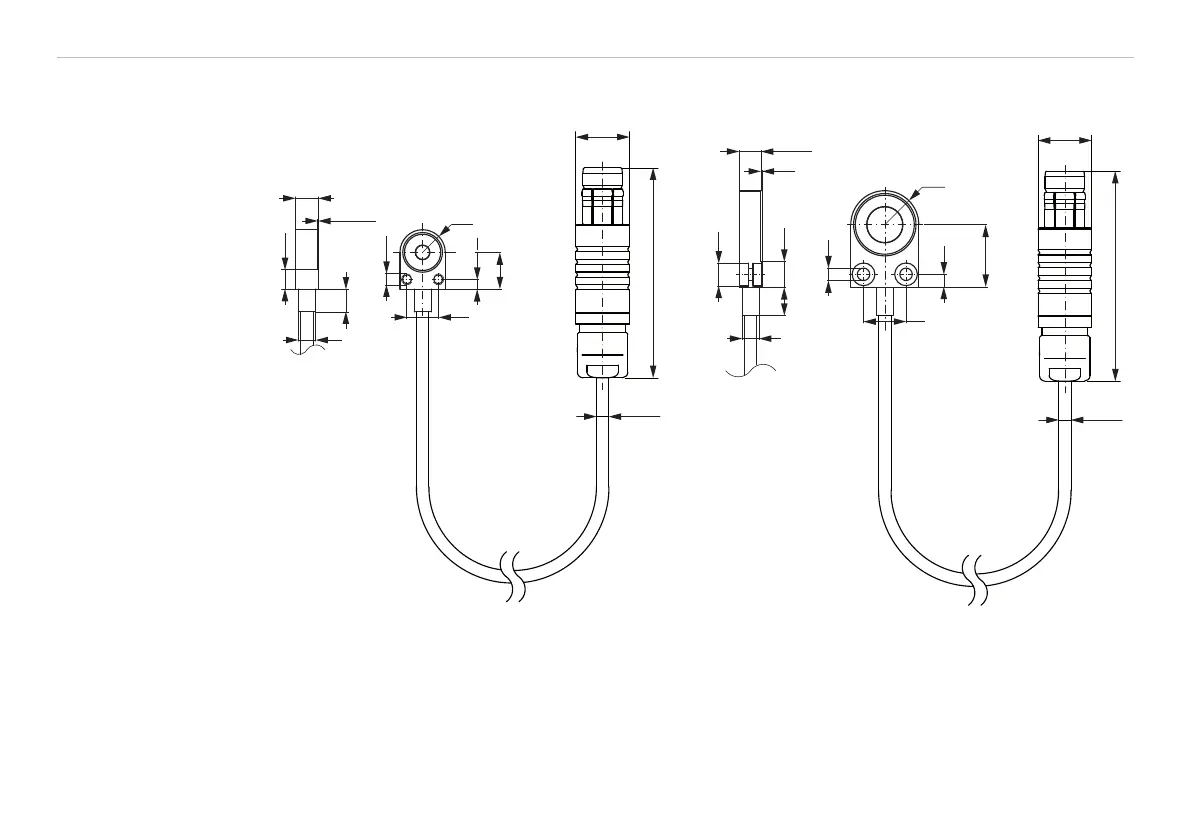

capaNCDT 6200
Flat sensors
M2
3.5 (.14)
4
(.16)
5.5
(.22)
R4
CSH02FL-CRmx,
CSH05FL-CRmx
6.5
(.25)
4 (.16)
0.1 (.003)
ø3
(.12 dia.)
1.75
(.07)
ø2.2
(.09)
appr. 37 (1.46)
appr. 9.4
(.37)
CSH1FL-CRmx,
CSH1.2FL-CRmx
11 (.43)
2.25 (.09)
4.5
(.18)
5
(.20)
7.5
(.29)
R6
(.24)
ø3
(.12 dia.)
0.1
(.003)
4 (.16)
ø2.5 (.10)
ø4
(.16 dia.)
ø2.2
(.09)
ca. 37 (1.46)
appr. 9.4
(.37)
Dimensions in mm (inches), not to scale
