3. Unlock the front printhead assembly by pushing the
printhead release lever and raise the printhead assembly to
a vertical position (see figure 5.1.1.b).

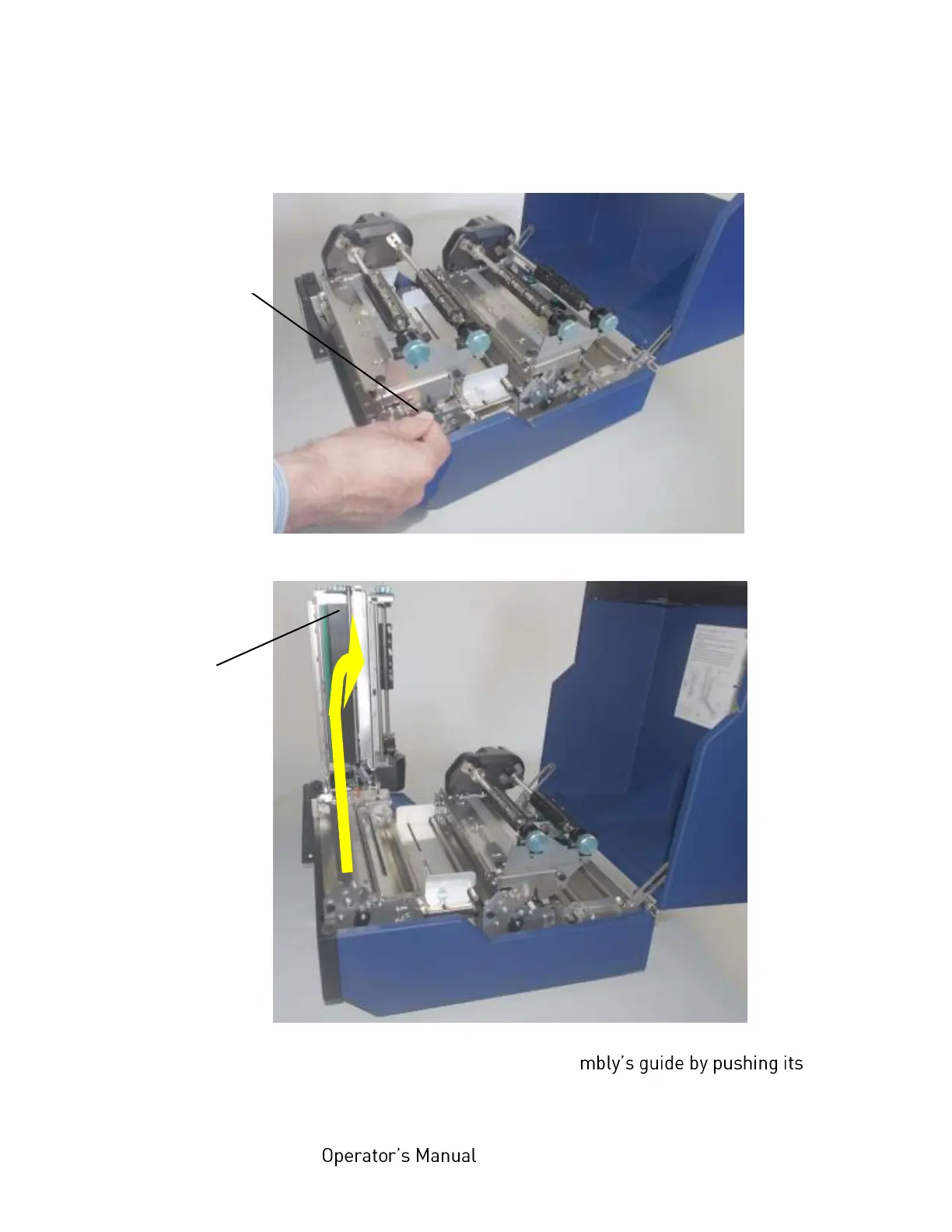

Fig. 5.1.1.b Unlocking the front printhead assembly
Fig. 5.1.1.c Raising the front printhead assembly
4. Unlock the front printhead asse
lever and raise the guide until it stops (as shown in figure
5.1.1.e).

Front
printhead
assembly
Front printhead
release lever
