Handling of Consumables 31
_________________________________________________________________________________________
_________________________________________________________________________________________
Microplex logiJET TC8 Edition 1.2

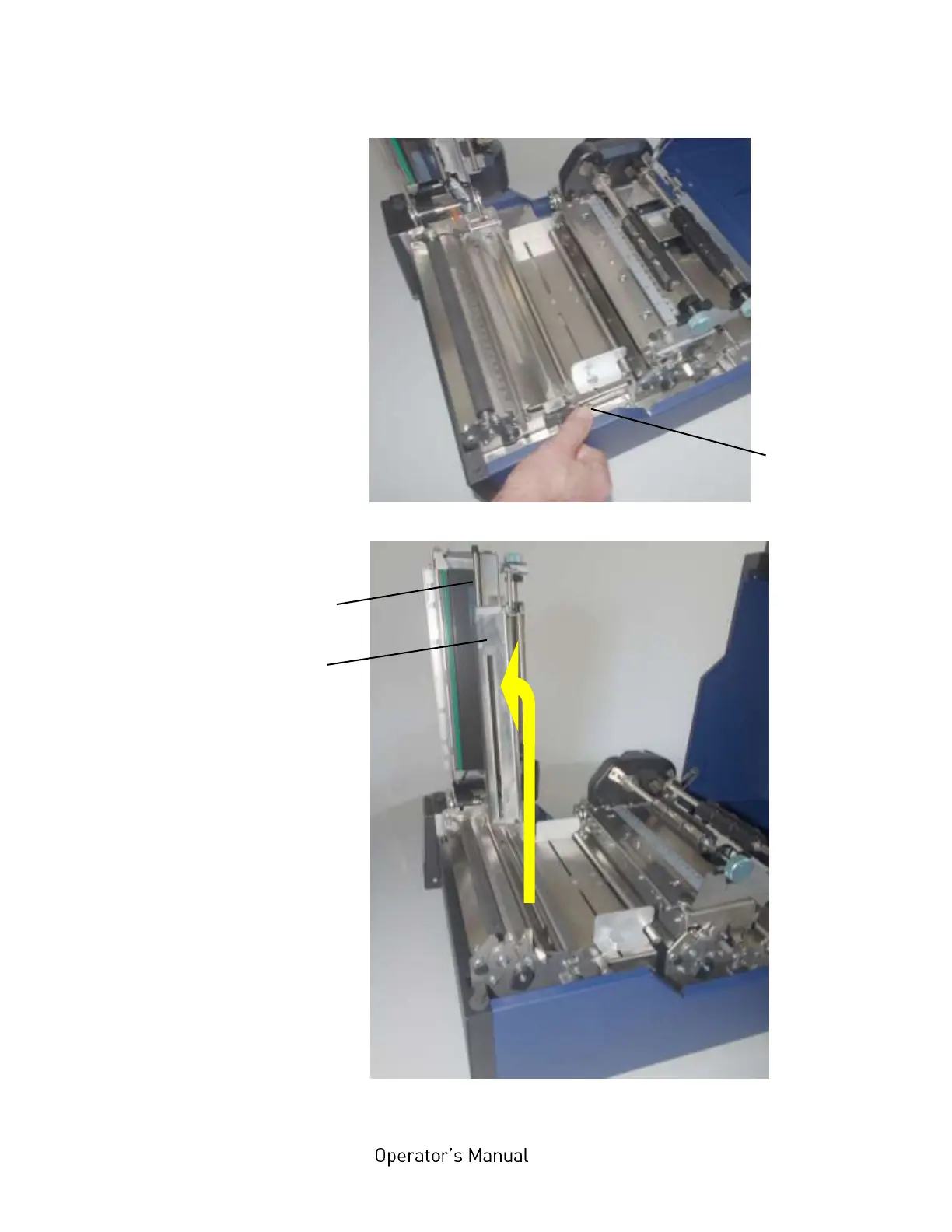

Fig. 5.1.1.d Unlocking the guide of the front print unit
Fig. 5.1.1.e Raising the front guide
Front
Printhead unit
Guide

Release lever
of the transpararent
sensor guide
