3-CONTROLSANDINSTRUMENTS

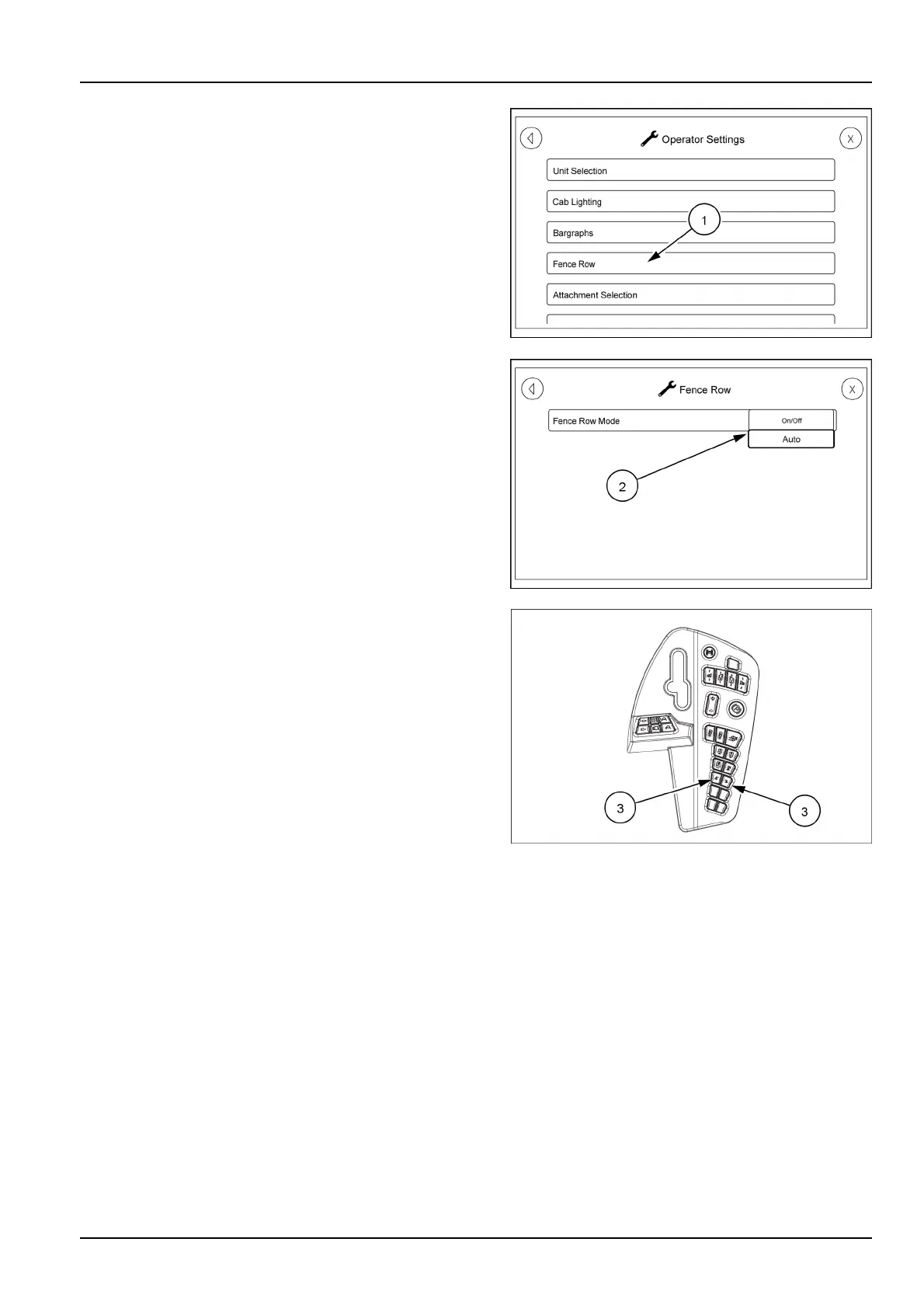

Returntotheoperatorsettingsscrollscreen.Touchthe

categoryFenceRow(1).

Thefencerowselectionscreenwillappear.Touchthe

fencerowiconandOn/OfforAutomenu(2)willpop-up.

Ifyouselecton/offtheright-handandleft-handsidefence

rownozzleswillbecontrolledbythefencerowswitches

(3)onthesideconsolebypressingtheswitchfortheside

desired.

Ifyouselectauto,theright-handandleft-handfencerow

nozzlesarecontrolledwiththeoutermostboomsection

onthatside.

RAIL17SP00144AA21

RAIL17SP00152AA22

RAIL17SP00307FA23

3-97
