– 5.23 –
5-3-11. ADJUST EDGE
[Function]
Size of the dead spaces on the left and right of the medium is adjusted.
Adjustment should be done to be printed on each right and left position from the both edge of
the Media.
The adjustment value will be stored under system parameter No. 3 and 2. (Left edge of the
paper = No.3, right edge of the paper = No.2)
• Because the adjustment pattern plots the drawing while detecting the medium
width, the medium of no plotting should be used during the adjustment. If the
medium which has been plotted should be used, the correct adjustment becomes
unavailable any longer.
• In this adjustment, the actual measured value is entered, but the value found from
the following formula is stored under the system parameter.
Adjustment value of the left end = 15mm - Actual measured value (mm)
(stored in increments of 0.1mm)
Adjustment value of the right end = 15mm - Actual measured value (mm)
(stored in increments of 0.1mm)
[Operation]
1) Select the “ADJUSTMENT” .
Press the
ENTER
key.
2) Select the “ADJUST EDGE ” pressing the
FUNCTION
key.
Press the
ENTER
key.

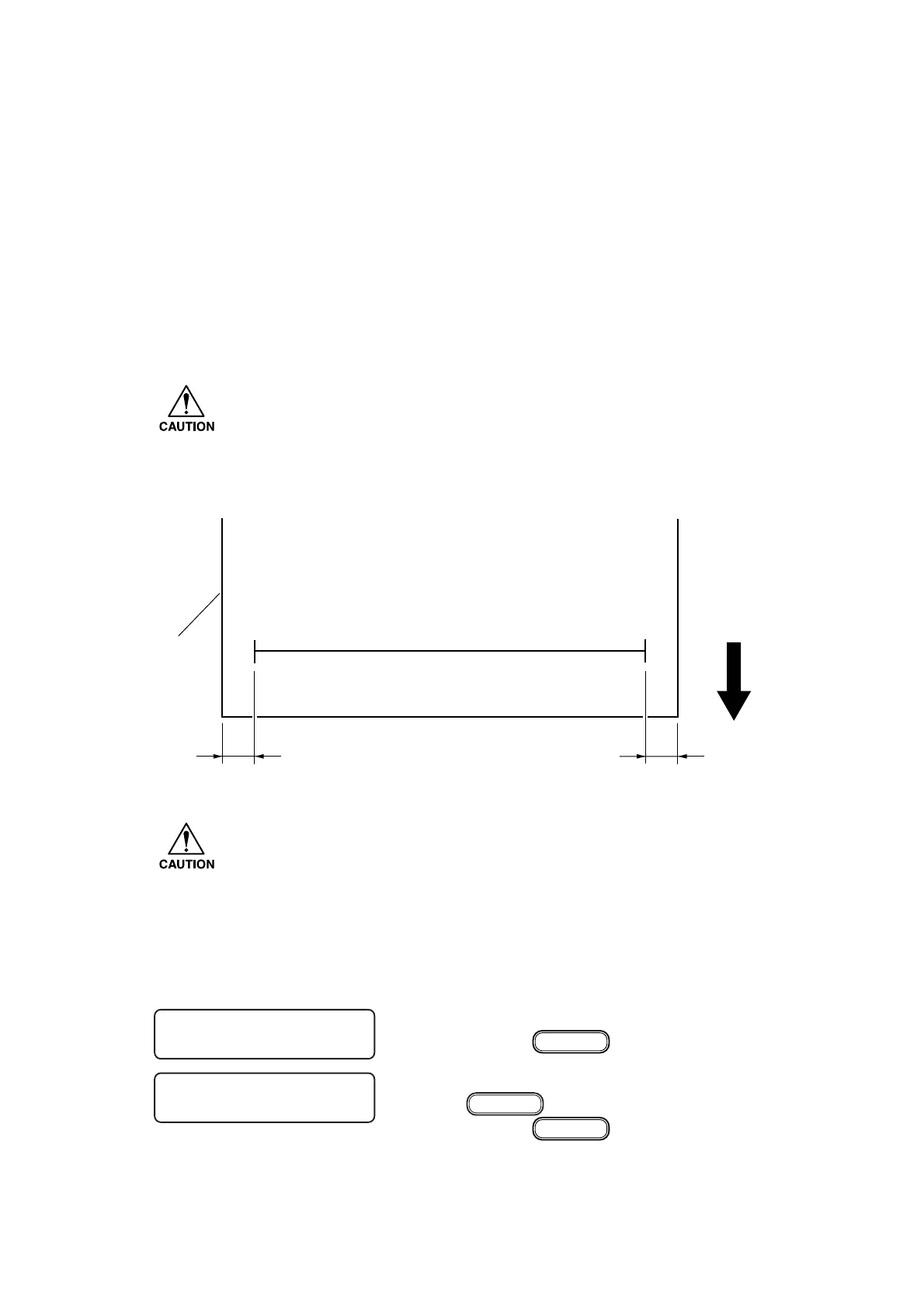

Medium
feeding
direction
Paper
L = 15 mm R = 15 mm
FUNCTION
# ADJUST < ENT >
# ADJUST
ADJUST EDGE < ent >
To Next Page
