– 4.26 –
4-2-12. Adjustment of the Y-motor belt tension
• Notes on Handling the Motor

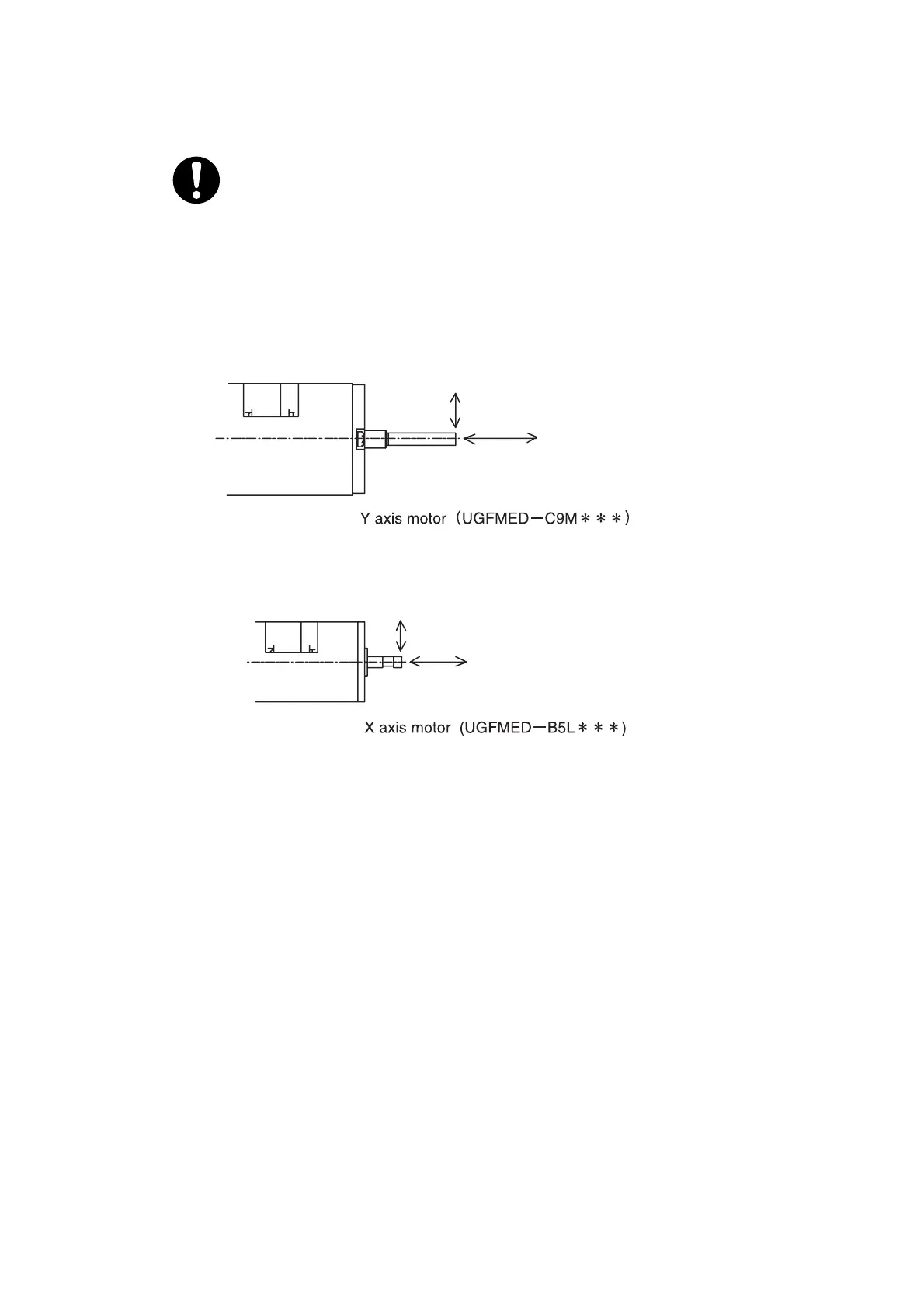

1. When handling the motor, set the load on the motor shaft as shown below.
Do not give a shock to the motor by hitting.
Allowable radial load : 19.6N (2.0 kgf) max
Allowable thrust load : 9.8N (1.0 kgf) max
Allowable radial load : 25N (2.5 kgf) max
Allowable thrust load : 19.6N (2.0 kgf) max
2. When replacing the motor, the bearing may happen to stick to the motor
shaft. If this occurs, extract the bearing with the pulley as a fulcrum.
If the motor itself is used as a fulcrum for extracting the bearing, an excess
thrust load may damage the motor.
To Next Page
