– 4.28 –

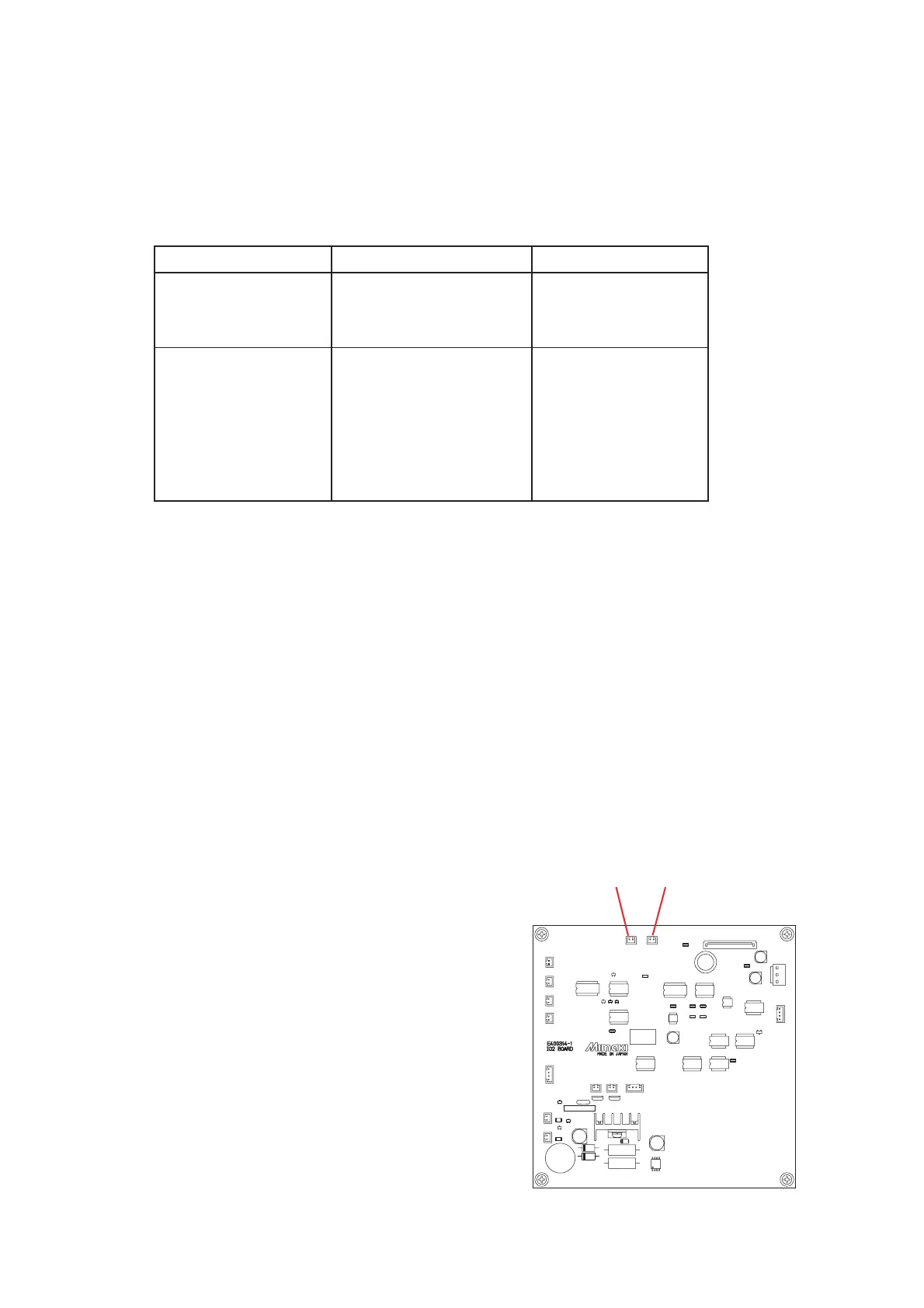

4-2-13. Heater Replacement
Heater replacement means to replace the print-heater or the preheater.
[Parts to be used]
160SP 130SPII, 130SL 75SPII
-Printheater -Printheater -Printheater
Wire heater P160 Wire heater P130 Wire heater P75
(E300367) (E300365) (E300402)
-Preheater -Preheater -Preheater
Wire heater 160SP-R1 Wire heater 130SP-R1 Wire heater R75
(E300379) (E300391) (E300406)
Wire heater 160SP-R2 Wire heater 130SP-R2
(E300380) (E300392)
CN22 CN23
[Tools to be used]
• Phillips screwdriver (No.2 for M3 to M5)
• Hexagon wrench (opposite side distance: 2.5 mm)
• Tester
-
Common replacement procedure : Printheater, Preheater
( Replace each heater after the following work:)
1) Turn off the power of the device, and disconnect the power code from the receptacle.
2) Remove the front cover assy.
3) Remove the platen cover F.
4) Remove instrumentation cover C at the back of the main unit.
5) Disconnect CN14 (Printheater thermistor) and CN15 (Preheater thermistor) of the IO2
PCB assy in the electric equipment casing.
6) Remove each code of the heater from clamp.
G
S
G
S
CN14
CN15
CN12
CN13A
CN13B
CN2
CN3
CN4
CN5
CN6
CN7
CN8
CN22
CN23
IO2PCB
CN14 CN15
To Next Page
