– 5.25 –
5-3-12. 500mmSQUARE
[Function]
Fix declination of coordinate of Y motor encoder and linear encoder.
The dimension of the Y-direction for the drawing itself will not be changed.
The adjustment values are stored under the system parameters No. 0 and 1. (X-direction =
No. 0, Y-direction = No. 1)
Adjustment of X-direction is not needed.

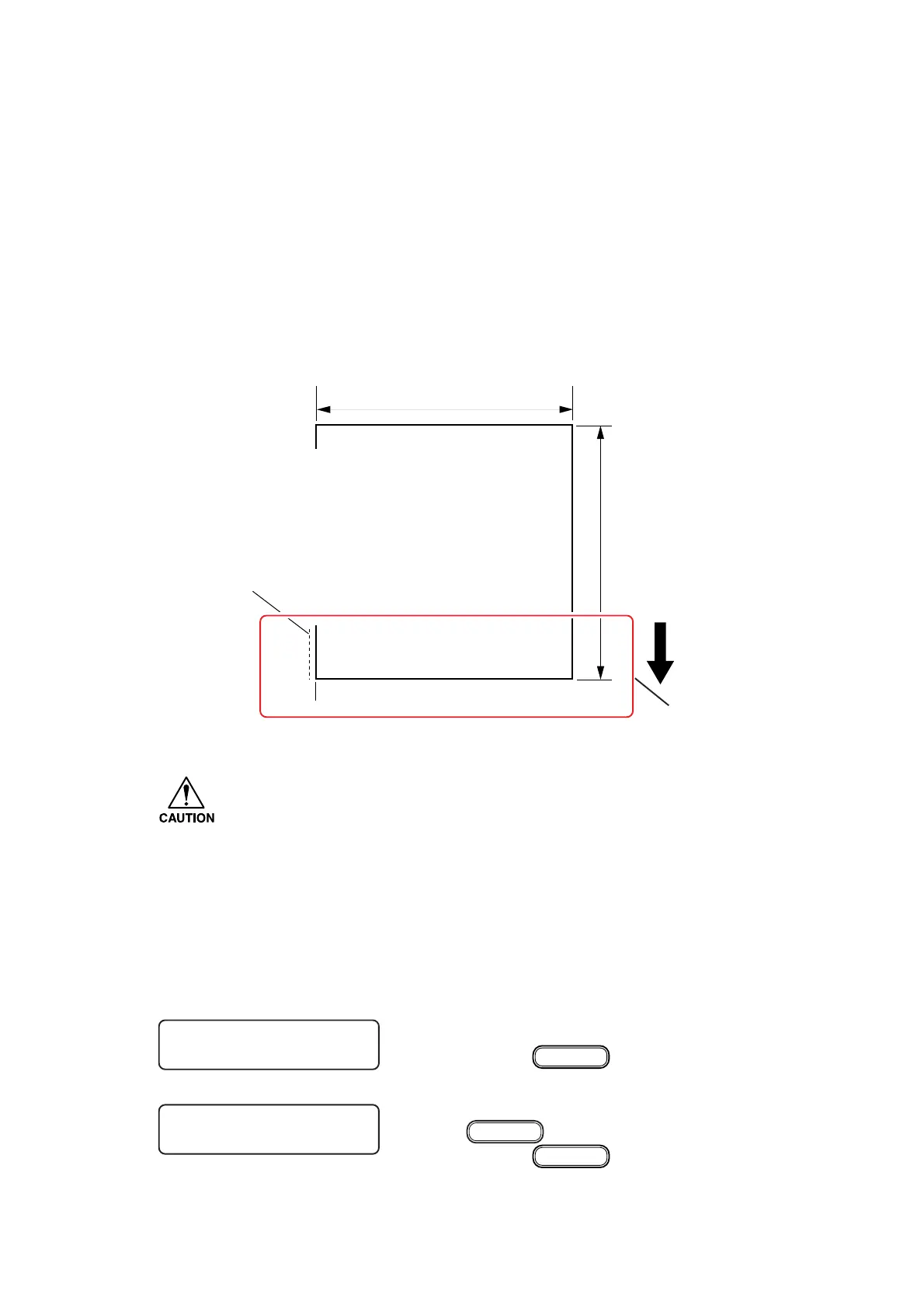

• The measured value in the Y direction becomes the b position when the distance
a – a’ in the above diagram is taken to be 500 mm.
Adjust to eliminate overlap with a’ and b.
Larger number than [500] is input when a’ and b set at figure.
• In this adjustment, the actual measurement is entered, but the value found from
the following formula is stored under the system parameter.
Adjustment value = 500 mm – Actual measurement (mm) (stored in units of 0.1 mm)
[Operation]
1) Select the “ADJUSTMENT.
Press the
ENTER
key.
2) Select the “500mmSQUARE” pressing the
FUNCTION
key.
Press the
ENTER
key.
500mm
500mm
Flashing b
a
a’
Medium
feeding
direction
FUNCTION
# ADJUST < ENT >
# ADJUST
500mmSQUARE < ent >
Part to use for [500mm
SQUARE].
To Next Page
